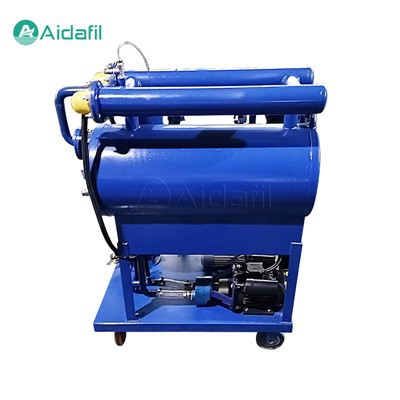

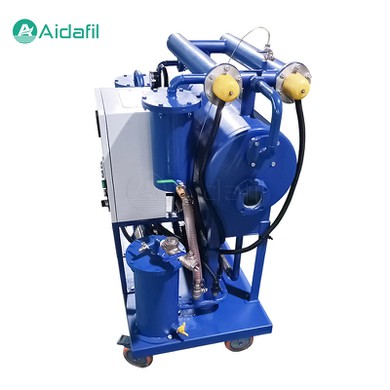

Mobile Vacuum Dehydration Oil Purifier For Removing Impurity And Water

The mobile vacuum dehydration oil purifier for removing impurity and water is specifically designed to remove impurities and water from various types of oils, ensuring enhanced quality and performance. By utilizing vacuum dehydration techniques, this purifier offers a highly efficient, portable, and versatile solution for oil refineries, industrial facilities, and other sectors dealing with oil processing.



The mobile vacuum dehydration oil purifier comes with a user-friendly interface that allows users to easily operate and monitor the purification process. The interface displays essential information such as oil temperature, pressure, and filtration status. The vacuum dehydration technology used in the mobile vacuum dehydration oil purifier enables efficient removal of water from the oil.



Product parameters

Flow rate - L/min	25 - 200
Working pressure - Mpa	0.6
Rated vacuum - Mpa	≤ - 0.095
Water content - ppm	5 - 30
Air content	≤0.2%
Coarse filtration - μm	100
Grade 1 filter rating - μm	10,20
Grade 2 filter rating - μm	3,5
Pressure differentials - MPa	0.2Mpa
Voltage	AC 380V (Three-phase),50Hz
Weight - kg	360 - 1500
Motor power - kw	18 - 135



Working Principles

The mobile vacuum dehydration oil purifier operates on the principle of vacuum dehydration and filtration. The process can be summarized in the following steps:

1. Oil inlet. The contaminated oil is introduced into the purifier through an inlet, where it enters the dehydration and filtration system.

2. Vacuum dehydration. The oil is subjected to a vacuum environment, which reduces the boiling point of water and causes it to evaporate. This process effectively removes both free and dissolved water from the oil.

3. Filtration. The oil passes through a series of filters, which remove solid impurities and other contaminants.

4. Oil outlet. The purified oil is then discharged through an outlet, ready for reuse or further processing.



Key Features

1. Portability. The modular design of the mobile vacuum dehydration oil purifier allows for easy transportability, making it suitable for both fixed installations and temporary applications at different locations.

2. High efficiency. The vacuum dehydration technique ensures high efficiency in removing water and impurities, resulting in improved oil quality and performance.

3. Versatility. The purifier is capable of handling various types of oils, including crude oil, lubricants, hydraulic oils, and others, making it a versatile solution for diverse applications.

4. Energy-efficient. The optimized heating system and vacuum technology minimize energy consumption, making the purifier an eco-friendly choice.

5. User-friendly operation. The purifier's control system is designed to be intuitive and user-friendly, ensuring seamless operation and maintenance.

6. Safety. The purifier incorporates multiple safety features, such as pressure relief valves and temperature sensors, to prevent overheating and ensure safe operation.



Applications

The mobile vacuum dehydration oil purifier finds applications in various industries, including:

1. Power generation. In power plants and other energy production facilities, the mobile vacuum dehydration oil purifier can be used to maintain the quality of transformer oils, ensuring optimal electrical insulation and heat dissipation properties.

2. Manufacturing. The mobile vacuum dehydration oil purifier can be employed in manufacturing facilities to purify hydraulic oils, compressor oils, and other lubricants, extending their service life and reducing maintenance costs.

3. Transportation. The mobile vacuum dehydration oil purifier can be used in the transportation industry to clean and maintain engine oils, transmission fluids, and other lubricants, improving the overall performance and reliability of vehicles and equipment.

4. Oilfield services. In the oil and gas industry, the mobile vacuum dehydration oil purifier can be used to treat drilling muds, completion fluids, and produced waters, ensuring the efficient operation of drilling equipment and reducing the risk of equipment failure.



FAQ

1. What is an oil purifier, and how does it work?

An oil purifier is a device designed to remove impurities and contaminants from used oil, making it suitable for reuse or safe disposal. It works by passing the oil through various filtering elements, which trap the particles and impurities while allowing clean oil to pass through.

2. What types of oils can be filtered using an oil purifier?

Oil purifiers can be used to filter various types of oils, including the transformer oil, turbine oil, lubricating oil, hydraulic oil.

3. Can I dispose of the filtered oil safely?

Yes, once the oil has been filtered, it can be disposed of safely, provided that it meets the local regulations and guidelines for waste oil disposal. Be sure to check with your local authorities or waste management companies to determine the proper procedures for disposing of filtered oil in your area.

4. Is it cost-effective to invest in an oil purifier?

Investing in an oil purifier can be cost-effective in the long run, as it allows you to reuse filtered oil, reducing the need for frequent oil changes and the associated costs. Moreover, maintaining clean oil helps extend the life of equipment and reduces the likelihood of costly repairs due to premature wear and tear.
