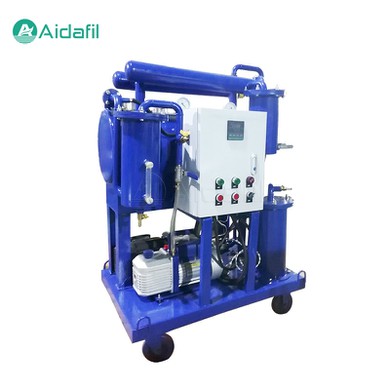

Lube Oil Vacuum Dehydration Oil Purification System

The lube oil vacuum dehydration oil purification system is a specialized piece of equipment used to remove contaminants and impurities from lubricating oils. It achieves this by creating a vacuum environment that facilitates the removal of water and other volatile components, followed by filtration to eliminate solid particles. The cleaned oil is then collected for reuse, promoting recycling and reducing waste. The system can process large volumes of oil continuously and includes monitoring and control features to ensure quality standards are met.



Understanding the Importance of Lubricating Oil

Lubricating oil serves as a protective barrier between moving parts, reducing friction and wear. As machinery operates, however, it can ingest dust, metal particles, and water, which find their way into the oil. This contamination can lead to increased friction, accelerated wear, and potential damage to the machinery. Therefore, regular oil purification and dehydration are essential to maintain the integrity of the lubricating oil and, in turn, the machinery itself.



Design and Components of the Lube Oil Vacuum Dehydration Oil Purification System

The lube oil vacuum dehydration oil purification system is designed to remove moisture, air, and other contaminants from lubricating oils. It typically consists of several key components: a vacuum tower, a heater, a condenser, a separator, and a vacuum pump. The oil purification system operates under reduced pressure, created by the vacuum pump, which facilitates the removal of unwanted elements.



The vacuum tower is the heart of the system, where the oil is subjected to reduced pressure and heated to facilitate the evaporation of moisture and gases. The heater, usually a coil or a plate, transfers heat to the oil, maintaining it at the required temperature for efficient dehydration. The condenser cools down the vapors released during the dehydration process, allowing them to condense and be collected separately. The separator then separates the water and gases from the oil, while the vacuum pump maintains the low-pressure environment necessary for the system's operation.



Operation of the Lube Oil Vacuum Dehydration Oil Purification System

The operation of the lube oil vacuum dehydration oil purification system begins with the feeding of contaminated oil into the vacuum tower. As the oil passes through the heater, it reaches the desired temperature for dehydration. Under reduced pressure, moisture and gases within the oil begin to evaporate. These vapors are then carried to the condenser, where they cool down and condense into liquid form.



Simultaneously, the oil continues to flow through the vacuum tower, where it is further stripped of contaminants. The separator then comes into play, efficiently separating the water and gases from the oil. Finally, the purified oil is discharged from the system, while the condensed water and gases are collected for proper disposal.



Benefits of the Lube Oil Vacuum Dehydration Oil Purification System

The lube oil vacuum dehydration oil purification system offers several benefits, including:

1. Improved equipment performance. By removing water, sludge, and other contaminants, the oil purification system ensures that the lubricating oil remains in optimal condition, reducing friction and wear on the machinery's moving parts.

2. Extended equipment life. Regular oil purification and dehydration can help extend the lifespan of industrial machinery by reducing the risk of premature wear and damage.

3. Reduced maintenance costs. By preventing equipment failure and extending the life of the machinery, the oil purification system can help reduce overall maintenance costs.

4. Environmental benefits. The oil purification system helps reduce the amount of waste oil and contaminated lubricants that end up in landfills or waterways, contributing to a more sustainable environment.

5. Energy efficiency. The vacuum dehydration process removes water and other contaminants that can cause internal friction and drag, improving the overall energy efficiency of the machinery.



Applications in the Oil Industry

The lube oil vacuum dehydration oil purification system finds wide application in various sectors of the oil industry. It is commonly used in refineries for the purification of base oils and finished lubricants. In addition, it plays a pivotal role in the maintenance of machinery and equipment, where it ensures the longevity and optimal performance of lubricating oils.



Furthermore, the oil purification system is utilized in recycling programs aimed at reconditioning used lubricating oils for reuse. By effectively removing contaminants, the lube oil vacuum dehydration system helps restore the oil's properties, reducing the need for fresh oil production and contributing to environmental sustainability.



FAQ

1. What is an oil purifier, and how does it work?

An oil purifier is a device designed to remove impurities and contaminants from used oil, making it suitable for reuse or safe disposal. It works by passing the oil through various filtering elements, which trap the particles and impurities while allowing clean oil to pass through.

2. What types of oils can be filtered using an oil purifier?

Oil purifiers can be used to filter various types of oils, including the transformer oil, turbine oil, lubricating oil, hydraulic oil.

3. Can I dispose of the filtered oil safely?

Yes, once the oil has been filtered, it can be disposed of safely, provided that it meets the local regulations and guidelines for waste oil disposal. Be sure to check with your local authorities or waste management companies to determine the proper procedures for disposing of filtered oil in your area.

4. Is it cost-effective to invest in an oil purifier?

Investing in an oil purifier can be cost-effective in the long run, as it allows you to reuse filtered oil, reducing the need for frequent oil changes and the associated costs. Moreover, maintaining clean oil helps extend the life of equipment and reduces the likelihood of costly repairs due to premature wear and tear.
