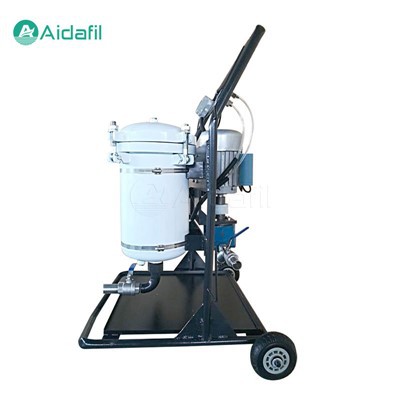

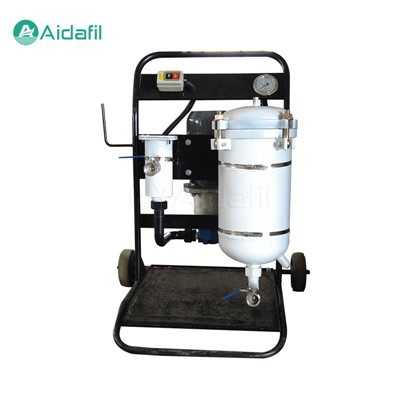

High-Viscosity Oil Filter Cart For Industrial Use

The primary purpose of the high-viscosity oil filter cart for industrial use is to remove impurities, moisture, and other contaminants from thick oils used in various industrial applications. By employing advanced filtration technology, this equipment effectively captures particles down to micron levels, maintaining oil cleanliness to industry standards.



Filtration Process

The filtration process in a high-viscosity oil filter cart for industrial use is relatively straightforward yet highly effective. As the oil enters the system, it first passes through the housing and into the filter cart. Here, the oil encounters the filtration media, which captures any solid particles, contaminants, or debris present in the oil.



Due to the increased surface area of the filtration media, a large volume of oil can be processed quickly, and the captured contaminants are held in place, preventing them from re-entering the oil stream. As the filtered oil exits the filter cart, it is significantly cleaner and safer for use within the machinery or vehicle's engine.



Key Components

1. Filtration system. The heart of the high-viscosity oil filter cart is its filtration system, which typically consists of high-quality filter elements designed to withstand the demands of filtering viscous oils. These elements utilize various filtration media, including cellulose, synthetic fibers, and metal mesh, to achieve optimal particle removal efficiency.

2. Pump and motor assembly. To facilitate the circulation of oil through the filtration system, the filter cart is equipped with a robust pump and motor assembly. This component provides the necessary flow rate and pressure to ensure thorough filtration and efficient oil cleaning.

3. Control panel. The control panel houses essential components such as switches, gauges, and indicators, allowing operators to monitor and control the filtration process effectively. It provides real-time feedback on key parameters such as oil flow rate, pressure differential across the filter elements, and system status, enabling proactive maintenance and troubleshooting.

4. Hoses and fittings. Flexible hoses and fittings connect the various components of the filter cart, allowing for easy movement and connection to oil reservoirs, machinery, and other equipment. These components are designed to withstand high-pressure and high-temperature conditions commonly encountered in industrial environments.



Main Parameters

Rated pressure : 0.6 Mpa

Coarse filter precision : 100 μm

Fine filter precision : 3, 5, 10 μm

Working temperature : 5~80 °C

Voltage : AC 380V (Three-phase) 50Hz

Recommended viscosity : 10~160 cSt



Applications

The high-viscosity oil filter cart for industrial use finds wide-ranging applications across various industries, including:

A. Manufacturing. Used in hydraulic systems, gearboxes, compressors, and other machinery to maintain oil cleanliness and performance.

B. Power generation. Employed in turbine lubrication systems, transformer cooling systems, and other critical equipment to ensure reliable operation and prevent downtime.

C. Mining and construction. Utilized in heavy-duty equipment such as excavators, bulldozers, and dump trucks to protect hydraulic systems and reduce maintenance costs.

D. Marine and offshore. Deployed in ship engines, thrusters, and hydraulic systems to withstand harsh marine environments and ensure continuous operation at sea.



Maintenance and Replacement

Proper maintenance of high-viscosity oil filter cart systems is essential for their continued effectiveness and longevity. Regular inspections should be performed to check for signs of wear, damage, or clogs in the filter element. If any issues are detected, the filter cart should be replaced promptly to avoid potential problems.



When replacing the filter cart, it is crucial to choose the correct size, type, and filtration rating for the specific application. Using an incompatible filter cart may result in reduced filtration efficiency or damage to the system. Additionally, it is recommended to change the oil regularly to minimize the amount of contaminants that the filter cart must capture.



FAQ

1. What is an oil purifier, and how does it work?

An oil purifier is a device designed to remove impurities and contaminants from used oil, making it suitable for reuse or safe disposal. It works by passing the oil through various filtering elements, which trap the particles and impurities while allowing clean oil to pass through.

2. What types of oils can be filtered using an oil purifier?

Oil purifiers can be used to filter various types of oils, including the transformer oil, turbine oil, lubricating oil, hydraulic oil.

3. Can I dispose of the filtered oil safely?

Yes, once the oil has been filtered, it can be disposed of safely, provided that it meets the local regulations and guidelines for waste oil disposal. Be sure to check with your local authorities or waste management companies to determine the proper procedures for disposing of filtered oil in your area.

4. Is it cost-effective to invest in an oil purifier?

Investing in an oil purifier can be cost-effective in the long run, as it allows you to reuse filtered oil, reducing the need for frequent oil changes and the associated costs. Moreover, maintaining clean oil helps extend the life of equipment and reduces the likelihood of costly repairs due to premature wear and tear.
