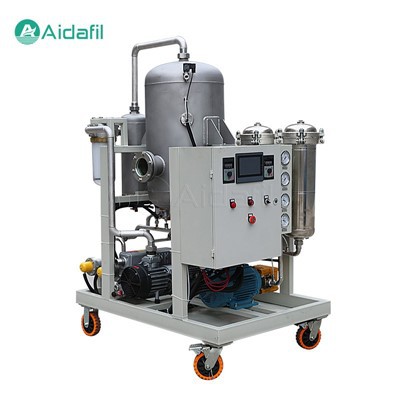

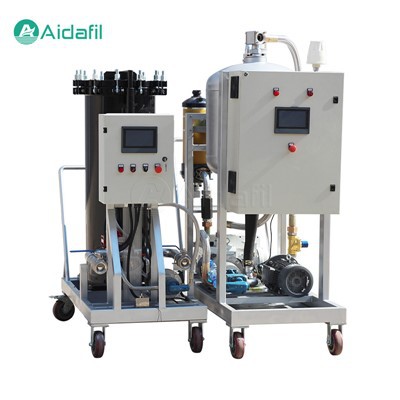

Good Performance Phosphate Ester Fire-Resistant Oil Purifier Machine

The good performance phosphate ester fire-resistant oil purifier machine is a vacuum oil purifier designed for phosphate ester fire-resistant oil system. It incorporates advanced dehydration and gas removal techniques, not only rapidly eliminating free water and gas from the oil but also extracting dissolved moisture and gases at a deeper level.



Technical Parameter List

Flow rate : 10, 20, 30 L/min

Vacuum range : -0.07 ~ -0.09 Mpa

Working pressure : ≤0.5 Mpa

Temperature range : 0-100 °C

Power supply : 50Hz 380V Three-phase

Acid value after filtration : ≤0.03 mg KOH/g

Water content after filtration : ≤100 ppm

Impurities after filtration : 1 μm

Cleanliness after filtration - NAS : ≤5



Functionality and Features

The advanced design of the good performance phosphate ester fire-resistant oil purifier machine incorporates a series of cutting-edge techniques aimed at enhancing the purity and performance of phosphate ester hydraulic fluids. Key features include:

1. Vacuum-based dehydration and degassing. Utilizing a multi-stage vacuum process, the oil purifier machine effectively removes both free and dissolved water and gases from the oil. This is achieved through a combination of techniques such as reverse sedimentation, precipitation separation, pressure difference analysis, vacuum retention, and flash vaporization.

2. Precision filtration. The use of novel composite materials in the construction of graded filter elements allows for the removal of contaminants on a microscopic level. These filter cores not only trap solid particles but also promote the adsorption of acidic byproducts, thus maintaining the pH balance of the fluid.

3. Adsorption and acid neutralization. The incorporation of advanced adsorbent materials within the filtration system enables the capture and degradation of oil-borne acids and sludge-like substances. This contributes to the prevention of new acid formation within the hydraulic system.

4. Corrosion resistance and durability. The entire machine is constructed using acid-resistant and corrosion-resistant stainless steel, ensuring a long service life and minimal maintenance requirements. The selection of compatible materials for filters and seals further enhances the integrity of the system.

5. User-friendly design. The compact and aesthetically pleasing design of the oil purifier machine offers easy operation and low noise levels. Its lightweight construction facilitates portability while maintaining robustness and reliability.



Applications and Benefits

High-performance phosphate ester fire-resistant oil purifier machine is widely applied to phosphate ester fire-resistant oil system and mechanical equipment across a wide range of industries, including aerospace, petrochemical, power generation, and manufacturing.



The benefits of employing these advanced filter systems are numerous:

- Enhanced safety. By reducing the risk of fire and explosion associated with hydraulic systems through the use of fire-resistant fluids.

- Increased operational efficiency. Through the removal of impurities and improved fluid performance, machinery experiences reduced wear and tear, resulting in fewer breakdowns and longer service intervals.

- Cost savings. Lower maintenance costs and extended fluid life contribute to a more cost-effective solution in the long run.

- Environmental protection. By promoting the use of environmentally friendly phosphate ester fluids and reducing fluid waste through efficient purification.



Maintenance and Care

To ensure the longevity and effectiveness of the good performance phosphate ester fire-resistant oil purifier machine, regular maintenance is essential. This includes routine cleaning of the filter elements, checking for any signs of wear or damage on the pump and other components, and ensuring that all settings are properly calibrated. Additionally, operators should follow the manufacturer's guidelines for replacing filter media and performing any necessary servicing.



FAQ

1. What is an oil purifier, and how does it work?

An oil purifier is a device designed to remove impurities and contaminants from used oil, making it suitable for reuse or safe disposal. It works by passing the oil through various filtering elements, which trap the particles and impurities while allowing clean oil to pass through.

2. What types of oils can be filtered using an oil purifier?

Oil purifiers can be used to filter various types of oils, including the transformer oil, turbine oil, lubricating oil, hydraulic oil.

3. Can I dispose of the filtered oil safely?

Yes, once the oil has been filtered, it can be disposed of safely, provided that it meets the local regulations and guidelines for waste oil disposal. Be sure to check with your local authorities or waste management companies to determine the proper procedures for disposing of filtered oil in your area.

4. Is it cost-effective to invest in an oil purifier?

Investing in an oil purifier can be cost-effective in the long run, as it allows you to reuse filtered oil, reducing the need for frequent oil changes and the associated costs. Moreover, maintaining clean oil helps extend the life of equipment and reduces the likelihood of costly repairs due to premature wear and tear.
