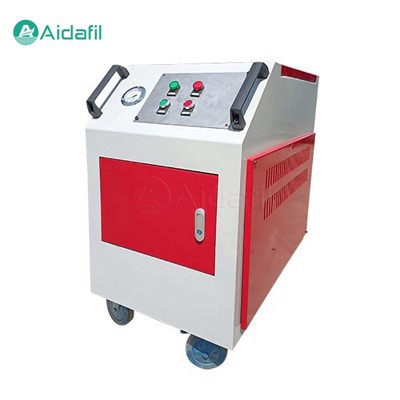

Easy-Operation Box Type Quenching Oil Purifier Machine

The easy-operation box type quenching oil purifier machine is a specialized piece of equipment designed to remove contaminants from quenching oils. It operates on the principle of filtration, utilizing advanced technology to separate impurities from the oil, thereby restoring its purity and performance. The machine's compact, box-like design makes it suitable for integration into various industrial settings, and its user-friendly interface ensures ease of operation for technicians.



In the realm of industrial manufacturing, quenching is a critical process that involves rapidly cooling heated metal parts to achieve desired material properties such as hardness and strength. Quenching oils play a pivotal role in this process, ensuring that the metal cools uniformly and efficiently. However, over time, these oils can become contaminated with debris, water, or other impurities, which can compromise their effectiveness and lead to inconsistent quenching results. This is where the easy-operation box type quenching oil purifier machine comes into play, offering a reliable and efficient solution for maintaining the quality of quenching oils.



Highlights

1. A refined shell is used to package all components to protect the equipment from external pollution, making the equipment especially suitable for the stage with high requirements for the use environment.

2. The thermal relay protection is adopted to prevent motor damage caused by motor overload.

3. The high-pressure pipeline is equipped with an overflow protection device, which can effectively protect the safety of the hydraulic system.

4. The panel is equipped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the filter element during operation.

5. The fine filter with different precision can be chosen based on the different needs of users to meet the required requirements.



Key parameters

Rated pressure (MPa) : 0.6

Coarse filter precision (μm) : 100

Fine filter precision (μm) : 3, 5, 10, 20

Differential pressure (MPa) : 0.2

Working temperature (°C) : 5-80

Recommended viscosity (cSt) : 10-160



Key Features of the Easy-Operation Box Type Quenching Oil Purifier Machine

1. Compact Design: The box-type design of the machine allows for a smaller footprint, making it ideal for use in spaces with limited room. Its compactness also facilitates easier installation and maintenance.

2. High Filtration Efficiency: The machine employs high-efficiency filtration systems that can remove even the smallest contaminants from the quenching oil, ensuring that the oil remains clean and free of impurities.

3. User-Friendly Interface: The machine is equipped with an intuitive control panel that simplifies operation. Technicians can easily adjust settings and monitor the purification process without requiring extensive training.

4. Automatic Operation: Many models of the easy-operation box type quenching oil purifier machine feature automatic operation, which means they can be programmed to run at specific times or intervals, reducing the need for manual intervention.

5. Energy Efficiency: These machines are designed to consume minimal energy, making them an environmentally friendly option for maintaining quenching oil quality.

6. Versatility: The machine can handle a wide range of quenching oils, including synthetic and mineral-based oils, making it a versatile solution for various industrial applications.

7. Safety Features: The machine is equipped with safety features such as overheat protection and leak detection, ensuring safe operation in industrial environments.



Benefits of Using the Easy-Operation Box Type Quenching Oil Purifier Machine

1. Improved Quenching Results: By maintaining the purity of quenching oils, the machine ensures more consistent and predictable quenching outcomes, leading to higher-quality finished products.

2. Extended Oil Life: Regular purification of quenching oils extends their lifespan, reducing the frequency of oil changes and associated costs.

3. Enhanced Safety: Contaminated quenching oils can pose safety risks, such as increased fire hazards or equipment damage. The purifier machine mitigates these risks by keeping the oil clean and free of hazardous contaminants.

4. Cost Savings: By extending the life of quenching oils and improving the efficiency of the quenching process, the machine can lead to significant cost savings over time.

5. Environmental Benefits: The machine reduces the amount of waste oil generated, contributing to a more sustainable and environmentally friendly manufacturing process.



Application

The easy-operation box type quenching oil purifier machine is widely used in various industries, including automotive, aerospace, and metalworking.



FAQ

1. What is an oil purifier, and how does it work?

An oil purifier is a device designed to remove impurities and contaminants from used oil, making it suitable for reuse or safe disposal. It works by passing the oil through various filtering elements, which trap the particles and impurities while allowing clean oil to pass through.

2. What types of oils can be filtered using an oil purifier?

Oil purifiers can be used to filter various types of oils, including the transformer oil, turbine oil, lubricating oil, hydraulic oil.

3. Can I dispose of the filtered oil safely?

Yes, once the oil has been filtered, it can be disposed of safely, provided that it meets the local regulations and guidelines for waste oil disposal. Be sure to check with your local authorities or waste management companies to determine the proper procedures for disposing of filtered oil in your area.

4. Is it cost-effective to invest in an oil purifier?

Investing in an oil purifier can be cost-effective in the long run, as it allows you to reuse filtered oil, reducing the need for frequent oil changes and the associated costs. Moreover, maintaining clean oil helps extend the life of equipment and reduces the likelihood of costly repairs due to premature wear and tear.
