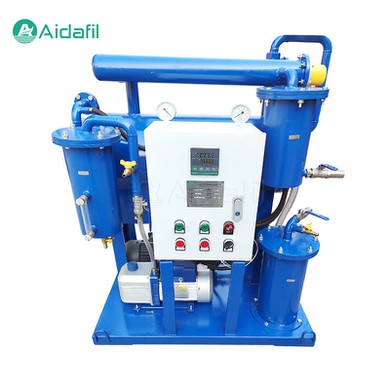

Hydraulic Oil High Efficiency Vacuum Oil Purifier

In modern industrial operations, the use of hydraulic oil is ubiquitous. From heavy machinery to small-scale equipment, hydraulic oil serves as the lifeblood of numerous machines that require lubrication, cooling, and efficient power transmission. However, with continuous use, hydraulic oil can become contaminated with impurities, leading to reduced performance and potential damage to machinery. To address this issue, the hydraulic oil high efficiency vacuum oil purifier has emerged as a critical tool for maintaining the integrity and functionality of hydraulic systems.



The hydraulic oil high efficiency vacuum oil purifier is designed to remove moisture, gases from hydraulic oils, as well as other types of lubricating oils. Its advanced filtration technology allows for the removal of particles as small as 3 microns, ensuring that the oil remains clean and free of contaminants that can cause system failures or decreased performance.



How It Works

The hydraulic oil high efficiency vacuum oil purifier operates on a principle that utilizes a combination of vacuum and filtration technologies. The process begins with the contaminated hydraulic oil being pumped into the purifier, where it is subjected to a high vacuum environment. This vacuum environment reduces the boiling point of the oil, causing any water or vapor present to evaporate and be removed. The vacuum also helps to break the molecular bonds between the oil and any trapped air, allowing for the release of additional contaminants.

Once the oil has been treated with the vacuum process, it moves on to the filtration stage. Here, the oil is passed through a series of high-efficiency filters that capture any remaining solid contaminants, such as dirt, rust, or metal shavings. These filters have a high dirt holding capacity, ensuring that the oil is thoroughly cleaned before it is returned to the system.



Product parameters

Flow rate : 25 - 200 L/min

Working pressure : 0.6 Mpa

Rated vacuum : ≤ - 0.095 Mpa

Water content : 5 - 30 ppm

Air content : ≤ 0.2%

Coarse filtration accuracy : 100 μm

Grade 1 filter rating : 10μm, 20μm

Grade 2 filter rating : 3μm, 5μm

Pressure differentials : 0.2Mpa

Voltage : AC 380V Three-phase 50Hz

Motor power : 18 - 135 kw

Weight : 360 - 1500 kg



Advantages

One of the key advantages of using a hydraulic oil high-efficiency vacuum oil purifier is its ability to remove even the smallest impurities from the oil. This is achieved through the use of highly specialized filters that can trap particles down to micron in size. Additionally, the vacuum filtration process ensures that water and other contaminants that may be present in the oil are also removed, preventing the formation of corrosive acids that can damage the hydraulic system.

Another significant benefit of using a hydraulic oil high-efficiency vacuum oil purifier is its ability to extend the lifespan of hydraulic oil. By removing impurities and contaminants from the oil, the purifier helps to maintain the oil's chemical and physical properties, ensuring that it continues to provide optimal lubrication and cooling for the hydraulic system. This not only enhances the performance of the machinery but also reduces maintenance costs associated with frequent oil changes and repairs.

In addition to these benefits, the hydraulic oil high-efficiency vacuum oil purifier is also designed to be user-friendly and efficient in its operation. It comes equipped with intuitive control panels that allow users to adjust settings such as temperature, pressure, and filtration rates according to their specific needs.

Maintenance and upkeep of the hydraulic oil high efficiency vacuum oil purifier are also straightforward. Regular filter replacements and minor adjustments can be performed by trained personnel, ensuring the machine's long-term reliability and performance.



Product application fields

The hydraulic oil high efficiency vacuum oil purifier is suitable for use in a wide range of industries and applications, including the manufacturing facilities, construction sites, transportation, power generation, etc.



FAQ

1. What is an oil purifier, and how does it work?

An oil purifier is a device designed to remove impurities and contaminants from used oil, making it suitable for reuse or safe disposal. It works by passing the oil through various filtering elements, which trap the particles and impurities while allowing clean oil to pass through.

2. What types of oils can be filtered using an oil purifier?

Oil purifiers can be used to filter various types of oils, including the transformer oil, turbine oil, lubricating oil, hydraulic oil.

3. Can I dispose of the filtered oil safely?

Yes, once the oil has been filtered, it can be disposed of safely, provided that it meets the local regulations and guidelines for waste oil disposal. Be sure to check with your local authorities or waste management companies to determine the proper procedures for disposing of filtered oil in your area.

4. Is it cost-effective to invest in an oil purifier?

Investing in an oil purifier can be cost-effective in the long run, as it allows you to reuse filtered oil, reducing the need for frequent oil changes and the associated costs. Moreover, maintaining clean oil helps extend the life of equipment and reduces the likelihood of costly repairs due to premature wear and tear.
