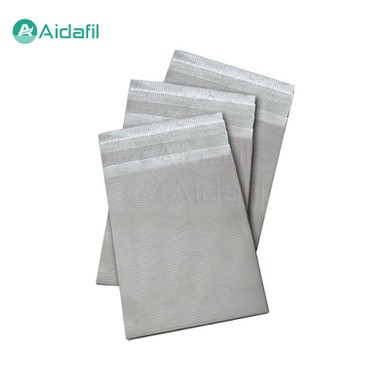

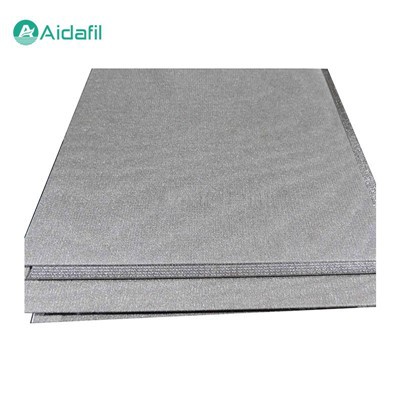

Various Fields Use Standard Five-Layer Sintered Mesh

The various fields use standard five-layer sintered mesh is an advanced industrial filter material. Due to its unique structural design and material characteristics, it is widely used in many fields, such as chemical industry, medical treatment, food processing, etc. This sintered mesh combines multiple layers of wire mesh through a special production process to form a filter medium with excellent performance.



The various fields use standard five-layer sintered mesh is usually composed of five layers of metal wire mesh with different wire diameters. Common materials include stainless steel, aluminum alloy, etc. Its structure from top to bottom is protective layer, filter layer, separation layer, reinforcement layer and reinforcement layer. Such a structure not only enhances the mechanical strength of the sintered mesh, but also ensures excellent filtration effect and long service life. The filter layer located in the center is the core part of the sintered mesh. Its micron-level pore size can effectively intercept tiny particles and ensure the purity of the fluid.



Process characteristics

The production process of the various fields use standard five-layer sintered mesh is special. First, it is necessary to select the appropriate wire material, arrange the wire mesh according to the predetermined layer and wire diameter through precise equipment, and then combine the multi-layer wire mesh into one through high-temperature sintering technology. Temperature control and atmosphere adjustment during the sintering process are crucial, which directly affects the porosity, mechanical strength and corrosion resistance of the sintered mesh.



The sintering process not only improves the stability of the structure, but also optimizes the filtration performance of the material. The high temperature treatment during the sintering process reduces the oxides on the surface of the wire mesh, thereby improving the overall corrosion resistance and surface finish.



Parameters

Model number	Nominal precision (μm)	Absolute precision (μm)	Gases permeability (L/min · dm2 · kPa)	Bubbling pressure (pa)
ADBSW1	1	6-7	180	5300-6000
ADBSW2	2	8-9	240	4300-5000
ADBSW5	5	11-13	260	3000-3700
ADBSW10	10	16-18	310	2700-3300
ADBSW15	15	24-26	350	2000-2600
ADBSW20	20	28-32	450	1800-2300
ADBSW25	25	34-36	620	1400-1900
ADBSW30	30	40-45	690	1200-1700
ADBSW40	40	50-55	720	1000-1500
ADBSW50	50	71-80	850	900-1200
ADBSW70	70	89-95	900	700-1100
ADBSW100	100	110-120	1080	650-1000
ADBSW150	150	180-200	2600	550-800
ADBSW200	200	260-280	2800	450-600



Performance advantages

1. High-precision filtration

The filtration accuracy of the standard five-layer sintered mesh can reach the micron level, which can effectively intercept solid particles and liquid impurities larger than the pore size.

2. High strength and pressure resistance

The multi-layer structure and high-quality metal materials endow the sintered mesh with extremely high mechanical strength, enabling it to work stably in high-pressure environments.

3. Excellent corrosion resistance

The standard five-layer sintered mesh made of stainless steel can maintain its performance in an acid-alkali environment and is suitable for a variety of chemical treatment processes.

4. High temperature resistance

The high temperature treatment during the production process ensures the stable operation of the sintered mesh in a high temperature environment.

5. Easy to clean and maintain

The surface and internal channels of the sintered mesh are smooth, making it easy to clean and backwash during use.



Application field

The various fields use standard five-layer sintered mesh is widely used in a variety of industrial fields due to its excellent performance.

1. Chemical and petroleum industry

In the process of chemical production and petroleum refining, it is used for precise filtration of fluids to ensure product purity.

2. Food processing

In the production of beverages and food, it is used to filter raw material liquids to ensure food safety and hygiene.

3. Pharmaceutical industry

In the production of medicines, it is used to filter the raw material liquid to remove insoluble impurities.

4. Environmental protection

In wastewater treatment and waste gas treatment, it is used to capture solid waste and harmful particles.

5. Electronics and semiconductors

In the electronics manufacturing process, it is used to filter chemicals and clean the surface of semiconductor materials.



Technological innovation and development trends

In the face of changing market demand, the production technology of standard five-layer sintering mesh is also constantly innovating. Future development directions include:

1. Diversification of materials. In order to meet the application requirements of special industries, sintered mesh of different materials, such as titanium alloys and superalloys, are developed.

2. Precise aperture control. By improving the production process, more accurate aperture control can be achieved to meet the needs of finer filtration.

3. Surface functionalization. Develop sintered mesh surfaces with special functions such as catalysis and antibacterial, and expand their application in high-tech fields.

4. Composite structure design. Combining different materials and technologies to design more complex and efficient sintered mesh structures.
