Strong Effective Perforated Plate Composite Sintered Mesh

The strong effective perforated plate composite sintered mesh is a filter material formed by sintering a perforated plate and a flat-woven mesh at the base layer. It has high compressive strength and mechanical strength, as well as the characteristics of high flow and easy cleaning. This material can be vacuum sintered through a special combination of perforated plate and wire mesh according to different pressure and filtration accuracy requirements.



Structure and features

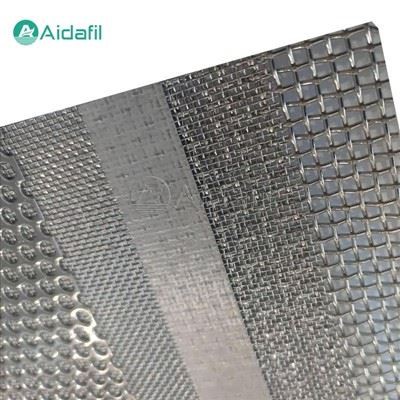

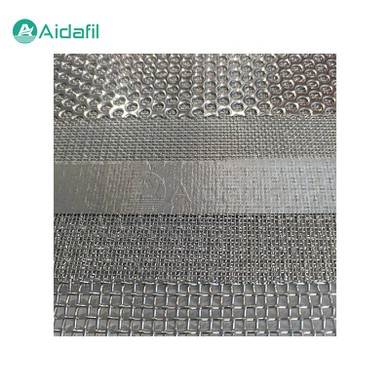

The basic structure of the strong effective perforated plate composite sintered mesh is composed of multiple layers of metal wire mesh and one or more layers of perforated plates alternately superimposed. During the sintering process, they are firmly combined by vacuum technology to form a filter medium with a complex three-dimensional network structure. This structure not only provides extremely high mechanical strength, but also ensures good filtration effect and fluid passage.

1. High strength

Due to the strong bond between the perforated plate and the wire mesh during the sintering process, the perforated plate composite sintered mesh has high compressive and tensile strength, capable of maintaining stable operation under high pressure and high load working conditions.

2. High filtering efficiency

The metal mesh layer can effectively capture particles of different sizes to achieve accurate filtration effect. At the same time, the design of the perforated plate allows large particles to pass directly, reducing the burden of the mesh layer and prolonging the service life of the filter material.

3. Easy to clean and maintain

The structure of the perforated plate composite sintered mesh allows backwashing, which can effectively remove impurities adhering to the surface and holes, and improve the service life and filtration efficiency of the filter material.

4. Corrosion resistance

Usually made of corrosion-resistant stainless steel, the perforated plate composite sintered mesh can resist a variety of acid and alkali environments and is suitable for the treatment of corrosive materials in the chemical, pharmaceutical and other industries.



Parameters

Nominal precision (μm)	Absolute precision (μm)	Gases permeability (L/min · dm2 · kPa)	Bubbling pressure (pa)
1	6-7	180	5300-6000
2	8-9	240	4300-5000
5	11-13	260	3000-3700
10	16-18	310	2700-3300
15	24-26	350	2000-2600
20	28-32	450	1800-2300
25	34-36	620	1400-1900
30	40-45	690	1200-1700
40	50-55	720	1000-1500
50	71-80	850	900-1200
70	89-95	900	700-1100
100	110-120	1080	650-1000
150	180-200	2600	550-800
200	260-280	2800	450-600



Application field

1. Water treatment

In urban water supply, sewage treatment and other fields, the perforated plate composite sintered mesh can be used to remove suspended solids, sediments and other impurities in water to ensure water quality safety.

2. Chemical industry

In the chemical production process, the raw materials and products need to be finely filtered to ensure product quality. The perforated plate composite sintered mesh can effectively filter the tiny particles in the chemical solution.

3. Petrochemical

In petroleum refining and chemical production, the perforated plate composite sintered mesh is used for oil-water separation, catalyst recovery, etc., which helps to improve product purity and reduce resource waste.

4. Metallurgical mining

In metal refining and ore processing, solid-liquid separation is a key step. The perforated plate composite sintered mesh can withstand high temperature and high concentration of corrosive materials.

5. Food industry

In the processing of food and beverages, such as beer, fruit juice, dairy products, etc., the perforated plates and composite sintered mesh is used to ensure product clarification and hygiene.



Manufacturing and selection

--- Manufacturing process

The manufacturing process of the strong effective perforated plate composite sintered mesh includes the following main steps:

1. Punching. Punching the sheet according to the design requirements to form the required pore size and distribution.

2. Layers. Stack perforated plates and wire mesh of different mesh numbers in a specific order.

3. Sintering. The stacked layers are placed in a vacuum sintering furnace and sintered at high temperature.

4. Forming. After sintering, the work in progress goes through cooling, shaping, cutting and other processes, and finally forms the desired shape and size of the perforated plate composite sintered mesh.



--- Selection principle

The following factors should be considered when selecting the appropriate perforated plate composite sintered mesh:

1. Filtration accuracy. Choose the appropriate combination of screen and perforated plate according to the particle size distribution of the material to be filtered.

2. Working pressure. Determine the thickness and structural strength of the product according to the working pressure of the system.

3. Corrosion resistance. Choose the appropriate material according to the chemical properties of the material.

4. Ease of cleaning. Consider whether the production process requires frequent cleaning and the ease of cleaning.
