Strong Corrosion Resistance Standard Five-Layer Sintered Wire Mesh

The strong corrosion resistance standard five-layer sintered wire mesh represents a highly efficient porous metal filter material made of five layers of metal wire mesh through a high-temperature sintering process. It has high filtration efficiency, good strength and wear resistance, and a wide range of applicability.



Structure and production process

1. Structural characteristics

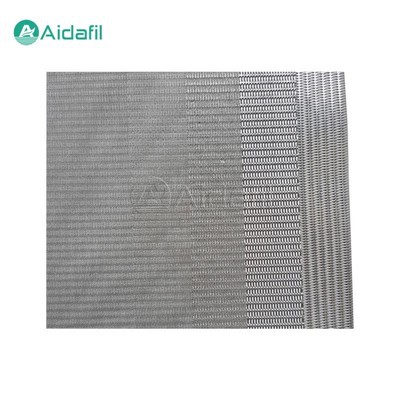

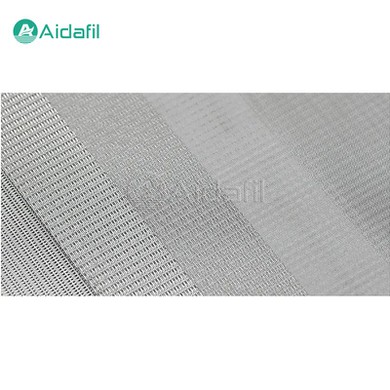

The strong corrosion resistance standard five-layer sintered wire mesh consists of five layers of metal wire mesh, and the thickness, pore size and wire diameter of each layer of metal wire mesh are precisely designed to achieve the ideal filtration effect. The combination of five layers of wire mesh can form a multi-level filtration mechanism to effectively capture particles of different sizes.

2. Production process

The production process of standard five-layer sintered wire mesh mainly includes three steps: wire mesh weaving, lamination and sintering. First, the metal wire is woven into a mesh structure according to a certain pattern; then, multiple layers of metal wire mesh are laminated to make them tightly bonded together; finally, through the high-temperature sintering process, the bonding between the metal wire meshes is made stronger to form a solid porous structure.



Performance characteristics

1. High filtration efficiency

Due to its multi-layer structure, the strong corrosion resistance standard five-layer sintered wire mesh can effectively capture particles of different sizes, thereby achieving high filtration efficiency. Experiments have shown that the filtration efficiency of the five-layer sintered wire mesh can reach more than 99%, which is suitable for various stringent filtration requirements.

2. Good strength and wear resistance

The standard five-layer sintered wire mesh is made of metal wire mesh and has high strength and wear resistance. During the filtration process, even in the face of harsh conditions such as high pressure and high temperature, the five-layer sintered wire mesh can still maintain good filtration performance and is not easy to be damaged.

3. Corrosion resistance

The material and manufacturing process of the standard five-layer sintered wire mesh give it good corrosion resistance. Whether facing acidic, alkaline or saline environments, the five-layer sintered wire mesh can maintain stable filtration performance and is not easy to corrode and damage.

4. Suitable for a variety of media

The standard five-layer sintered wire mesh can be used to filter a variety of media such as gas, liquid and solid. Under different working conditions, the five-layer sintered wire mesh can play its excellent filtering effect.



Parameters

Model number	Nominal precision (μm)	Absolute precision (μm)	Gases permeability (L/min · dm2 · kPa)	Bubbling pressure (pa)
ADBSW1	1	6-7	180	5300-6000
ADBSW2	2	8-9	240	4300-5000
ADBSW5	5	11-13	260	3000-3700
ADBSW10	10	16-18	310	2700-3300
ADBSW15	15	24-26	350	2000-2600
ADBSW20	20	28-32	450	1800-2300
ADBSW25	25	34-36	620	1400-1900
ADBSW30	30	40-45	690	1200-1700
ADBSW40	40	50-55	720	1000-1500
ADBSW50	50	71-80	850	900-1200
ADBSW70	70	89-95	900	700-1100
ADBSW100	100	110-120	1080	650-1000
ADBSW150	150	180-200	2600	550-800
ADBSW200	200	260-280	2800	450-600



Application fields

The strong corrosion resistance standard five-layer sintered wire mesh is widely used in many industrial fields.

1. Gas Purification

In petrochemical, semiconductor manufacturing, air separation and other industrial gas treatment processes, five-layer sintered wire mesh is used to remove particulate matter and harmful components in the gas.

2. Air Filtration

In air compressors, respiratory protection equipment and other air treatment systems, five-layer sintered wire mesh is used to capture dust and particles in the air.

3. Liquid Filtration

In hydraulic systems, lubricating oil circulation and other liquid applications, five-layer sintered wire mesh is used to filter impurities in the liquid to protect the system from contamination.

4. Food and Beverage Industry

In food processing and beverage production, five-layer sintered wire mesh is used to filter emulsions, juices, seasonings, etc. to ensure product quality and food safety.

5. Pharmaceutical Industry

In the pharmaceutical process, five-layer sintered wire mesh is used to filter powders, suspensions, etc. to ensure the purity and quality of drugs.

6. Water Treatment

In water treatment and sewage treatment, five-layer sintered wire mesh is used to remove suspended matter and particulate matter in water and improve water quality.

7. Laboratory and Medical Equipment

In laboratory analysis equipment and medical equipment, five-layer sintered wire mesh is used to filter particles in samples and solutions.
