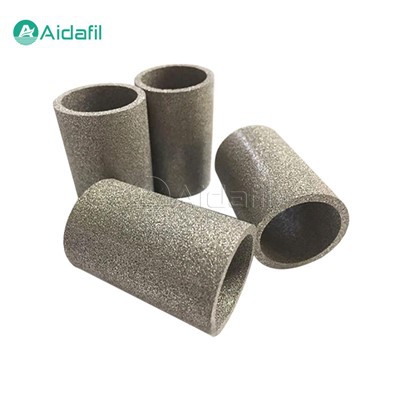

Small Filtration Resistance Titanium Powder Sintered Filter Tube

The small filtration resistance titanium powder sintered filter tube is a new type of high -efficiency porous filtration material. It is characterized by uniform pore size, stable pore shape and high separation efficiency. It boasts high porosity, small filtration resistance and high penetration efficiency.



Main performance

- Uniform pore size, stable pore shape, high separation efficiency

- High porosity, low filtration resistance, high penetration efficiency

- High temperature resistance

- Good chemical stability, acid and alkali corrosion resistance, and antioxidant performance

- No particle shedding, no secondary pollution of the original liquid, in line with food hygiene and pharmaceutical GMP requirements

- Good mechanical properties, low pressure difference, large flow rate

- Strong antimicrobial ability, no reaction with microorganisms

- Can be regenerated online, easy to clean, long service life

- Good molding process, the overall non-welding length can reach 1000 mm

- Non-magnetic and non-toxic



Material properties

Titanium is a metal with excellent performance, with high strength, low density, good corrosion resistance and biocompatibility. When titanium is made into powder and sintered, the small filtration resistance titanium powder sintered filter tube has the following outstanding material properties:

1. High strength and high hardness

After sintering, the titanium powder forms a strong bond between the particles, which makes the filter tube have high strength and hardness, can withstand greater pressure and mechanical shock, and maintain structural stability in harsh working environments.

2. Excellent corrosion resistance

Titanium exhibits excellent corrosion resistance in most acid, alkali and salt solutions, and can maintain good stability even in high temperature and strong corrosive media. This enables titanium powder sintered filter tubes to operate reliably for a long time in corrosive environments such as the chemical industry and petrochemical industry.

3. Good high temperature performance

Titanium has a high melting point and good high temperature strength. Titanium powder sintered filter tubes can work normally in high temperature environments (up to 500°C or above), and are suitable for high temperature conditions such as high temperature gas filtration and high temperature liquid filtration.

4. Low specific gravity

The specific gravity of titanium is relatively low, which makes the titanium powder sintered filter tube lighter in the same volume, easy to install and maintain, and reduces the overall weight and operating cost of the equipment.

5. Good biocompatibility

Since titanium has good compatibility with human tissue, titanium powder sintered filter tubes are also used in biopharmaceuticals, medical devices and other fields, and will not have adverse effects on the human body.



Parameters

Value of particles blocked in liquid		Permeability (no less than)
Filtration efficiency (98%)	Filtration efficiency (99.9%)	Permeability (10-12m2)	Relative permeability	MPa
1	3	0.05	5	3
3	5	0.08	8	3
5	10	0.3	30	3
10	14	0.8	80	3
15	20	1.5	150	3
20	32	2	200	3
35	52	4	400	2.5
60	85	6	600	2.5
80	124	10	1000	2.5



Application fields

1. Chemical industry

In the chemical industry, it is used to filter various chemical raw materials, intermediates and finished products, such as acids, alkalis, salt solutions, organic solvents, etc., to remove impurity particles and suspended matter, to ensure product quality and smooth production process.

2. Petrochemical industry

In the field of petrochemical industry, it is used for filtering, separating and purifying crude oil, as well as filtering in the processes of hydrorefining and catalytic cracking of petroleum products, to improve oil quality and protect downstream equipment.

3. Pharmaceutical industry

In pharmaceutical production, it is used for filtering, sterilizing and removing pyrogens from drug liquids to ensure the purity and safety of drugs.

4. Food and Beverage Industry

It is used for filtering, clarifying and sterilizing food and beverages, such as removing impurities and microorganisms in the production process of wine, juice, dairy products, etc., and improving the quality and stability of products.

5. Environmental Protection

In environmental protection projects such as sewage treatment and waste gas purification, it is used to remove suspended matter, organic matter and heavy metal ions in wastewater, as well as dust and harmful gases in waste gas, to meet environmental emission standards.

6. Electronics Industry

In the electronics industry, it is used for the preparation of ultrapure water, filtration of chemical liquids in the chip manufacturing process, etc., to ensure the production quality of electronic components.

7. Aerospace

Due to its excellent performance, it is also used in the aerospace field, such as filtration of aircraft engine fuel, filtration of hydraulic systems, etc., to ensure the safe operation of aircraft.
