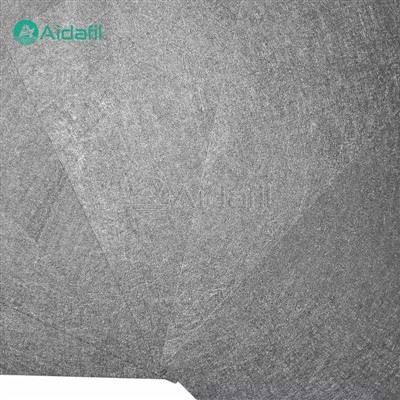

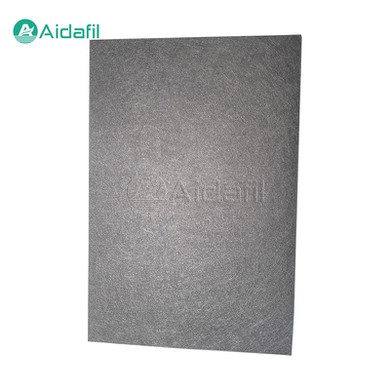

Industrial Customized Sintered Titanium Fiber Felt

The Industrial Customized Sintered Titanium Fiber Felt is a porous material made of titanium metal fiber through a special process. Titanium metal itself has extremely strong corrosion resistance and can remain stable in a variety of acid, alkali and salt solutions. Therefore, sintered titanium fiber felt is suitable for highly corrosive environments, such as chemical industry, marine engineering and other fields. Due to its unique fiber structure and porosity, sintered titanium fiber felt can be used for precise filtration of liquids or gases, effectively removing tiny particles, and has high filtration efficiency and long service life.



Sintered titanium fiber felt has a wide range of applications, including but not limited to chemical filtration, water treatment, air purification, high-temperature gas filtration, biomedicine, aerospace and some high-end manufacturing fields.



Material Properties

The industrial customized sintered titanium fiber felt boasts a series of excellent physical and chemical properties.

1. Corrosion resistance

In the natural environment, a dense oxide film will quickly form on the surface of titanium to prevent further oxidation reactions, thereby showing extremely high corrosion resistance in various extreme environments such as strong acids, strong alkalis, and salt water.

2. High strength and low density

The strength of titanium is similar to that of stainless steel, but its density is only about 60% of that of stainless steel, which allows sintered titanium fiber felt to provide sufficient mechanical support while maintaining its lightweight characteristics.

3. Porosity and filtration performance

The gaps between fibers and the microporous structure formed during the sintering process give it good air permeability and filtration efficiency, making it particularly suitable for precision filtration applications.

4. Thermal stability and thermal conductivity

Titanium can withstand high operating temperatures without significant performance changes, and has good thermal conductivity, making it suitable for use as a heat exchange medium or high-temperature filtration material.

5. Biocompatibility

Titanium materials have no toxic side effects on the human body and will not cause immune rejection reactions. They are one of the indispensable materials in the biomedical field.



Parameters

High porosity	60-70%
Thickness	0.25, 0.40, 0.6, 0.8mm
Average diameter equivalent	30-60μm
Size	5x5 cm, 10x10 cm and 20x20 cm It can be customized.



Low porosity	50-60%
Thickness	0.25, 0.40, 0.6, 0.8mm
Average diameter equivalent	30-60μm
Size	5x5 cm, 10x10 cm and 20x20 cm It can be customized.



Application

The industrial customized sintered titanium fiber felt plays an important role in many fields.

1. Chemical and petrochemical industries

As a high-efficiency filter medium, it is used to treat corrosive or high-temperature gases and liquids, effectively remove impurities, and extend the life of equipment.

2. Water treatment technology

In seawater desalination and industrial wastewater treatment, its high corrosion resistance and filtration accuracy are used to achieve efficient purification.

3. Air purification

In semiconductor, pharmaceutical, food and other industries, it is used to capture tiny particles and microorganisms to maintain a high cleanliness of the production environment.

4. Biomedicine

As a wrapping material for implants or a component of artificial organs, it uses its biocompatibility and good mechanical properties.

5. Energy and environmental protection

In fuel cells and solar thermal utilization systems, it is used as a heat exchange medium or gas separation membrane to improve energy conversion efficiency.

6. Aerospace

Due to its light weight, high strength and high temperature resistance, it is used in engine components, thermal insulation materials, etc.



Preparation Process

The production process of the industrial customized sintered titanium fiber felt involves multiple precise steps, mainly including raw material selection, fiber preparation, structural molding, sintering treatment and post-processing.

1. Raw material selection and fiber preparation. Select titanium raw materials with high purity and few impurities, and make continuous titanium fibers through smelting, wire drawing and other processes. The fiber diameter and length can be customized according to the needs of the final product.

2. Structural forming. The titanium fibers are arranged into the required three-dimensional structure by weaving, non-woven fabric laying or other methods. This process directly affects the porosity, strength and filtration accuracy of the finished product.

3. Sintering treatment. The formed fiber structure is heated to a certain temperature in a vacuum or protective atmosphere to allow metallurgical bonding between the fibers to form a stable porous structure. Sintering conditions (such as temperature, time, and pressure) need to be precisely controlled to achieve an ideal performance balance.

4. Post-processing. Including steps such as cleaning and surface treatment to remove impurities that may be generated during the sintering process, and adjust the surface properties according to application requirements, such as increasing hydrophilicity or hydrophobicity.
