Heat Resistance Five Layer Sintered Wire Mesh For Uniform Stable Filtration

The Heat Resistance Five Layer Sintered Wire Mesh For Uniform Stable Filtration is a filter material made of five layers of stainless steel wire mesh stacked together according to a specific structure and made by sintering, pressing, rolling and other processes. It usually consists of a protective layer, a filter layer, a dispersion layer and two skeleton layers. This structure makes the heat resistance five-layer sintered wire mesh have high strength and rigidity, and is suitable for occasions requiring high compressive strength and uniform filtration accuracy.



Structure and characteristics

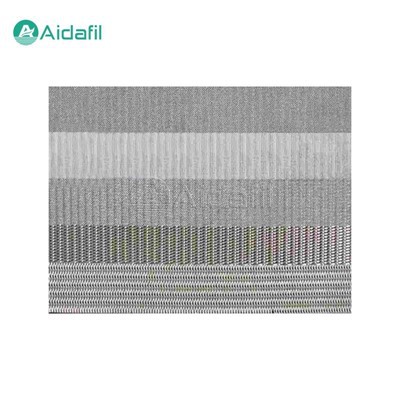

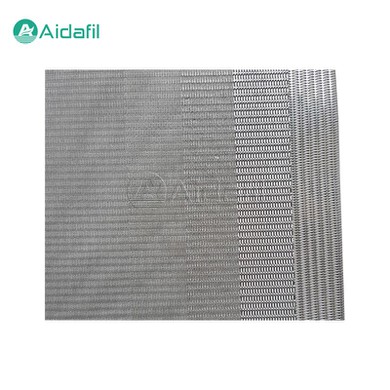

The structure of the Heat Resistance Five Layer Sintered Wire Mesh For Uniform Stable Filtration usually includes a protective layer, a filter layer, a dispersion layer, and two skeleton layers. The layers are tightly combined through mutual melting and diffusion between metals to form a solid whole. This structure gives the heat resistance five-layer sintered wire mesh the following characteristics:

1. High strength and high rigidity

Due to the multi-layer structure and special process treatment, the five-layer sintered wire mesh can withstand large pressure differences and mechanical stresses, and is suitable for high pressure and high flow rate conditions.

2. Accurate filtration

The filtration accuracy of the five-layer sintered wire mesh mainly depends on the pore size of the woven mesh on the surface layer. Since its filtration mechanism is surface filtration, the filtration effect is stable and uniform.

3. Good corrosion resistance and heat resistance

The five-layer sintered wire mesh is usually made of corrosion-resistant stainless steel materials, such as SUS316L and 304, so that it can be used for a long time in acid and alkali environments, and can withstand high operating temperatures.

4. Easy to process and clean

The structure of the five-layer sintered wire mesh makes it easy to cut, shape and clean. It can be easily used in various filtering equipment and can be reused.

5. Long service life

Due to its stable structure and high wear resistance, the five-layer sintered wire mesh can be used for a long time without frequent replacement under correct use and maintenance.



Parameters

Model number	Nominal precision (μm)	Absolute precision (μm)	Gases permeability (L/min · dm2 · kPa)	Bubbling pressure (pa)
ADBSW1	1	6-7	180	5300-6000
ADBSW2	2	8-9	240	4300-5000
ADBSW5	5	11-13	260	3000-3700
ADBSW10	10	16-18	310	2700-3300
ADBSW15	15	24-26	350	2000-2600
ADBSW20	20	28-32	450	1800-2300
ADBSW25	25	34-36	620	1400-1900
ADBSW30	30	40-45	690	1200-1700
ADBSW40	40	50-55	720	1000-1500
ADBSW50	50	71-80	850	900-1200
ADBSW70	70	89-95	900	700-1100
ADBSW100	100	110-120	1080	650-1000
ADBSW150	150	180-200	2600	550-800
ADBSW200	200	260-280	2800	450-600



Application

Due to its excellent filtering performance and corrosion resistance, the Heat Resistance Five Layer Sintered Wire Mesh For Uniform Stable Filtration can be used in many industries and fields, mainly including:

1. Chemical industry

In the chemical industry, the heat resistance five-layer sintered wire mesh can be used to filter various chemical solutions, such as acids, alkalis and other corrosive chemicals to remove impurities and suspended matter.

2. Oil and gas industry

During the extraction, processing and transportation of oil and gas, the heat resistance five-layer sintered wire mesh can be used to separate and purify different oil products and gases.

3. Pharmaceutical field

The heat resistance five-layer sintered wire mesh is used in the pharmaceutical field to filter drug solutions and help produce pure and impurity-free drugs.

4. Food and beverage industry

During the food and beverage processing, the heat resistance five-layer sintered wire mesh can be used to filter food and beverage products such as juice, wine, and oil to ensure food safety and taste.

5. Water treatment

In municipal and industrial water treatment, the heat resistance five-layer sintered wire mesh can be used to filter suspended matter and solid particles in water sources to provide clean water sources.

6. Metallurgical industry

In the process of metal smelting and processing, the heat resistance five-layer sintered wire mesh can be used to filter metal solutions and improve metal purity.

7. Automobile manufacturing

In automobile manufacturing, the heat resistance five-layer sintered wire mesh can be used to filter paint and coatings to ensure the quality of car body coatings.

8. Energy industry

In the process of energy production and conversion, such as power plants, the heat resistance five-layer sintered wire mesh can be used to filter fuel and coolant.
