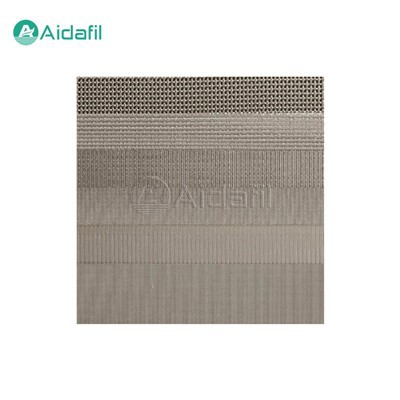

Durable Multi-Layer Stainless Steel Sintered Mesh

The durable multi-layer stainless steel sintered mesh is a filter mesh made of stainless steel material. It is formed by sintering (i.e. high temperature welding) multiple layers of stainless steel wire mesh together to form a strong and durable filter medium. This sintering process makes the multi-layer stainless steel sintered mesh have high strength and wear resistance while maintaining good filtering effect.



Structural features

The durable multi-layer stainless steel sintered mesh is made of multiple layers of stainless steel wire mesh, and each layer of wire mesh is tightly combined through high-temperature sintering technology. This structure gives the sintered mesh the following characteristics:

1. High strength. The sintering process makes the combination between the layers of wire mesh very firm, with high overall strength and not easy to break.

2. High wear resistance. Due to its tight structure and hard surface, stainless steel multi-layer sintered mesh has good wear resistance and long service life.

3. Excellent filtering performance. The multi-layer wire mesh design can achieve efficient filtration and effectively intercept particles of different sizes.

4. Corrosion resistance. It is usually made of corrosion-resistant stainless steel material, which can resist a variety of acid and alkali environments and is suitable for harsh chemical liquid filtration.

5. High temperature resistance. It can withstand high temperatures and can work stably for a long time at high temperatures.



Parameters

Nominal precision (μm)	Absolute precision (μm)	Gases permeability (L/min · dm2 · kPa)	Bubbling pressure (pa)
1	6-7	180	5300-6000
2	8-9	240	4300-5000
5	11-13	260	3000-3700
10	16-18	310	2700-3300
15	24-26	350	2000-2600
20	28-32	450	1800-2300
25	34-36	620	1400-1900
30	40-45	690	1200-1700
40	50-55	720	1000-1500
50	71-80	850	900-1200
70	89-95	900	700-1100
100	110-120	1080	650-1000
150	180-200	2600	550-800
200	260-280	2800	450-600



Application fields

The durable multi-layer stainless steel sintered mesh is widely used in various industries due to its unique properties, including:

1. Petrochemical industry. In the petrochemical industry, it is used for liquid filtration in oil refining and chemical production processes, such as catalyst recovery, solvent separation, etc.

2. Metal processing. In metal cutting, grinding and other processing processes, it is used to filter coolants and grinding fluids.

3. Food industry. In food processing, it is used for filtering products such as pure water, juice, and edible oil.

4. Pharmaceutical industry. In the pharmaceutical process, it is used to filter drug solutions to ensure the purity of drugs.

5. Environmental protection. It is used as a filter medium in waste gas treatment and wastewater treatment to remove harmful substances.

6. Energy industry. It is used for filtering cooling water or other fluids in nuclear energy, thermal power generation and other fields.



Manufacturing process

The manufacturing process of the durable multi-layer stainless steel sintered mesh mainly includes the following steps:

1. Material selection. Select suitable stainless steel materials, usually corrosion-resistant and high-temperature resistant stainless steel varieties.

2. Weaving. Weave the selected stainless steel wire into wire meshes of different specifications.

3. Stacking. Multiple layers of wire mesh are stacked together in a specific order to form a whole.

4. Sintering. The stacked wire mesh is placed in a high-temperature furnace for sintering, so that the metal contact points between the layers of wire mesh are melted and combined together.

5. Processing. The sintered mesh blocks are processed by shaping, cutting and other processing to form the final product.

6. Inspection. The finished product is strictly inspected for quality to ensure that its performance meets the requirements.



Maintenance and care

In order to ensure the long-term and effective use of multi-layer stainless steel sintered mesh, it needs to be properly maintained and maintained, including regular cleaning, damage inspection and timely replacement.
