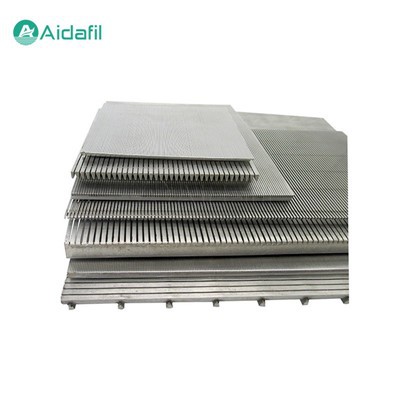

Corrosion Resistant Johnson Screen Plate

The corrosion resistant Johnson screen plate is a high-performance metal filter material, which is widely used in various industrial fields for screening, filtration, dewatering, desliming and other processes. It is known for its unique design, excellent separation efficiency and durability.



The corrosion resistant Johnson screen plates are usually made of high-quality stainless steel materials (such as 304, 316L, etc.), which have excellent corrosion resistance and mechanical strength, ensuring the long-term stability and reliability of the sieve plate. Depending on the application requirements, other metal materials or surface treatment technologies can also be used to adapt to the specific working environment.

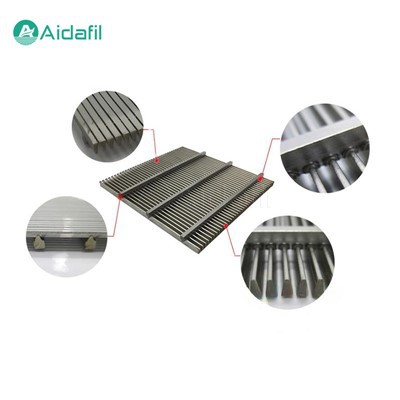

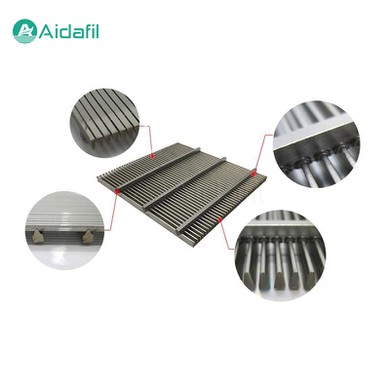

The core of the corrosion resistant Johnson screen plate lies in its precise structural design. It is mainly composed of two parts: the wedge-shaped wire (screen strip) and the support strip. The screen strip is usually V-shaped or wedge-shaped, with its upper end straight and its lower end sharp. This design not only increases the opening area, but also ensures sufficient strength. These screen strips are firmly connected with the vertically arranged support strips through precise resistance welding technology to form a continuous strip structure. This design allows the Johnson screen plate not only to have a high opening rate, but also to ensure the uniformity and stability of the screen seam, thus improving the screening and filtration efficiency.



Working principle

The working principle of corrosion resistant Johnson screen plate is based on its unique strip design. When the material passes through the screen plate, the fine particles can smoothly pass through the screen seam, while the larger particles are intercepted. For liquid filtration, Johnson screen plate can effectively prevent solid particles from entering the next process, while allowing the liquid to pass smoothly, which is particularly important in the fields of chemical industry and water treatment. In some applications, such as dewatering, medium removal, and desliming in the coal industry, Johnson screen plate uses its special arc design and vibration mechanism to separate the slime water through the cutting action of the screen strip, improving the dewatering efficiency.



Performance characteristics

1. Efficiency

Due to the high opening rate and reasonable design of the screen seam, Johnson screen plates can ensure good screening and filtration efficiency while maintaining high flow.

2.Durability

Made of high-quality stainless steel or other corrosion-resistant materials, combined with precision welding technology, Johnson screen plate has strong wear resistance and corrosion resistance, and has a long service life.

3. Strong adaptability

Customized screen seam size, shape and material can be customized for different industries and material characteristics to meet diverse needs.

4. Easy to maintain

The open structure is easy to clean and inspect, reducing maintenance time and costs.

5. High stability

During long-term operation, the size and shape of the screen seam remain stable to ensure the consistency of the filtration effect.



Application field

The application field of the corrosion resistant Johnson screen plate is extremely wide, covering almost all the industrial production links that need to be screened and filtered:

1. Oil and gas: Used for drilling fluid treatment, oil and gas separation, water treatment, etc.

2. Chemical industry: It plays an important role in the classification, filtration and drying of chemical raw materials.

3. Mining: In mineral processing, mineral processing, dewatering, desliming and other links.

4. Food and pharmaceuticals: Ensure the purity and quality of raw materials, meeting strict hygiene standards.

5. Water treatment: Raw water pretreatment, wastewater treatment, drinking water purification, etc.

6. Environmental protection: Plays an important role in wastewater treatment, sludge treatment, and other fields.

7. New energy: In the filtration and purification of lithium battery materials, ensure product quality.



Parameters

Material : Stainless steel 304, 316L, 904L, Hastelloy

Gap : Minimum 0.015mm

Diameter : Customized

Filtering direction : Customized
