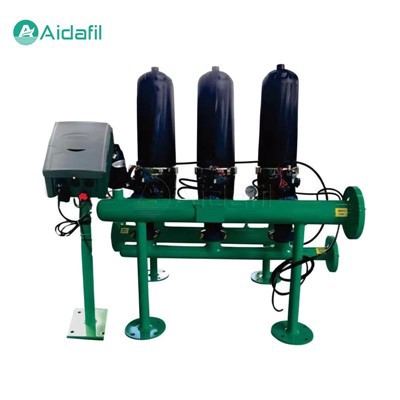

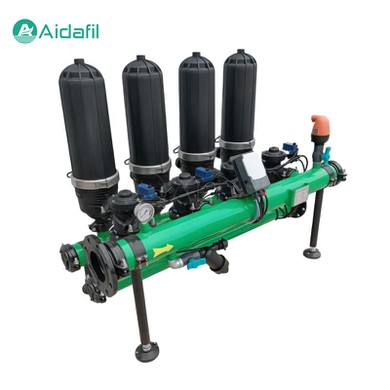

Wide Application High Efficiency Disc Filter

The Wide Application High Efficiency Disc Filter is a commonly used filtration device that consists of a series of discs made of plastic or metal stacked on top of each other. These discs are engraved with complex grooves or gaps that form a series of fine filtration channels. As the liquid passes through the disc, solid particles are trapped in the surface or grooves of the disc, while the clean liquid flows out through the filtration channel.



Characteristics

1. High-efficiency filtration

The filtration efficiency of the disc filter is very high, which can remove suspended solid particles, impurities and microorganisms in the liquid, thus improving the cleanliness and quality of the liquid.

2. Easy to clean

The disc filter can easily remove impurities trapped on the discs by reverse washing or rotary cleaning. This cleaning method is simple and fast, which can greatly extend the service life of the filter.

3. Flexibility

The filtration accuracy of the disc filter can be adjusted according to needs, and different filtration effects can be achieved by replacing discs of different specifications. In addition, the disc filter can also increase or decrease the number of discs according to the needs of the processing capacity.

4. Compact structure

The disc filter is modular in design, with a compact structure and a small footprint, making it easy to install and maintain.

5. Wide range of applications

The disc filters are widely used in municipal water supply, industrial circulating water, swimming pool water, landscape water, seawater desalination pretreatment, food and beverage, pharmaceutical and chemical industries, and other fields.



Parameters

Working pressure	0.2Mpa ~ 0.8Mpa
Backwash pressure	0.15Mpa ~ 0.8Mpa
Working temperature	<60°C
pH value	4 ~ 13
Filter element number	2 ~ 10
Filter accuracy	20μm ~ 200μm
Inlet pipe	Plastic material, flange connection
Outlet pipe	Plastic material, flange connection
Drain pipe	Flange connection
Backwash valve	Plastic material
System control	Fully automatic special control system, with IP65 international standard insulation class



Application

The Wide Application High Efficiency Disc Filter is mainly used in various applications that require solid-liquid separation and filtration of liquids.

1. Municipal water supply and water treatment

The disc filter is used in municipal water supply systems to remove suspended solids, sediment, rust and other impurities from water to improve water quality. The disc filter also plays an important role in wastewater treatment and recycling, helping to remove suspended solids and microorganisms from water.

2. Industrial circulating water system

In industrial production, the circulating water system needs to maintain the cleanliness and stability of the water. The disc filter can effectively remove impurities and particles from the circulating water, reduce equipment wear and failure rates, and improve production efficiency.

3. Swimming pool and landscape water

The disc filter is widely used in swimming pools and landscape water treatment to remove suspended solids, algae, bacteria, etc., and maintain clear and hygienic water quality.

4. Desalination pretreatment

In the desalination process, the disc filter is used to remove sediment, suspended solids and other impurities from seawater, providing clean raw water for the subsequent desalination process.

5. Food and beverage industry

The disc filter is used in the food and beverage industry for water treatment and raw material filtration in the production process to ensure product purity and hygiene standards.

6. Pharmaceutical and chemical industry

In the field of medicine and chemical industry, the disc filter is used for the filtration of various liquid raw materials, as well as for process water treatment and wastewater treatment in the production process.

7. Agricultural irrigation

The disc filter is also suitable for use in agricultural irrigation systems to remove impurities from irrigation water, prevent clogging of the irrigation system, and ensure the normal growth of crops.

8. Other fields

In addition to the above fields, the disc filter is also widely used in cooling water systems, heat exchange systems, boiler make-up water, metal cutting fluids, electroplating fluids, oil field water injection, groundwater, and car wash water recycling.

When using a Wide Application High Efficiency Disc Filter, the following points need to be taken into account:

1. Regular inspection and cleaning. In order to ensure the normal operation and filtration effect of the filter, the filter needs to be checked and cleaned regularly. The specific cleaning cycle can be determined according to the actual situation of water quality and treatment capacity.

2. Choose the appropriate filtration accuracy. Choose the appropriate filtration accuracy according to actual needs, and avoid choosing too small filtration accuracy to cause filter blockage or choosing too large filtration accuracy to cause poor filtration effect.

3. Proper installation and maintenance. Install the filter correctly according to the installation instructions, and follow the maintenance guide for regular maintenance and maintenance to ensure the long-term stable operation of the filter.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
