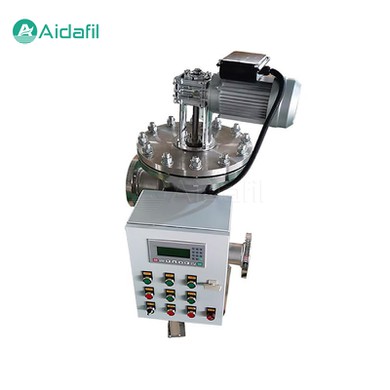

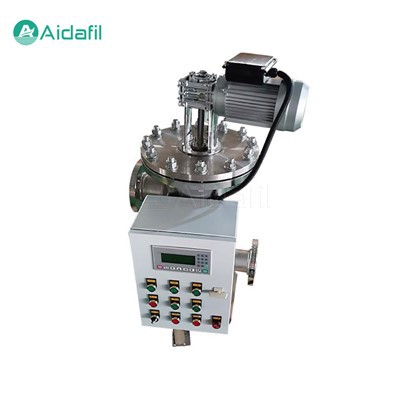

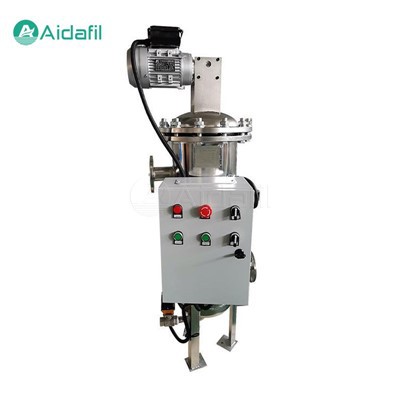

Wide-Applicability Fully Automatic Self-Cleaning Filter

The wide-applicability fully automatic self-cleaning filter is a high-efficiency water treatment equipment. It intercepts solid impurities and particulate matter in the water through the built-in filter screen, effectively reducing the turbidity of the water and improving the water quality. This filter is widely used in various fields, including industrial water treatment, seawater desalination, food processing, pharmaceuticals, and municipal water supply. The fully automatic self-cleaning filter overcomes some of the shortcomings of traditional filtration products due to its intelligent design and high degree of automation, such as small amount of pollution, easy blockage, frequent disassembly and cleaning, and the inability to monitor the filtration status in real time.



Components

The wide-applicability fully automatic self-cleaning filter is mainly composed of the following parts:

1. Filter screen

The filter screen is the core part of the filter, which is used to intercept impurities and particulate matter in the water. The material and specifications of the filter screen can be selected according to the actual application requirements to meet different filtration effect requirements.

2. Automatic cleaning system

The automatic cleaning system is one of the features of the fully automatic self-cleaning filter, which includes cleaning pumps, cleaning nozzles and cleaning pipes. When the dirt on the filter screen accumulates to a certain extent, the cleaning system will automatically start, wash away the dirt on the filter screen, and discharge the dirt through the drainage pipe.

3. Control system

The control system is the core control part of the fully automatic self-cleaning filter. It can realize the automatic cleaning, start-stop and other functions of the filter through timer timing, differential pressure switch or manual control.

4. Drive device

The drive device is the power source of the fully automatic self-cleaning filter. It can drive the cleaning system for automatic cleaning by means of electric motor, pneumatic or hydraulic.



Specifications

Maximum flow	20-3000m3/h
Minimum working pressure	0.2MPa(g)
Maximum working pressure	1.6MPa(g)
Inlet & outlet diameter	DN50-DN700
Maximum operating temperature	80°C
Filtration accuracy	10-3000μm
Filter mesh	304, 316L stainless steel
Filter housing	Carbon steel / 304, 316L stainless steel
Motor power	0.37-1.1KW
Voltage	380V 50Hz three-phase
Cleaning flow	<1% of total flow
Cleaning time	15 sec (adjustable)
Cleaning differential pressure	0.5kg/cm2 (adjustable)



Characteristics

1. High-efficiency filtration

The fully automatic self-cleaning filter adopts advanced filtration technology, which can effectively remove suspended solids, bacteria, viruses and other impurities in water and improve water quality.

2. Automatic cleaning

The fully automatic self-cleaning filter has an automatic backwashing function without manual intervention, saving manpower and material resources.

3. Energy saving and environmental protection

The fully automatic self-cleaning filter adopts a high-pressure water pump with high efficiency and energy saving, which reduces energy consumption and operating costs. At the same time, the equipment is made of environmentally friendly materials and meets the requirements of green environmental protection.

4. Stable and reliable

The fully automatic self-cleaning filter has a compact structure, easy installation and simple maintenance. The equipment is made of high-quality materials, which are corrosion-resistant, wear-resistant and have a long service life.

5. Widely applicable

The fully automatic self-cleaning filter can be applied to a variety of water quality conditions to meet the needs of different fields.



Application

The use of the wide-applicability fully automatic self-cleaning filters is extremely extensive, including but not limited to industrial circulating cooling water treatment, agricultural irrigation, municipal power supply, electronic manufacturing, pharmaceutical production, food processing, printing and dyeing, construction, steel production, metallurgy, papermaking, coal mining, swimming pools, landscaping and greening.



Development trend

1. Intelligent

With the continuous development of artificial intelligence, Internet of Things and other technologies, the fully automatic self-cleaning filter will achieve a higher degree of intelligence. Through remote monitoring, data analytics and other functions, intelligent management and optimized operation of equipment can be realized.

2. Efficiency

In the future, the fully automatic self-cleaning filter will pay more attention to improving filtration efficiency and reducing energy consumption. By developing new filter media and optimizing filter structure, the filtration accuracy and processing capacity of the equipment can be improved.

3. Diversification

With the continuous expansion of the application field, the fully automatic self-cleaning filter will show a diverse development trend. For different water quality conditions and application requirements, filter products with specific functions and performance are developed.

4. Green

The growing awareness of environmental protection will promote the development of fully automatic self-cleaning filters to green. By using environmentally friendly materials, reducing energy consumption, reducing emissions and other measures, the impact of equipment on the environment can be reduced.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
