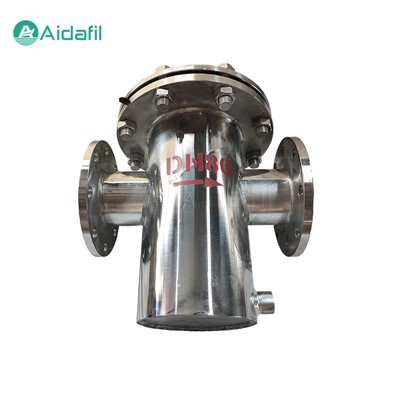

Water Treatment Equipment Basket Filter

The primary function of the water treatment equipment basket filter is to remove solid particles, debris, and impurities from water. It operates on a simple yet effective principle. The filter is designed in the form of a basket or a container with a perforated or meshed structure. As water passes through the basket, the solid particles are trapped inside, while the filtered water exits.



The performance of the water treatment equipment basket filter is influenced by several factors. The mesh size of the basket is a critical parameter as it determines the smallest particle size that can be effectively trapped. Choosing the appropriate mesh size depends on the specific water quality and the requirements of the downstream processes. A finer mesh will result in better particle removal but may also require more frequent cleaning to prevent clogging.



Another factor is the flow rate of water through the filter. Higher flow rates may reduce the residence time of water in the basket, potentially affecting the efficiency of particle capture. Therefore, proper sizing and selection of the basket filter based on the expected flow rate are essential to achieve optimal performance.



The choice of materials for the basket filter is significant. Stainless steel is a common choice due to its durability, corrosion resistance, and ability to withstand high temperatures and pressures. However, other materials such as carbon steel may also be used depending on the specific application and budget considerations.



Parameters

Material of housing	Cast iron, carbon steel	Stainless steel
Material of strainers	Stainless steel
Material of seal components	Oil-resistant asbestos, flexible graphite, PTFE
Working temperature	-30 ~ +380°C	-80 ~ +450°C
Filtration precision	10 ~ 300 meshes
Nominal pressure	0.6 ~ 6.4 Mpa (150Lb ~ 300Lb)
Connection	Flange, welding



Features and advantages

One of the key features of the water treatment equipment basket filter is its high efficiency in particle removal. It can effectively capture particles of various sizes, from large debris to fine sediments. This ability is crucial in preventing clogging and damage to downstream equipment and ensuring the smooth operation of the entire water treatment system.



The design of the water treatment equipment basket filter also offers several advantages. It is relatively simple and easy to install, maintain, and clean. The basket can be easily removed for inspection and cleaning, minimizing downtime and maintenance costs. Additionally, it can be customized according to specific application requirements, such as different mesh sizes or materials to accommodate different water qualities and flow rates.



Application

In industrial applications, water treatment equipment basket filters are widely used in processes such as water supply for manufacturing, cooling water systems, and wastewater treatment. They help protect pumps, valves, heat exchangers, and other sensitive equipment from the harmful effects of solid particles. By filtering out impurities, the basket filter extends the lifespan of these components and reduces the risk of breakdowns and costly repairs.



Maintenance

Regular maintenance is crucial for the effective operation of the water treatment equipment basket filter. Periodic cleaning of the basket is necessary to remove the accumulated solids and restore its filtering capacity. This can be done by simply rinsing the basket with water or using appropriate cleaning agents depending on the nature of the contaminants. In some cases, backwashing or other cleaning methods may be employed to ensure thorough cleaning.



In addition to physical cleaning, proper monitoring of the filter's performance is also important. This can include regular checks of the pressure drop across the filter, which can indicate when the basket is clogged or when it needs to be cleaned or replaced. By closely monitoring these parameters, operators can take timely actions to maintain the efficiency and reliability of the water treatment system.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
