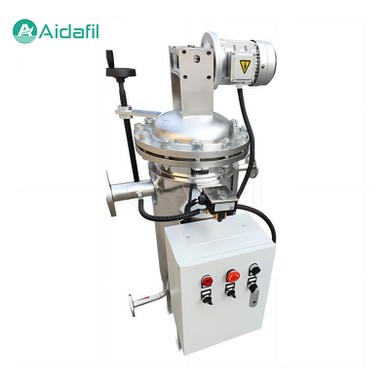

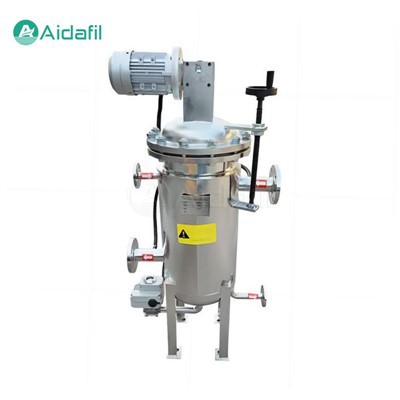

Suction Type Automatic Self-Cleaning Filter

The suction type automatic self-cleaning filter is an efficient and intelligent filter system, which is widely used in water treatment, sewage treatment, swimming pool, aquarium and other fields. The filter can clean the filter element by itself through the automatic sucking function, ensuring the stability and reliability of the filtration efficiency.



Structure

The suction type automatic self-cleaning filter is mainly composed of the following parts:

1. Filter element. This is the core part of the equipment and is responsible for filtering pollutants. Filter elements are usually made of special materials with high filtration capacity.

2. Sucking system. This system is responsible for sucking out pollutants and discharging them. Sucking systems are usually composed of motors, fans, pipelines, etc.

3. Control system. The system is responsible for controlling the working status of the equipment, including activating the sucking function, monitoring the degree of contamination of the filter element, etc.

4. Cleaning system. This system is responsible for cleaning the filter element to ensure that it maintains good filtration efficiency.



Working principle

The working principle of the suction type automatic self-cleaning filter is as follows:

1. Contaminants enter the equipment and are filtered through the filter element.

2. When contaminants accumulate on the filter element, the control system automatically activates the sucking function.

3. The sucking system sucks out pollutants and discharges them.

4. At the same time, the cleaning system will start to clean the filter element to ensure that it maintains good filtration efficiency.

5. After cleaning, the filter element is restored to its original state and the filtration work continues.



Specifications

Material	Carbon Steel, Stainless Steel, Alloy Steel
Operating Temperature	-50°C~200°C
Filtration Rating Available	20 micron to 2000 micron & more.
Nominal Pressure	PN16
Self-Cleaning Control Mode	Pressure Gage Control / Time Control / Manual Operation
Power	380V/50Hz or Customized
Control Power Supply	220V/50Hz or Customized
Self-Cleaning Time	10-60 S
Transport Package	Wooden Box
Origin	China



Application field

The suction type automatic self-cleaning filters are widely used in the following fields:

1. Water treatment. It is used to remove suspended solids, sediments, microorganisms and organic matter from water and provide clean and safe drinking water.

2. Sewage treatment. It is used to treat urban wastewater, industrial wastewater and rural wastewater, remove dirt and harmful substances, purify water quality, and protect the environment.

3. Swimming pools and aquariums. It is used to keep the water quality of swimming pools and aquariums clean and provide a good swimming and viewing environment.

4. Industrial production. It is used in water circulation systems, cooling water systems, etc. in industrial production processes to ensure the normal operation of production equipment and product quality.



Advantages

The suction type automatic self-cleaning filter has a variety of advantages, making it very popular in the field of water treatment and fluid control. Firstly, this filter can achieve fully automatic on-line continuous filtration, and the cleaning process can be completed without downtime, which greatly improves the work efficiency. Secondly, due to the high-precision filtration design, it can effectively remove impurities and suspended solids in water and ensure the cleanliness of water quality. In addition, the automatic sucking self-cleaning filter also has the characteristics of low power consumption and relatively low operating cost, which is an important economic advantage for long-term operation of the system.



The structural design of the filter is also very user-friendly, easy to operate and maintain. For example, it is usually equipped with a differential pressure or timing control device, which can automatically start the cleaning procedure according to actual needs, reducing the need for manual intervention. At the same time, due to the optimization of its internal structure, the cleaning process is simple and efficient, and the filtration performance can be quickly restored.



In terms of environmental protection, the automatic suction self-cleaning filter also has its own unique advantages. It can complete the cleaning without interrupting the main water flow, which means that there is no additional water waste, in line with the requirements of modern industry for sustainable development and environmental protection.



Installation instructions

- The direction of the arrow on the filter body is the direction of water flow. It should be installed in this direction to ensure that the direction of water flow is consistent with the arrow.

- The filter should be installed in series in the piping system and set up a bypass to ensure uninterrupted water supply during shutdown.

- Filter inlet and outlet and bypass should be provided with a cut-off ball valve.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
