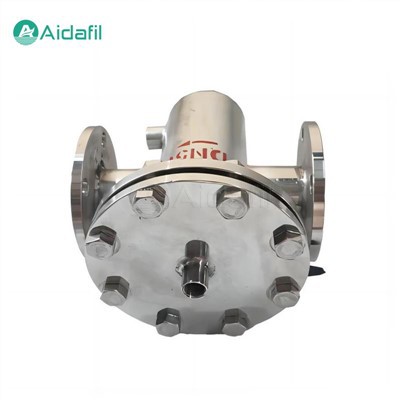

Excellent Stainless Steel Basket Filter

The excellent stainless steel basket filter is a kind of high-efficiency filtration equipment widely used in industrial and civil fields. Its main function is to intercept and remove solid particles in the fluid by physical methods to ensure the cleanliness of the fluid medium.



The excellent stainless steel basket filter is mainly made of stainless steel, which has excellent corrosion resistance, high temperature resistance and pressure resistance, and is suitable for various complex filtration environments. The main part of the filter is a basket-shaped filter container with stainless steel filter screen inside. The pore size of the filter screen can be customized according to needs to meet the filtration requirements of different fluid media.



Working principle

The working principle of the excellent stainless steel basket filter is relatively simple. When the fluid medium enters the filter through the pipe, the solid particles in it will be intercepted by the filter screen, while the clean fluid will enter the downstream pipe through the filter screen to achieve the purpose of filtration. As the filtration progresses, a layer of solid particles will gradually accumulate on the filter screen. When a certain thickness is reached, the filter needs to be cleaned or replaced to ensure the filtration effect.



Filtering effect

The filtration effect of an excellent stainless steel basket filter mainly depends on the pore size and filtration area of the filter screen. Generally speaking, the smaller the pore size, the better the filtration effect, but it will also increase the filtration resistance and reduce the filtration flow. Therefore, when choosing a filter, you need to make a trade-off according to actual needs. In addition, the size of the filtration area will also affect the filtration effect. The larger the filtration area, the stronger the processing capacity, but the cost will also increase accordingly.



The stainless steel basket filter can effectively remove suspended solids, sediment, rust, organic matter, bacteria and other impurities in the fluid, making the water more pure. In industrial production, it can ensure the normal operation of equipment and reduce downtime losses caused by impurity blockage. In the civilian field, it can improve the quality of drinking water and ensure people's healthy drinking water needs.



Parameters

Material of housing	Cast iron, carbon steel	Stainless steel
Material of strainers	Stainless steel
Material of seal components	Oil-resistant asbestos, flexible graphite, PTFE
Working temperature	-30 ~ +380°C	-80 ~ +450°C
Filtration precision	10 ~ 300 meshes
Nominal pressure	0.6 ~ 6.4 Mpa (150Lb ~ 300Lb)
Connection	Flange, welding



Application scenarios

The excellent stainless steel basket filters are widely used in the following fields:

1. Water treatment field

Including waterworks, sewage treatment plants, swimming pools, landscape pools, etc., used to remove impurities and harmful substances from water and improve water quality.

2. Food processing

In the food production process, stainless steel basket filters can be used to filter liquids such as juices, beverages, and beers to remove suspended solids and impurities, ensuring the taste and quality of the product.

3. Petrochemical

In the petroleum, chemical and other industries, stainless steel basket filters can be used to filter various oils, solvents, chemical raw materials, etc., to remove particulate matter and impurities, ensuring the smooth progress of the production process.

4. Pharmaceutical manufacturing

In the pharmaceutical manufacturing process, stainless steel basket filters can be used to filter pharmaceutical raw materials to ensure the purity and safety of medicines.



Advantages

Here are some of the main advantages of the excellent stainless steel basket filters:

1. Simple structure and easy maintenance

Basket filters are usually designed to be simple, which makes them easy to maintain and clean. Users can quickly open the filter, remove the filter basket for cleaning, and then reinstall it, greatly reducing maintenance time and costs.

2. High-precision filtration

Basket filters can achieve high-precision filtration, effectively removing tiny particles and impurities from liquids, which is very important for industries that require high-purity products.

3. Adaptable

Basket filters can adapt to different pressure and temperature conditions and can operate stably in a variety of industrial environments.

4. Cost-effective

Due to its simple construction and durable materials, the basket filter has relatively low operating costs, and the filter basket can be cleaned and reused, further reducing operating costs.

5. Widely used

Basket filters are suitable for a variety of industries, including petrochemical, pharmaceutical, food and beverage, water treatment, etc., and can meet the needs of different industries for liquid filtration.

6. Protect critical equipment

By removing impurities from liquids, basket filters help protect downstream equipment such as pumps, valves, and meters, prolonging their service life and reducing failure rates.



Cleaning and maintenance

The cleaning and maintenance of the stainless steel basket filter is relatively simple. When the solid particles on the filter screen accumulate to a certain extent, it can be cleaned by removing the filter screen. When cleaning, you can use water or an appropriate cleaning agent, rinse it and then reinstall it into the filter. In order to prolong the service life of the filter, it is recommended to perform regular cleaning and maintenance.



In addition, the following points need to be taken into account during use:

Avoid excessive pressure or impact on the filter to avoid damaging the filter.

Regularly check the pressure difference between the inlet and outlet of the filter. If any abnormal pressure difference is found, it should be checked and dealt with in a timely manner.

Pay attention to the installation direction and position of the filter to ensure that the fluid medium can pass through the filter smoothly.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
