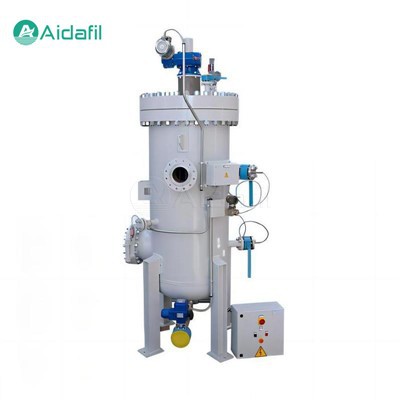

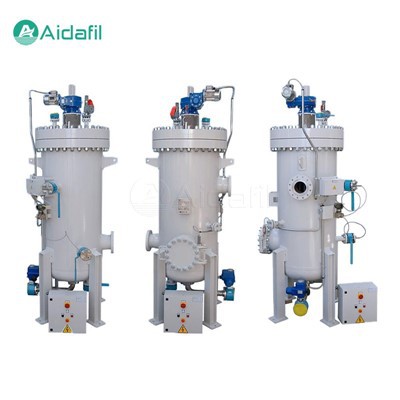

Smart-Cleaning Brush Self-Cleaning Filter

The smart-cleaning brush self-cleaning filter is a high-efficiency water treatment equipment, usually used in industrial and agricultural fields, which can effectively filter and clean water sources to ensure the purity and reliability of water quality. This filter adopts automatic cleaning technology, which can reduce maintenance work and operating costs, improve work efficiency and performance stability.



Working principle --- Smart cleaning, continuous operation

The working principle of the smart-cleaning brush self-cleaning filter is based on a clever design. When the fluid enters the filter, the impurities are intercepted by the filter screen. As the impurities accumulate, a pressure difference is created between the filter inlet and outlet. Once the set pressure difference threshold is reached, the self-cleaning process starts. The built-in rotating brush starts to rotate, brushing the impurities down from the surface of the filter screen and discharging them through the sewage outlet. The whole process is fast and efficient, ensuring the continuity of filtration.



Structure

1. Solid shell

The filter has a sturdy housing that can withstand the pressure of the fluid and the influence of the external environment, providing reliable protection for the internal components.

2. Precision filter

The filter is the core component of the filtration function, and its precise aperture can effectively intercept impurities.

3. Smart rotating brush

The rotating brush is responsible for removing impurities from the filter during the self-cleaning process, and its flexible rotation ensures comprehensive and thorough cleaning.



Characteristics

1. Efficient filtration, excellence

With excellent filtration efficiency, it can effectively remove minute impurities and ensure the purity of the fluid.

2. Automatic cleaning, worry-free and labor-saving

There is no need for frequent manual cleaning, which greatly saves manpower and time costs.

3. Adaptable and widely used

It can adapt to different fluid types and working environments, and is widely used in a wide range of fields.



Advantages

1. Stable operation for a long time

Compared with traditional filters, smart-cleaning brush self-cleaning filters can operate stably for a long time, reducing equipment maintenance and downtime.

2. Energy conservation and environmental protection

Through automatic cleaning, energy consumption and waste of resources are reduced.

3. Easy maintenance

The structure is relatively simple, and maintenance is convenient and quick.



Parameters

Comprehensive Parameters
Operating flow		50m³/h - 2500m³/h
Working pressure		2bar - 16bar (230psi)
Filter area		3000cm² - 20000 cm²
Inlet / outlet diameter		DN50 - DN900
Ultra-high operating temperature		80°C
Cleaning Parameters
Blow-down valve	Cleaning time		Water consumption per cleaning
DN25, DN50, DN80	15 - 60S		≤ 1%



Application field

1. A good helper for industrial production

In industrial fields, such as chemical, petroleum, power, etc., it is used to process various process fluids.

2. A sharp tool for water treatment

It plays an important role in the water treatment process to ensure the quality and safety of the water supply.

3. Safeguarding the food and beverage industry

Ensure the purity of fluids in food and beverage production and comply with hygiene standards.



Installation and maintenance

1. Install correctly, get twice the result with half the effort

During installation, it is necessary to operate according to the specifications to ensure that the filter is firmly connected to the pipeline and well sealed.

2. Regular maintenance, long-lasting

Regularly check and maintain the filter, including checking the wear of the filter, the flexibility of the rotating brush, etc., and replace damaged parts in a timely manner.



Development prospects

With the continuous advancement of science and technology and the improvement of fluid handling requirements in various industries, brush self-cleaning filters have broad development prospects. It will continue to innovate and improve to provide more efficient and intelligent filtration solutions for various fields.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
