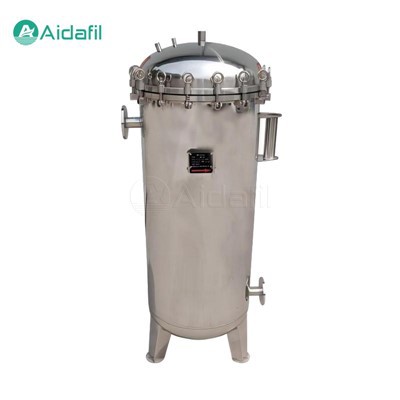

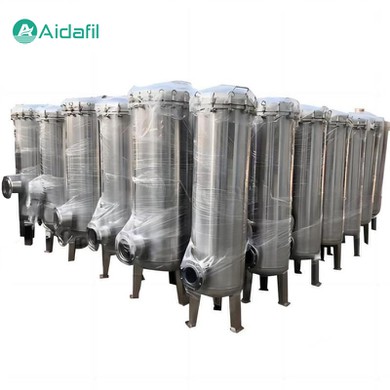

Large Processing Capacity Bag Filter

The large processing capacity bag filter is mainly used to separate suspended solids and liquids. Its working principle is to pass the liquid through the filter bag through the pressure difference, and the solid particles are intercepted on the filter bag to achieve solid-liquid separation. The bag filter has a large processing capacity and can handle a large number of suspended solids and liquids. It is suitable for a variety of different industries and fields, such as chemical, pharmaceutical, food, environmental protection, etc.

Parameters

Flange standard	HG, GB, SH, HGJ, J8, ANSI, JIS
Connections	Thread, Flange, Clamp
Drain outlet specification	1/4
Filtering precision	0.5 - 800 μm
Design pressure	0.6 - 1.0 Mpa
Design temperature	90°C for PP filter bag, 130°C for PE filter bag, 240°C for PTFE filter bag
Surface treatment	Sand blasting, polishing
Housing material	20#, 304, 316L, 2205/2507, titanium
Sealing gasket material	Silica gel, NBR, PTFE
Filter bag material	Polyester, polypropylene, nylon, PTFE, glass fiber

Main features

1. Efficient filtration

The bag filter is made of high-efficiency filter material, which can effectively separate tiny particles and provide high filtration efficiency.

2. Large processing power

The bag filter can handle large amounts of water and suspended solids, making them suitable for large-scale solid-liquid separation operations.

3. Compact structure

The bag filter has a relatively compact structure and a small footprint, making it easy to install and maintain.

4. Variety of materials

The bag filter can be made of different materials to adapt to different media and filtration requirements.

5. Easy to maintain

The bag filter bag is easy to replace, easy to maintain, and has low operating costs.

6. Wide range of applications

The bag filter can be used in a variety of industries and fields, such as chemical, pharmaceutical, food, and environmental protection.

7. Security

The bag filter is designed with safety factors in mind, such as explosion-proof and leak-proof.

8. Energy saving and environmental protection

The bag filter has low energy consumption during operation and is environmentally friendly.

Application

The large processing capacity bag filter is widely used in many fields, including:

1. Chemical industry

In the chemical production process, bag filters are used to separate various chemical raw materials, solid particles in products, and suspended solids in wastewater treatment.

2. Pharmaceutical industry

In the pharmaceutical process, bag filters are used to ensure the purity of pharmaceutical products, to separate solid particles from drug suspensions, and to treat wastewater during production.

3. Food industry

In food processing, bag filters are used to remove impurities from raw materials, improve product quality, and treat wastewater from food production.

4. Environmental protection

Bag filters are used in the field of environmental protection for the treatment of industrial wastewater, removing suspended solids to meet discharge standards, and can also be used for solid waste treatment and resource recovery.

5. Metalworking industry

In the metalworking process, bag filters are used to filter metal chips and grinding particles from coolant to maintain a clean working environment and improve product quality.

6. Mining and mineral processing

In the mining industry, bag filters are used to separate dust and particulate matter generated during mineral processing, as well as to treat tailings and wastewater.

7. Paper industry

In the paper industry, bag filters are used to recover fibers and wastewater from the paper production process to improve resource utilization.

8. Textile industry

In textile production, bag filters are used to remove dust and impurities from the textile production process and to treat related wastewater.

9. Paint and coatings industry

Bag filters are used to filter solid particles from paints and coatings to ensure product uniformity and quality.

10. Electronics industry

In electronics manufacturing, bag filters are used to purify chemicals and solvents from the semiconductor manufacturing process, as well as to remove particulate matter from the air.

How to ensure efficient work of the large processing capacity bag filter?

For a bag filter to work efficiently, the following key factors need to be considered:

1. Filter bag selection

Select the appropriate filter bag material according to the nature of the filter medium (e.g. particle size, humidity, viscosity, chemical properties, etc.). For example, for chemically harsh environments, filter bags made of stainless steel wire mesh or special polymer materials may be required.

2. Filtration area

Increasing the filtration area can increase the processing capacity, so the appropriate filtration area should be selected in the design to meet the production requirements.

3. Filtering speed

A reasonable filtration speed can ensure filtration efficiency while avoiding clogging of the filter bag too quickly. Filtration speed usually depends on the material of the filter bag and the nature of the suspension.

4. Cleaning and maintenance

Regular cleaning and maintenance of the filter bag is the key to ensuring the efficient operation of the bag filter. This includes regular replacement of the filter bag, cleaning the filter bag, and checking the working condition of the filter components.

5. Appropriate filtration pressure

Make sure the filter operates within the designed working pressure range to avoid damage to the filter bag or a decrease in filtration efficiency due to excessive pressure.

6. Feed and discharge design

Reasonable feed and discharge design can reduce pressure loss and improve filtration efficiency.

7. Material and structure

Select corrosion-resistant and wear-resistant materials and adopt a reasonable structural design to ensure the long-term stable operation of the filter.

FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
