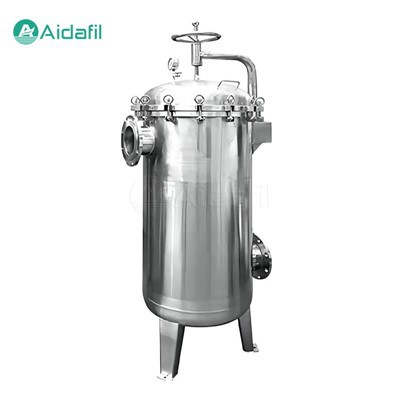

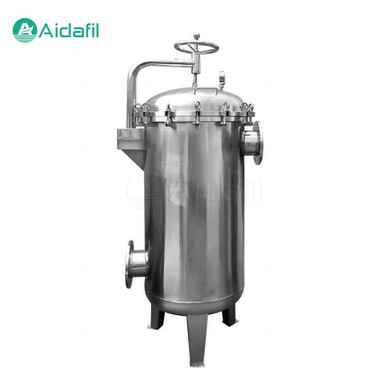

Large Flow Multiple Bag Filter

The large flow multiple bag filter is a high-efficiency liquid filtration equipment, mainly used to handle large-flow liquids to remove suspended particles, impurities and contaminants. This filter has the characteristics of high-flow processing capacity, high-efficiency filtration effect, high reliability, easy maintenance and replacement, and is widely used in chemical, petroleum, energy, food, pharmaceutical, water treatment and other industries.



The large flow multiple bag filter is mainly composed of the following parts:

1. Filter housing. The housing of the filter, usually made of stainless steel or carbon steel, has good corrosion resistance and mechanical strength.

2. Filter bag. The filter bag is the core component of the filter, usually made of multiple layers of filter material, which can effectively capture and remove suspended particles, impurities, and contaminants.

3. Support net. The support net is the support structure of the filter bag, usually made of stainless steel or carbon steel, to ensure the stability and integrity of the filter bag.

4. Inlet and outlet. The inlet and outlet are the inflow and outflow parts of the filter, usually made of stainless steel or carbon steel, with good corrosion resistance and mechanical strength.



The large flow multiple bag filter works based on the filtration effect of the filter bag. Liquid flows into the filter housing, enters the filter bag through the inlet, and then flows through the filter bag's multi-layer filter material. Suspended particles, impurities and contaminants are captured and removed by the filter bag, and clean liquid flows out of the filter housing and through the outlet.



Filter Model Table

Model	Reference flow rate	Inlet & outlet	Cylinder Specifications	Filter bag specification / number	Design pressure	Opening method
ADB-2 II	40-100 T/H	DN80 - DN125	ø 460*1530*3mm	2# / 2 filter bags	1.0MPA	Quick Open Eye Bolts
ADB-3 II	60-150 T/H	DN100 - DN150	ø 510*1530*3mm	2# / 3 filter bags	1.0MPA	Quick Open Eye Bolts
ADB-4 II	80-200 T/H	DN100 - DN150	ø 610*1530*4mm	2# / 4 filter bags	1.0MPA	Quick Open Eye Bolts
ADB-5 II	100-250 T/H	DN100 - DN150	ø 660*1530*4mm	2# / 5 filter bags	1.0MPA	Quick Open Eye Bolts
ADB-6 II	120-300 T/H	DN100 - DN150	ø 710*1530*5mm	2# / 6 filter bags	1.0MPA	Quick Open Eye Bolts
ADB-8 II	160-400 T/H	DN150 - DN250	ø 810*1530*5mm	2# / 8 filter bags	1.0MPA	Quick Open Eye Bolts
ADB-10 II	200-500 T/H	DN150 - DN250	ø 960*1530*5mm	2# / 10 filter bags	1.0MPA	Quick Open Eye Bolts
ADB-12 II	240-600 T/H	DN150 - DN300	ø 1110*1530*6mm	2# / 12 filter bags	1.0MPA	Quick Open Eye Bolts



Application field

The large flow multiple bag filter is widely used in the following fields:

1. Chemical industry: used to handle various chemical liquids, such as acids, alkalis, solvents, etc.

2. Petroleum industry: used to process petroleum products such as gasoline, diesel, lubricants, etc.

3. Energy industry: used to process energy-related liquids, such as fuel oil, lubricants, etc.

4. Food industry: used to process food liquids, such as beverages, dairy products, fruit juices, etc.

5. Pharmaceutical industry: used to process pharmaceutical liquids, such as pharmaceuticals, solvents, etc.

6. Water treatment industry: used to treat water supply, wastewater, wastewater, etc.



Structural features

1. Multi-bag design. Multiple filter bags can be accommodated in one shell, and each filter bag undertakes part of the filtration task to achieve high-flow filtration.

2. Replaceable filter bags. Filter bags are used as consumables and can be replaced as needed, while the housing frame is reusable, reducing long-term operating costs.

3. A variety of filter bag materials. According to filtration requirements, filter bags of various materials such as nylon, polyester, polypropylene, and stainless steel wire mesh can be selected to meet different chemical compatibility and filtration accuracy requirements.

4. Top or side feeding. Flexible in design, the most suitable feeding method can be selected according to the installation space and process flow.

5. Quick opening and closing mechanism. Easy to replace and clean the filter bag, reducing maintenance time.



Performance characteristics

The large flow multiple bag filter has the following characteristics:

1. High-flow handling capacity. Large-flow bag filters can handle large amounts of liquid to meet the needs of industrial production and processing.

2. Efficient filtration effect. The bag filter uses multiple layers of filter materials to effectively capture and remove suspended particles, impurities, and contaminants, ensuring the cleanliness and quality of the liquid.

3. High reliability. The bag filter is simple and durable in structure, capable of uninterrupted operation for a long time, reducing downtime and maintenance costs.

4. Easy maintenance and replacement. The filter bag of the bag filter can be easily replaced and cleaned, reducing maintenance time and cost.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
