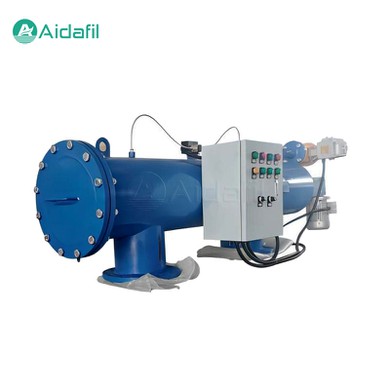

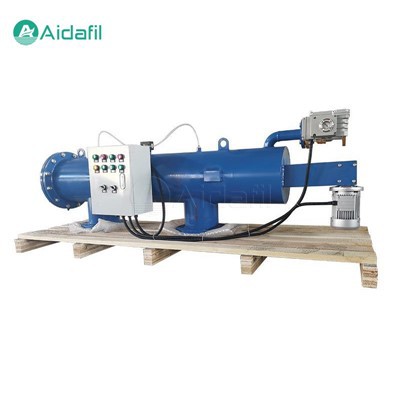

High Cleaning Efficiency Horizontal Self-Cleaning Filter

The high cleaning efficiency horizontal self-cleaning filter can be easily integrated with other water treatment equipment to form a complete water treatment system. The housing is usually made of stainless steel or other corrosion-resistant materials, which can resist chemical corrosion in a variety of industrial environments and extend the service life of the equipment.



How it works

The working principle of the high cleaning efficiency horizontal self-cleaning filter is based on the physical filtration and automatic cleaning process. Its core part is a filter screen made of stainless steel or other corrosion-resistant materials. Water enters the inside of the filter cartridge from the water inlet, impurities are intercepted on the surface of the filter screen, and clean water flows out of the water outlet through the filter screen.



When impurities accumulate on the filter screen to a certain extent, the pressure difference between the inlet and outlet will increase. Once this pressure difference reaches a preset value, or reaches a predetermined cleaning time, or manually triggers the cleaning process through the control system, the self-cleaning filter will start the cleaning program.



The cleaning process is as follows:

1. The motor drives a brush to rotate, which is close to the inside of the filter screen.

2. The rotation of the brush sweeps away the impurity particles trapped on the filter screen.

3. At the same time, the control system will open the sewage valve, allowing the brushed impurities to be discharged from the filter along with the water flow.

4. The cleaning process typically lasts for tens of seconds to a few minutes.

5. After cleaning, the sewage valve is closed, the motor stops running, the filter returns to the filtration state, and the water filtration continues.



Parameters

Single unit flow	50-1200M3/H, larger flow can be realized by multiple single units in parallel
Minimum working pressure	0.2Mpa
Maximum working pressure	1.0/1.6/2.5/4.0Mpa
Maximum operating temperature	80°C
Filtration accuracy	130~3500 microns
Control mode	Differential pressure, timing or manual
Cleaning time	60s
Cleaning mechanism speed	14-20rpm
Cleaning pressure loss	0.01Mpa
Control voltage	AC 220V
Rated operating voltage	Three-phase, AC220V /380V, 50HZ



Application

The following are some common application fields of the high cleaning efficiency horizontal self-cleaning filter:

1. Industrial circulating water treatment. In the steel, chemical, paper, textile and other industries, it is used to filter impurities and suspended solids in circulating water to protect production equipment from wear and blockage.

2. Cooling water treatment. In power, air conditioning and other systems, it is used to filter scale, microorganisms and sediment in cooling towers and cooling water pipes.

3. Boiler feed water treatment. Remove particulate matter and sediment from the feed water to reduce scaling and corrosion inside the boiler.

4. Food and beverage industry. In the process of food processing and beverage production, it is used to ensure the cleanliness of water sources and prevent the growth of bacteria.

5. Agricultural irrigation. In agricultural irrigation systems, remove particulate matter and impurities from water sources and protect sprinklers and drip irrigation equipment.

6. Mining water treatment. In mining and coal processing, it is used to recover useful minerals and filter coal dust to reduce environmental pollution.

7. Electronics industry. In the production of semiconductors and integrated circuits, it is used for the preparation and filtration of ultrapure water.



Advantages of horizontal structure

The horizontal structure of the high cleaning efficiency horizontal self-cleaning filter brings a series of advantages, making this filter widely used in industrial water treatment and other fields. Here are some of the main advantages of the horizontal structure:

1. Stability. The horizontal structure makes the filter more stable during operation and less susceptible to hydraulic shock, reducing equipment vibration and potential mechanical failure.

2. Easy to install and maintain. Horizontal filters are usually small and lightweight, making them easy to transport and install. In addition, their structural design makes key components such as filter elements, motors, and control systems easily accessible for maintenance and overhaul.

3. Small footprint. Due to the compact size of the horizontal filter, the horizontal layout allows it to work efficiently in a limited space, making it particularly suitable for site-constrained installation environments.

4. Good self-cleaning effect. The horizontal structure maintains good contact between the cleaning brush and the filter screen, which is conducive to improving the efficiency and effect of self-cleaning, thus ensuring that the filter always maintains efficient filtration performance.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
