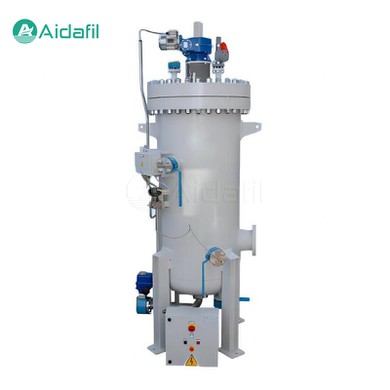

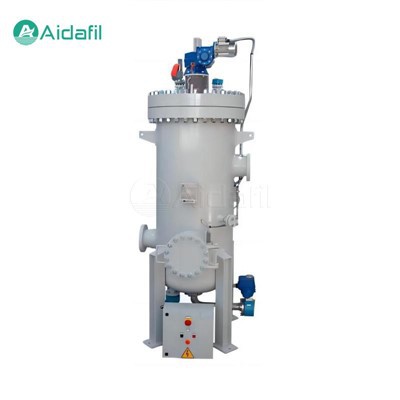

Fully Automatic Cleaning Brush Self-Cleaning Filter

The fully automatic cleaning brush self-cleaning filter is the perfect combination of high efficiency, intelligence and environmental protection. The core components of this filter are the filter screen and the electric brush. The filter screen is made of high-strength materials, which can effectively intercept impurities such as suspended solids and particles in the water. The electric brush is installed inside the filter screen and is driven by the motor to brush the impurities on the filter screen.



When the pressure difference between the inlet and outlet of the filter reaches the preset value or the cleaning time is up, the control system will automatically start the cleaning procedure. At this time, the electric brush starts to rotate, completely removes the impurities attached to the filter screen, and discharges the filter through the sewage valve. The whole cleaning process takes a short time, usually only ten seconds, and will not affect the normal water supply of the system.



Parameters

***Comprehensive Parameters
Operating flow		50m³/h ~ 2500m³/h
Working pressure		2bar ~ 16bar (230psi)
Filter area		3000cm² ~ 20000 cm²
Inlet / outlet diameter		DN50 ~ DN900
Ultra-high operating temperature		80°C
***Cleaning Parameters
Blow-down valve	Cleaning time		Water consumption per cleaning
DN25; DN50; DN80	15 ~ 60S		≤ 1%



Wide range of applications: Adapt to a variety of harsh environments

Since the fully automatic cleaning brush self-cleaning filter has the advantages of compact structure, easy installation and simple maintenance, it has been widely used in many fields. For example, in the industrial circulating water system, it can effectively remove impurities in the pipeline and prolong the service life of the equipment; in the municipal water supply system, it can ensure the purity of water quality and ensure the safety of water for residents; in the agricultural irrigation system, it can improve the irrigation water quality and promote the healthy growth of crops. In addition, the fully automatic cleaning brush self-cleaning filter can also adapt to various harsh environments, such as high temperature, low temperature, strong corrosion, etc., showing extremely high adaptability and stability.



Flexible control: A variety of control methods can be selected by you

The control mode of the fully automatic cleaning brush self-cleaning filter is very flexible, and different control modes can be selected according to actual needs. In addition to the common pressure difference control and time control, manual control and PLC control are also supported. The pressure difference control is to determine whether cleaning is required by measuring the pressure difference between the inlet and outlet of the filter; the time control is to automatically start the cleaning program according to the set cleaning cycle; the manual control allows the operator to manually start or stop the cleaning program at any time; and the PLC control can realize the remote monitoring and automatic management of the filter, which greatly improves the convenience and intelligence of operation.



Energy saving and environmental protection: Low energy consumption, high efficiency filtration

The fully automatic cleaning brush self-cleaning filter has very low energy consumption during operation. Since it uses electric brushes for cleaning, it does not need to consume a lot of water resources and cleaning agents, so it has higher energy saving than traditional filters. At the same time, the high-efficiency filtration performance of the filter can also reduce energy waste and further improve the overall energy saving effect. This makes the brush self-cleaning filter not only excellent in terms of economic benefits, but also has significant advantages in environmental protection.



Summary and Outlook: Huge Potential for Future Development

In summary, the fully automatic cleaning brush self-cleaning filter is playing an increasingly important role in the field of water purification due to its unique working principle, wide application field, flexible control method and energy saving and environmental protection characteristics. With the progress of science and technology and the continuous change of market demand, we have reason to believe that in the future development, the brush self-cleaning filter will continue to innovate and upgrade to provide people with more high-quality, efficient and intelligent water purification solutions.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
