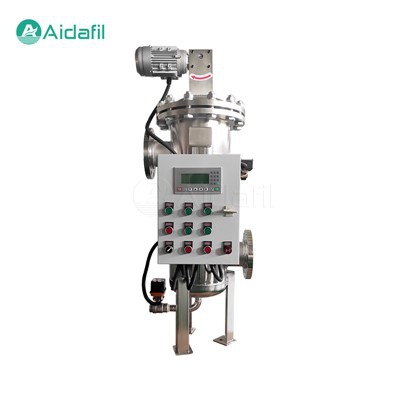

Easy-To-Operate Brush Type Self Cleaning Filter

The Easy-To-Operate Brush Type Self Cleaning Filter intercepts impurities in the water through the filter screen. When the impurities on the inner wall of the filter screen accumulate to a certain extent, the filter will automatically start the cleaning process. This process usually includes opening the automatic sewage valve and starting the motor to drive the cleaning brush in the filter screen to clean the filter element, and at the same time, the intercepted impurities are discharged from the sewage valve.

Parameters

***Comprehensive Parameters
Operating flow		50m³/h ~ 2500m³/h
Working pressure		2bar ~ 16bar (230psi)
Filter area		3000cm² ~ 20000 cm²
Inlet / outlet diameter		DN50 ~ DN900
Ultra-high operating temperature		80°C
***Cleaning Parameters
Blow-down valve	Cleaning time		Water consumption per cleaning
DN25; DN50; DN80	15 ~ 60S		≤ 1%

Working principle

The core part of the Easy-To-Operate Brush Type Self Cleaning Filter is a metal filter screen with holes. When the liquid passes through the filter screen, solid impurities are trapped on one side of the filter screen, while the clean liquid flows out from the other side.

As the filtration process progresses, a layer of dirt will gradually accumulate on the surface of the filter screen, resulting in a decrease in filtration efficiency. In order to solve this problem, the brush self-cleaning filter adopts a mechanical cleaning method. The surface of the filter screen is cleaned by one or more brushes to remove the entrapped impurities, thereby restoring the filtration performance of the filter screen.

Structure composition

The Easy-To-Operate Brush Type Self Cleaning Filter is mainly composed of the following parts:

1. Filter cartridge: The main part of the filter, which is equipped with a filter screen and a cleaning mechanism.

2. Filter housing: A key component for filtering impurities, usually made of stainless steel or other corrosion-resistant materials.

3. Cleaning mechanism: Usually composed of a brush, which is in contact with the inner surface of the filter screen to remove attached impurities.

4. Drain valve: Used to discharge impurities that fall off the filter during cleaning.

5. Control system: Used to control the start and stop of the cleaning process, as well as to adjust parameters such as the cleaning cycle.

Feature advantage

1. Automated operation. The brush type self cleaning filter can achieve unattended automatic operation, reducing labor costs and operation difficulty.

2. Continuous filtration. The cleaning process does not interrupt the filtration operation, ensuring the continuous and stable operation of the system.

3. High-efficiency cleaning. Through the physical cleaning action of a brush or scraper, impurities on the filter can be quickly and effectively removed to restore the filtration effect.

4. Low maintenance cost. Simple structure, few parts, low failure rate, relatively easy to maintain and low cost.

5. Wide applicability. Can be used for liquid filtration of various viscosities and contamination levels.

6. Energy-saving and environmentally friendly. No additional chemical cleaning agents are required, reducing the burden on the environment; at the same time, less wastewater is generated during the cleaning process.

Application field

1. Industrial water treatment. Used for filtration of cooling water, boiler water, process water, etc., to help protect equipment and improve process stability.

2. Agricultural irrigation. Used for irrigation water filtration in farmland, greenhouses, etc., to protect sprinklers and improve irrigation efficiency.

3. Food and beverage industry. Used for the filtration of raw water, alcohol, juice, etc. In the food and beverage production process.

4. Pharmaceutical industry. During the pharmaceutical process, water and other raw materials are filtered to ensure the quality and safety of medicines.

5. Other industries. Such as textiles, paper, oil and gas, mining, and other industries, filter various fluids.

Precautions

1. When selecting a brush type self cleaning filter, it is necessary to determine the appropriate filtration accuracy and processing flow according to the actual application.

2. Regularly check and maintain the filter to ensure its normal operation and extend its service life.

3. Under severe operating conditions, the cleaning frequency of the filter should be appropriately increased to avoid damage to the filter due to excessive contamination.

FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
