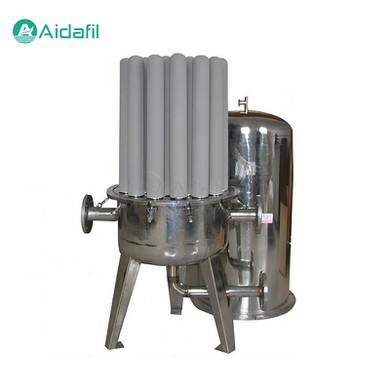

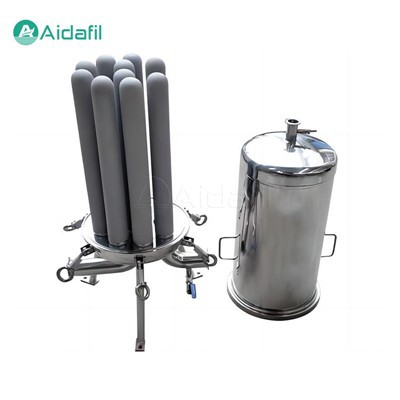

Advanced High Strength Titanium Rod Filter

The advanced high strength titanium rod filter uses titanium metal powder to make filter tubes by high temperature sintering, which not only provides excellent filtration efficiency, but also has excellent corrosion resistance and high temperature resistance, making it play a key role in water treatment, food industry, petrochemical industry and other fields. As a type of advanced filtration equipment, the titanium rod filter occupies an important position in industrial filtration with its excellent performance and wide application field.



Manufacturing process

1. Powder metallurgy technology

The core component of the advanced high strength titanium rod filter is the titanium rod filter element, which is manufactured using powder metallurgy technology. This technology involves sintering titanium powder at high temperature to form a filter element with a certain strength and porosity. This method ensures that the filter element has a uniform microporous structure, thus providing efficient filtration performance.

2. Material selection

High-purity titanium powders are selected as raw materials, which are widely used in medical, food and other fields due to their good biocompatibility and corrosion resistance. High-purity titanium powder can ensure that the filter element does not release harmful substances during use, ensuring the purity of the filter medium.



Parameters

Main materials	Stainless Steel 304, 316L
Filtering flow	3 - 100 t/h
Working pressure	0.1 - 0.6Mpa
Filter element specification	5'', 10'', 20'', 30'', 40''
Use temperature	-10 - 200°C
Filtering accuracy	0.45 - 100μm
Filter element connection	M20, M30, 222, 226
Titanium rod size	Φ60×300, Φ60×510, Φ60×750, Φ60×1000



Structural features

1. Aperture distribution

The advanced high strength titanium rod filters have a narrow pore size distribution, which means they can effectively remove particles within a specific diameter range. This precise pore size control makes titanium rod filters perform well in applications that require high-precision filtration.

2. Mechanical strength

Due to the high mechanical strength of the titanium material itself, the titanium rod filter elements can maintain their integrity and filtration effect even under high pressure, which makes them suitable for high-pressure filtration systems.



Performance advantage

1. Temperature resistance

The advanced high strength titanium rod filter can withstand extreme temperature conditions, whether in high or low temperature environments. This property makes them particularly useful in chemical processes, many of which involve high or low temperature operations.

2. Corrosion resistance

Titanium materials are highly resistant to most chemicals, including strong acids and alkalis, making titanium rod filters ideal for handling corrosive fluids.

3. Anti-microbial properties

The advanced high strength titanium rod filters are resistant to the growth of microorganisms, which is essential for maintaining the cleanliness and hygiene of the filter media, especially in the food and beverage industry.



Application field

1. Water treatment

In the field of water treatment, titanium rod filters are used to remove suspended solids and impurities from water, providing purer water. This is essential to ensure water quality safety and extend equipment life.

2. Food industry

In the food industry, titanium rod filters are used to ensure product quality and safety, and to prevent product contamination by removing impure substances from the production process.

3. Petrochemical industry

In the petrochemical industry, titanium rod filters are used to separate and filter solid particles from liquids, protecting equipment from wear and tear while also enhancing product purity.

Maintenance method

1. Cleaning method

In order to maintain the performance of the filter element, regular cleaning is required. Cleaning methods usually include backwashing and chemical cleaning to remove contaminants from the filter element.

2. Reuse

An important feature of titanium rod filters is that they can be recycled over and over again, which helps reduce long-term operating costs. With proper cleaning and maintenance, the filter element can restore its original filtration performance, thus extending its service life.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
