Sintered Steel Meshes Filter Element

Sintered steel meshes filter element is usually made with five-layer sintered meshes, namely protective layer, precision control layer, dispersion layer, reinforcement layer and reinforcement layer, with filter rating ranging from 1micron to 300micron. The five-layer meshes are sintered together in vacuum. The filter element is characterized by good permeability, high strength, easiness to clean, good corrosion resistance and durability. In addition to five-layer type, there are also six-layer type and so on. Customized service is available.

Product Features

1.High porosity and excellent penetration rate, low initial pressure difference, less pressure loss, fast velocity of flow, large flow rate, precise and uniform pore size, uniform fluid distribution, and good retention and purification effect;

2.Large sewage holding capacity, high filtration accuracy, slow pressure curve rise during use, and long replacement cycle;

3.Excellent temperature and corrosion resistance, ability to use for a long time in such complex environments as ultra-high temperature, rapid cooling and rapid heating, resistance to corrosion of nitric acid, alkali, organic solvents, and medicines;

4.High strength, stable precision in ultra-high pressure and differential pressure environment, no fibre shedding even if the liquid and gas are strongly washed and vibrated;

5.Wide range of filtration accuracy to meet various application requirements;

6.Produced by unique ultra-precision welding technology, and is firm and durable and has no release of fluid pollution;

7.Can be treated by backblow cleaning, backwash cleaning, ultrasonic cleaning, chemical method, online steam sterilization, etc.

8.Can be cleaned and regenerated, and can be used repeatedly after washing, with good economy.

Product Applications

Mainly serve in filtration of polyester, oil products, chemicals and pharmaceutics, also used in filtration of pure water and gas.

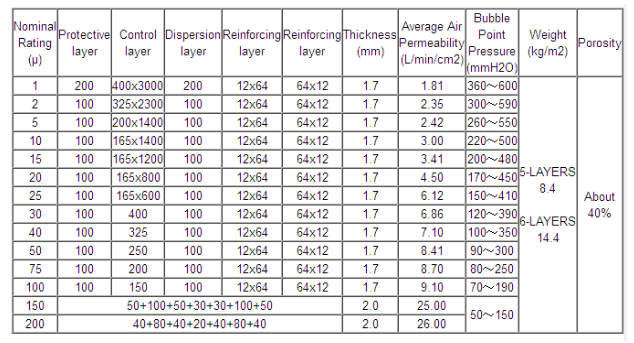

Product Parameter

Standard size: 500*1000mm, 600*1200mm, 1000*1000mm, 1000*1200mm

Filtering accuracy: 1μm - 300μm

Standard material：SUS304、SUS316L

Customized service available
