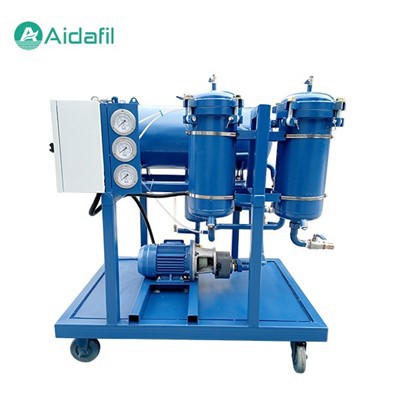

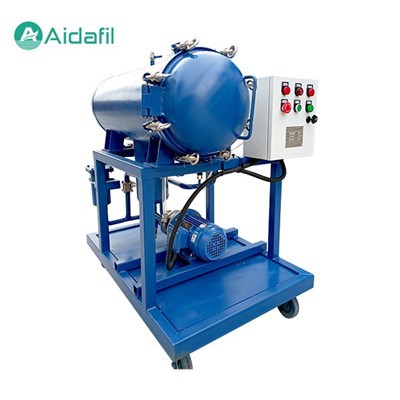

Coalescence Dehydration Oil Filter
With efficient dehydration effect, Coalescence Dehydration Oil Filter can get rid of all the oil-water emulsification media structure. Through filtration and particle filtration system, the cleanliness of the medium can be controlled in a stable state.No need to change the physical and chemical properties of the oil, extending the service life of the oil.
With efficient dehydration effect, it can get rid of all the oil-water emulsification media structure. Through filtration and particle filtration system, the cleanliness of the medium can be controlled in a stable state. No need to change the physical and chemical properties of the oil, extending the service life of the oil.
Functions
It possesses two functions: precise filtration and high efficiency dewatering. It adopts advanced "cohesive separation" technology for dehydration. It has high dewatering efficiency and strong dewatering capacity. Through the filtration of multi-stage particle filtration system, the cleanliness of the medium can be stably controlled in the state required by the system to ensure the cleanliness of the oil.
Features
The use of high-efficiency filter material as filter medium and the design of super-large filter area can effectively filter out extremely fine particles and impurities, so that the engine oil can reach a high degree of cleanliness.
The separation filter element of the separation system is made of special hydrophobic material.
Store the separated water in the water storage tank. It has low consumables and maintenance costs.
It is suitable for turbine lubricating oil, hydraulic oil, diesel oil, heat transfer oil, medium oil, etc.
Product parameters
| Model | A0P-D25 | AOP-D50 | A0P-D100 | AOP-D150 | A0P-D200 | AOP-D400 |
| Rated flow(L/min) |
25 |
50 |
100 |
150 |
200 |
400 |
| Rated pressure(MPa) | 0.6 | |||||
| Initial pressure loss (Mpa) | ≤0.1 | |||||
| Filtered water content | ≤100 | |||||
| Coarse filtration( μ m) |
100 |
|||||
| Grade 1 filter rating( μ m) | 10、20 | |||||
|
Grade 2 filter rating( μ m) |
3、5 | |||||
| Pressure differentials | 0.2Mpa | |||||
| Working temperature(°C) | 25- 80 | |||||
| Recommended viscosity(cSt) | 10-120 | |||||
| Voltage(V) | AC 380V(Three-phase)、50Hz | |||||
| Motor power(kw) |
0.75 |
1.1 |
2.2 |
4 |
5.5 |
13 |
| Weight(kg) |
150 |
200 |
300 |
520 |
860 |
2860 |
| Dimensions(mm) | 1200x 800x1250 | 1350 x800x1400 | 1740x 980x1450 | 1800x1000x1540 | 1840x1050x1780 | 3180x 1600x2000 |
