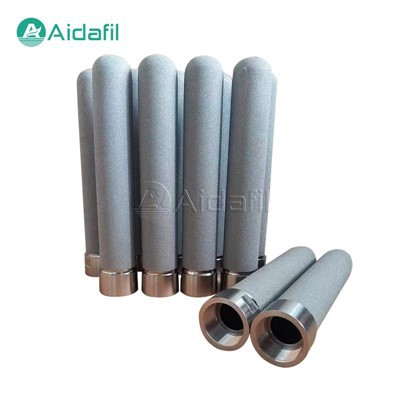

Sintered Metal Filter Powder Element

Sintered metal filter powder element has fine filtration accuracy with filtration efficiencies from 0.1μm to 200μm. It is produced by cold isostatic processing and boasts high mechanical strength and superior quality of corrosion resistance, so that a long service life can be achieved. It can still exhibit excellent performance in high temperature and highly corrosive environments. We provide customization service. Widely used in petrochemical industry, fine chemical industry, pharmaceutical industry, metallurgical industry, food industry and other fields.

Product Feature

1.Good chemical stability

2.Acid and alkali resistance, corrosion resistance, and can be used in a large pH range

3.High mechanical strength

4.High filtration precision, long service life, can be cleaned and repeatedly utilize

5.Large dirt-holding capacity

6.Uniform pore size distribution, high separation efficiency

7.Strong anti-microbial ability, not interacting with microorganism

8.No particulate matter shedding, no secondary pollution of the medium

9.Reliable quality

Product Parameter

·Material: titanium power, stainless steel powder, etc.

·Filter Media: titanium powder sintered, SUS316 powder sintered.

·OD: 10mm, 20mm, 30mm, 40mm, 50mm, 60mm, 70mm, 80mm, etc.

·Thickness of wall: 1.0mm, 2.0mm, 3.0mm, 4.0mm, 5.0mm, etc.

·Length: 10", 20", 30", 40".

·Connectors: DOE, SOE, tire rod, thread (NPT, BSP, Metric) screw, flange, 220, 222, 226 (Code7).

·Working Temperature: -200 - 1000°C.

·Connection: Customized according to customer requirements

Product Application

·Catalyst filtration

·Filtration in food and beverage industry

·Medical industry

·Chemical industry

·Metallurgical industry

·Field of gas purification

·Aerospace industry
