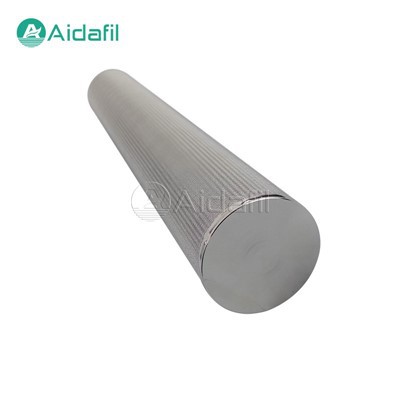

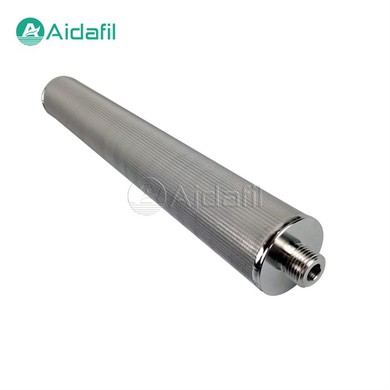

Metal Fiber-based Liquid Filtration Cartridge

Metal fiber-based liquid filtration cartridge, as its name implies, is produced for the filtration of liquid like water, oil. The characteristic of metal fiber --- high porosity --- brings about the advantages of low pressure drop, high flow rate as well as high permeability, which are beneficial to liquid filtration. The filtration efficiency is high, the filtration resistance low, and contaminant retention capability is strong.

Feature

· High mechanical strength, good rigidity and extremely stable precision

· Low filtration impedance, good permeability

· High pressure resistance, shock resistance, good abrasion resistance

· Good cold resistance and heat resistance

· Resistant to strong alkaline corrosion, strong acid corrosion and other working environments

· High efficiency

· Long service life

Parameter

· Accuracy: 1-300μm

· Standard size: 1000mm x 500mm, 1000mm x 1000mm

· Standard material: stainless steel 316L, 304

· Diameter: 30, 50, 60, 65, 80mm

· Length: L100-1500mm

· Product customization service is available

Application

Liquid filtration and separation: oil, water, etc.
