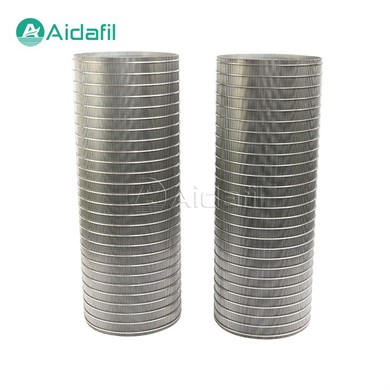

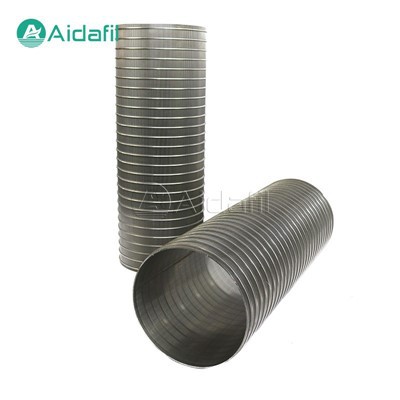

Slot Tubes Filter Element

Slot tubes filter element is effectively in the filtration of hydrous, viscous, high-viscous and pasty media. It has precise shape and requires simple and time-saving maintenance without special tools and enjoys a long service life with low operation costs. It provides a large filtration area and reduces the chance of solids clogging inside the filter element. Two direction of the flow through the filters can be selected. Custom design is allowed.

Advantage

· High mechanical strength, great chemical and mechanical durability

· Anti-deformation

· Even filtration gap

· Little possibility of blockage, easy in cleaning and backwashing

· Corrosion resistance, rust-proof

· Long service life

· Available in varied specifications

Specification

· Filtration accuracy of 25-800μm.
· Outer diameter: 19-914m, continuous length up to 6 meters.
· Section diameter of common-used circular support rods is 2-6mm; width of common-used bar-type support rods is 1.5-4mm, and height is 6-40mm.
· Length of the flat filter wires can reach 1800mm, and the support rods can reach 3000mm.
· Material: stainless steel 302、304、304L、316、316L.

· Working temperature: high temperature resistance.

· Application fields: petrochemical industry, sewage treatment and flood system, mineral processing, paper making and food processing.

· Surface: smooth and bright.

Application

Mainly used for filtration, separation and dehydration of liquids, particles and powders in chemical industry, paper-making industry, mining industry, brewing industry and oil and gas industry, etc.
