Sintered Metal Filter Disc

We produce various specifications of hydraulic filter elements, air compressor filter elements, water filter elements and various metal filter elements. At the same time, we support well-known brands such as the United States, Germany, Italy to replace filter elements. We can also customize filter elements according to actual needs. Welcome to contact us.

Sintered Metal Filter Disc

1. Sintered metal filter disc, also known as sintered wire mesh filter disc, is a new filter disc product. Sintered metal filter disc is the combination of multi-layer filter disc. Such as woven filter disc and perforated filter disc.

Sintered metal filter discs are classified according to their materials, which can be divided into stainless steel sintered filter discs, galvanized sintered filter discs, copper sintered filter discs and bronze sintered filter discs. Among them, stainless steel sintered filter discs are the most popular. The stainless steel sintered filter disc is first sintered in a vacuum furnace and then cut by a laser cutting machine. It generally includes 5 layers such as protective layer, filter control layer, dispersed framework layer, and framework support layer. As the picture shows:

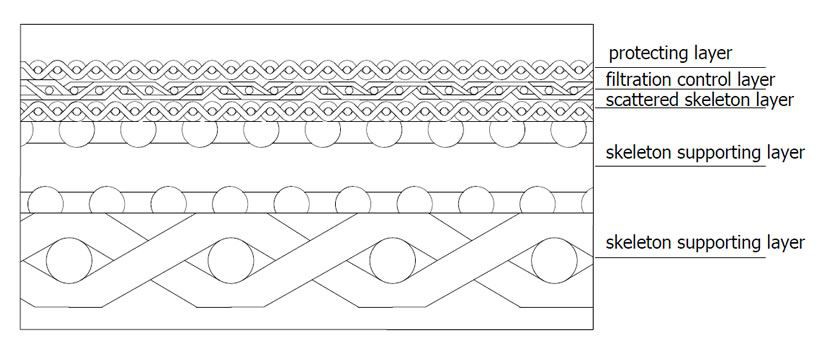

The structure of sintered filter disc: protecting layer, filtration control layer, scattered skeleton layer, skeleton supporting layer.

Specification

• Filter materials: iron, stainless steel, brass, etc.

• Wire diameters: 0.02 mm - 2.03 mm.

• Discs diameters: 5 mm - 600 mm (custom size: 8 mm - 3800 mm).

• Weaving type: plain weave, twill weave, dutch weave, etc.

• Filter shapes: round, ring, square, rectangular, oval, etc.

• Layers: five layers or multiple layers.

• Filtration rate: 0.2 µm - 300 µm.

• Process technique: spot welded, edge covering and sintering.

• Marginal materials: stainless steel, copper, aluminum, rubber, etc.

Features

Good permeability and high dirt-holding capacity.

High temperature and pressure resistance.

Excellent corrosion resistance: acid and alkali resistance.

Excellent mechanical properties: easy cutting, easy welding.

Accurate and steady filtration rate.

Cleanable and reusable.

Long service life.

Applications

Sintered metal filter disc with accurate filtering efficiency and long working life, the same as stainless steel filter disc and copper filter disc, is the ideal filtering instrument for filtering and screening. And it is widely applied in electronic industry, petroleum industry, environmental protection and sewage treatment, pharmaceutical industry, etc.

Company Certifications

FAQ

1. How is the quality of filters?

Quality is the life. Quality is best. Quality is everything.

2. Can you design filters according to the working condition?

No problem. We have a strong technical team. Please dont worry.

3. What is the production time?

About 7-10 working days usually. Will confirm again with you before production.

4. What are your advantages of the metal products?

High temperature resistance, corrosion resistance, long service life.

5. Is your product original or replacement?

We do replacement filter, we can guarantee for use and performance, not 100% look like. What attracts you first is our price; What amazes you is our ultimately quality; From "may wish to use AIDA FILTER"; To "always follow AIDA FILTER"

6. Do you have distributor in my country?

Our products sell well in the world, we have distributors all over the world. AIDA filter is hot-selling in local, I will ask my distributor to contact you.
