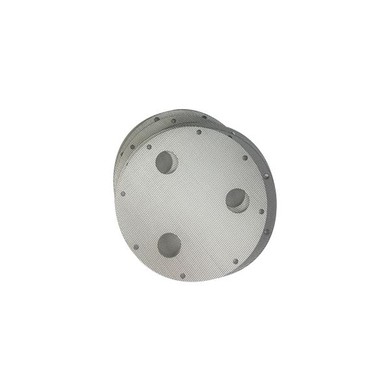

Sintered Filter Disc
Sintered filter disc is made of multi-layer sintered woven mesh - plain dutch weave and plain weave type. As an important type of sintered metal filter mesh, our sintered filter discs can be manufactured in split and integral type used for drying and filtering.
We produce various specifications of hydraulic filter elements, air compressor filter elements, water filter elements and various metal filter elements. At the same time, we support well-known brands such as the United States, Germany, Italy to replace filter elements. We can also customize filter elements according to actual needs. Welcome to contact us.

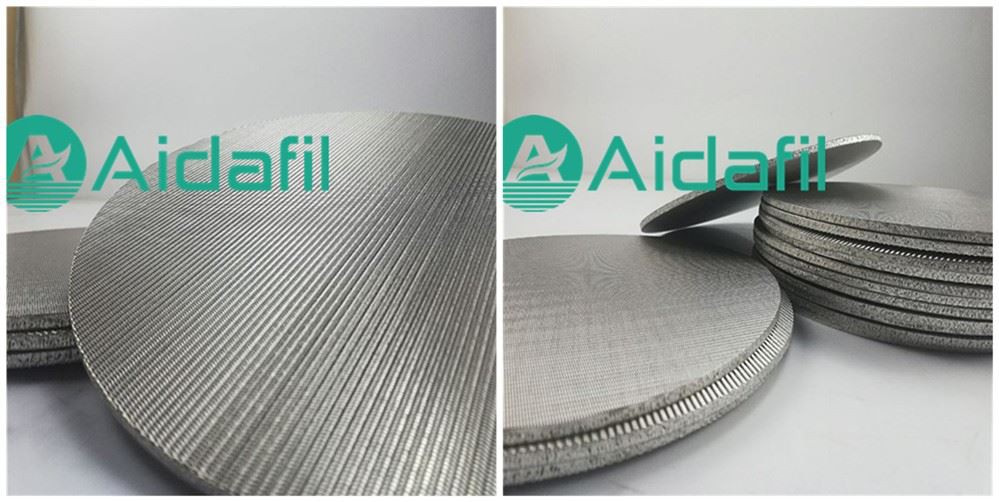

Sintered Filter Disc
1. Sintered filter disc is one of the important types of sintered metal filter screen. The sintered filter disc produced by our Aida Machinery Company is mainly used for drying and filtering, and can be reused and cleaned many times. The sintered filter disc has a long service life and is widely used in drying, gas and liquid filtration in the pharmaceutical, petrochemical, food industry and chemical fiber industry.
We can supply sintered filter discs in the size:
● Material: Monel wire and stainless steel AISI304, AISI316, AISI316L.
● Diameter: 10 mm to 3000 mm.
● Filter Rate: 2 microns to 300 microns.
● Thickness: 1 mm to 5 mm.
● Heat resistance: -200 °c - 600 °c continuous filtration.
Sintered filter disc can be made into multiple sizes and shapes for customization
Code | A（mm） | B(mm） | H(mm) | Filtering area（㎡） |
LF-4.4 | 111.1 | 38.1 | 5.6-10 | 0.014 |
LF-7A | 177.8 | 47.6 | 5.6-10 | 0.041 |
LF-7B | 177.8 | 63.5 | 5.6-10 | 0.037 |
LF-7C | 177.8 | 85.2 | 5.6-10 | 0.029 |
LF-8 | 203 | 63.5 | 5.6-10 | 0.052 |
LF-8.8A | 222.3 | 63.5 | 5.6-10 | 0.066 |
LF-8.8B | 222.3 | 76.2 | 5.6-10 | 0.063 |
LF-8.8C | 222.3 | 65 | 5.6-10 | 0.06 |
LF-10 | 252 | 85 | 5.6-10 | 0.08 |
LF-11.4 | 290 | 76.2 | 5.6-10 | 0.114 |
LF-11.7 | 297.2 | 85 | 5.6-10 | 0.116 |
LF-12A | 304.8 | 85 | 5.6-10 | 0.12 |
LF-12B | 304.8 | 63.5 | 5.6-10 | 0.13 |
LF-13.2 | 335 | 72.5 | 5.6-10 | 0.155 |
Sintered filter disc panel has the features as follow
Resistance to high temperature, high pressure, corrosion, acid, and alkali.
High strength, high filter rating, good dirt holding capacity, repeated washing.
Specific Uses
Seawater desalination, sterile air filtration in brewing industry.
Mixing and purifying gas in chemical fiber.
Pressure-air filtration in aviation and transportation.
Gas filtering and catalytic gas filtration in oil industry.
Dust removal in environmental protection, recovery of precious metal catalytic, etc.
Company Certifications
FAQ
1. Can you checking shipping cost for us?
Yes! We have long cooperated forwarder. He can check competitive shipping cost and arrange delivery for us. By the way, he is responsible for our goods. You can be relax and dont worry.
2. Which countries have you exported to?
We have been exporting for 18 years and have exported to many countries. Like America, Canada, Germany,Poland,South Africa, Singapore, Thailand, Kazakhstan including Bangladesh and so on.
3. How do you package products?
Regarding these metal products, first include the internal film bag, then use a special bubble film packaging, and finally the wooden box packaging.
4. Do you accept OEM?
A: Yes. we can produce according to your requirement.
5. What is your MOQ?
A: We can accept 1pcs sample. If more quantities, more favorable price.
6. How long is your Delivery Time?
A: If there has stock, the delivery time is about 5 working days after receiving your payment.
