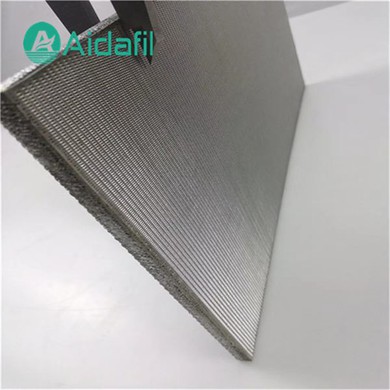

Sintered Wire Mesh

Sintered Wire Mesh for Purification and Filtration

Sintered wire mesh is made of multi-layer metal braided wire mesh through special lamination pressing and vacuum sintering. It is a new filter material with high mechanical strength and integral rigid structure, the mesh holes of each layer are interlaced with each other to form a uniform and ideal filter structure.It not only overcomes the shortcomings of low strength, poor rigidity and unstable mesh shape of ordinary metal wire mesh, but also can reasonably match and design the pore size, permeability and strength characteristics of materials. So it has excellent filtration precision, filtration impedance, mechanical strength, wear resistance, heat resistance and processability. The comprehensive properties are better than other kinds of filter materials such as sintered metal powder, ceramic, fiber, filter cloth, filter paper and so on. At present, the series of multi-layer sintered metal mesh products developed and produced by our company has been widely used in the fields of filtration and purification, gas-solid, liquid-solid and gas-liquid separation, divergent cooling, gas distribution, air floatation transfer, fluidized bed, gas sample collection, shock absorption, silencing, flame retardant and so on, and these aspects have been widely used in aviation, aerospace, petroleum, chemical engineering. Metallurgical, mechanical, pharmaceutical, food, synthetic fiber, film, environmental protection and other industrial fields.

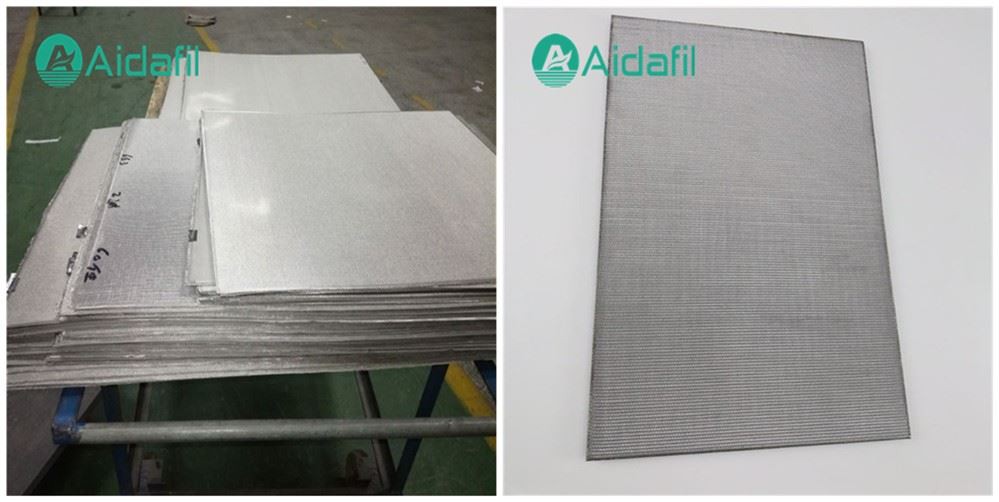

The most commonly used sintered wire mesh is the standard five-layer sintering mesh. Its structure and characteristics are as follows:

● The standard five-layer sintered wire mesh consists of a protective layer, precision control layer, dispersed layer and a multi-layer reinforcement layer.

● Filter mesh not easy to deform because of two protective layers.

● Can used for uniform filtration in high pressure or high viscosity environment.

● Suits for cutting, bending, punching, stretching, and welding

● High-strength: After the five layers of wire mesh are sintered, the mechanical strength and compressive strength are very high.

● High-accuracy: The filtration granularity of 1-100um can play a uniform surface filtration performance.

● Heat resistance: Resistant to continuous filtration from -200 to 600 degrees.

● Cleanliness: Because of the excellent surface filtration structure with excellent reverse flow cleaning effect, simple cleaning .(It can be cleaned by reverse flow of water, filtrate, ultrasonic, melting, baking, etc.)

Application Fields

● Precision filtering of various hydraulic oil lubricants in mechanical industry.

● Filtration and purification of polymer melt in Chemical fiber film industry, petrochemical industry in various high temperature, corrosion liquid filtration, pharmaceutical industry materials filtering, washing, drying.

● Application of Gas homogenization in Powder Industry, Sulfur plates in the steel industry.

● Sound splitter in explosion-proof electrical appliances.

Specifications

● The standard material is SUS304 (AISI304) / SUS316 (AI-SI316) / SUS316L (AISI316L), which can also be customized for special alloys such as Hartstone, Monel, Inconel, etc.

● Standard size: 500*1000mm、600*1200mm、1000*1000mm、1000*1200mm

● Filtering accuracy: 1-300um

● Aperture ratio: 37%

● Gram weight: 8.4kg/m²

● Special specifications can be supplied according to the requirements of the buyer.

Company Certifications

FAQ

1. Can you checking shipping cost for us?

Yes! We have long cooperated forwarder. He can check competitive shipping cost and arrange delivery for us. By the way, he is responsible for our goods. You can be relax and dont worry.

2. Which countries have you exported to?

We have been exporting for 18 years and have exported to many countries. Like America, Canada, Germany, Poland, South Africa, Singapore, Thailand, Kazakhstan including Bangladesh and so on.

3. How do you package products?

Regarding these metal products, first include the internal film bag, then use a special bubble film packaging, and finally the wooden box packaging.

4. Can you help us delivery if we have TNT account?

Yes. TNT account will be good. Then you can place order to TNT, We can deliver goods to Zhengzhou TNT station for you. Our many customers delivery goods by this way.

5. How long is your products warranty period?

A: It depends on working condition. Different type of filters different long life span.
