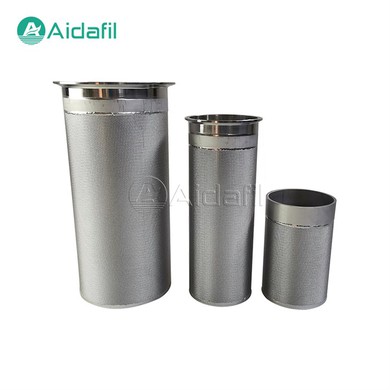

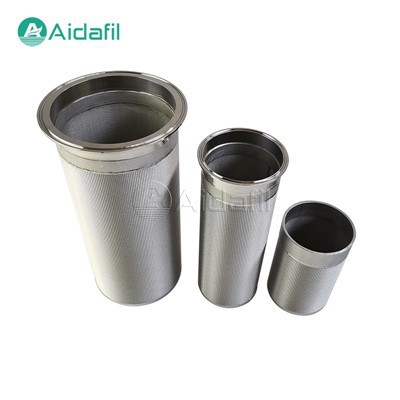

Porous Sinter Metal Cartridges

Porous sinter metal cartridges are replaceable filter elements usually cylindrical in shape, made by sintering, a process that compacts and forms a solid material without melting it. This creates a porous structure that allows fluid to pass through while trapping and retaining unwanted particles. This kind of cartridges is normally appplied in such industries as water treatment, air purification, industrial process, pharmaceutical, food and beverage, automotive and more.

Product Feature

·High mechanical strength, good stability

·Uniform pore size and aperture distribution, consistent filtration efficiency

·Outstanding resistance to high temperature and high pressure, chemical stability

·Easy to clean and maintain, reusable

·Low filtration impedance, good permeability

·Good comprehensive performance

Product Parameter

·Filtration accuracy: 0.2um-100um

·Porosity: 28-50%
·Compressive strength: 0.5-3mpa

·Temperature resistance: 300. C (wet state)

·Significant working pressure difference: 0.6mpa

·Diameter: 0.5-200mm

·Length: from 1 inches (25mm) to 40 inches (1000mm)

·Interface type: M20 M30 222 226

·Filtration accuracy: 0.2 micron 1, micron 3, microns, 5 microns, 10 microns, 20 microns, 30 microns, 50 microns, 80 microns, and 100 microns.

Product Application

Porous sinter metal cartridges can be used in

·Petrochemicals and refineries

·Pharmaceutical indiustry

·Food and beverage

·Water treatmen

·Aerospace

·Oil and gas

·Chemical processing

·Electronics and semiconductors

They are used in the filteration, separation, gas diffusion, and fluidization processes which require

precise particle removal and durable filtration media.
