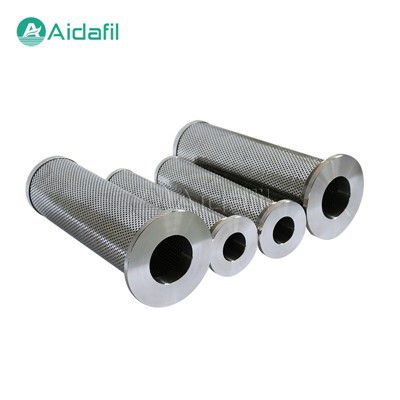

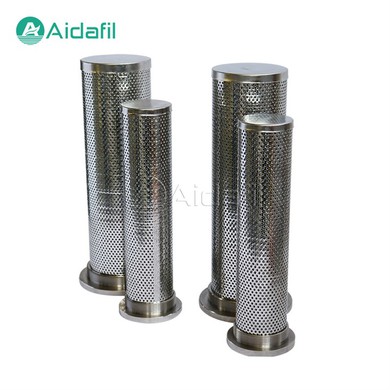

High-efficiency Metal Fiber Media Filter Element

As the name indicates, the most prominent point of the high-efficiency metal fiber media filter element represents the high filtration efficiency and the dramatic filtering effect. Metal fiber produces media with a high fraction of void space and up to 90% porosity, resulting in low pressure drops, high flow rates and high permeability. The high-efficiency metal fiber media filter element has excellent heat, pressure and corrosion resistance, and is suitable for high temperature, high viscosity fluid filtration.

Product Advantage

· High-precision welding, original standardized technology

· High mechanical strength, good rigidity and extremely stable precision. The high pressure resistance is very outstanding, especially suitable for occasions with high compressive strength and uniform filter particle size requirements

· Low filtration impedance, good permeability

· High pressure resistance, shock resistance, good wear resistance

· Good cold resistance and heat resistance

· Resistant to strong alkaline corrosion, strong acid corrosion and other working environments

· Good comprehensive performance. It has special advantages such as high precision, high efficiency and long service life.

Product Parameter

· Accuracy: 1-300μm

· Standard size: 1000mm x 500mm, 1000mm x 1000mm

· Standard material: stainless steel 316L, 304, 321

· Diameter: 30, 50, 60, 65, 80mm

· Length: L100-1500mm

· Product customization service is available

Product Application

· Viscose filtration.

· Special oil filtration (aviation kerosene, transformer oil, etc.).

· Steam and high temperature gas filtration.

· High viscosity chemical solution filtration.

· Separate the mist (gas-liquid separation).

· High molecular polymer filtration (nylon, engineering plastics, carbon fiber, PET, PTMEG, etc.).

· High temperature gas filtration in ethylene project.

· High temperature dust filtration.

· Gas filtration in coal chemical industry.
