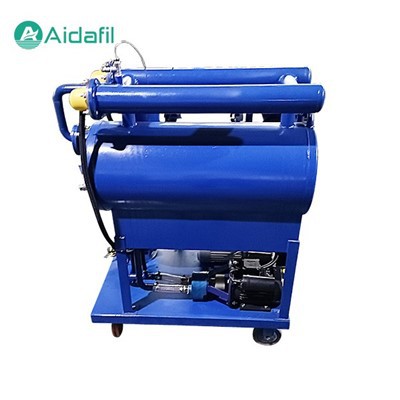

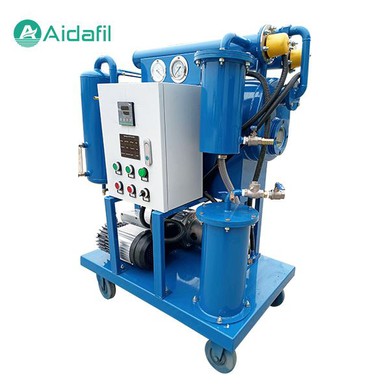

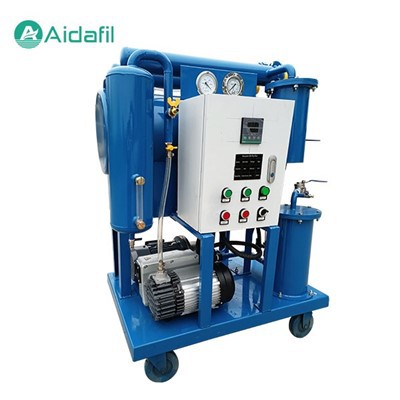

Vacuum Oil Filter Machine
Vacuum oil filter machine can quickly separate metal impurities, carbon residue, colloids, suspended solids, emulsions and other pollutants from newly produced oil.
Vacuum oil filter machine can quickly separate metal impurities, carbon residue, colloids, suspended solids, emulsions and other pollutants from newly produced oil.
Applicaions:
● Lubricating oil
● Transformer oil
● Turbine oil
● Compressor oil
● Cooling mineral oil
● Insulating oil
● Gear oil
● Engine oil
Advantages:
● Efficiently remove water, gas and dust.
● Removing 100% free water and gas, and up to 80% dissolved water and gas.
● Prolonging the service life of liquid.
Product parameters
| Model | AOP-1V-25 | AOP-1V-32 | AOP-1V-50 | AOP-1V-100 | AOP-1V-150 | AOP-1V-200 |
| Flow rate(L/min) | 25 | 32 | 50 | 100 | 150 | 200 |
| Working pressure(Mpa) | 0.6 | |||||
| Rated vacuum(Mpa) | ≤ - 0.095 | |||||
| Water content | 5 - 30 | |||||
| Air content | ≤0.2% | |||||
| Coarse filtration(μm) | 100 | |||||
| Grade 1 filter rating(μm) | 10、20 | |||||
| Grade 2 filter rating(μm) | 3/5 | |||||
| Pressure differentials | 00.2Mpa | |||||
| Voltage(V) | AC 380V(Three-phase)、50Hz | |||||
| Motor power(kw) | 18 | 26 | 36 | 65 | 65 | 135 |
| Weight(kg) | 360 | 470 | 680 | 840 | 960 | 1500 |
|
Dimensions(mm) |
12500x920x1600 | 1350x980x1600 | 1500x1060x1800 | 1600x1080x2100 | 1800x1200x2200 | 2000x1200x2200 |
Note: * -is filter's rating,such as 03 is 3 microns.
**-is the suitable medium, Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate
hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
****-explosion-proof type: add F before type, Omission: normal type
