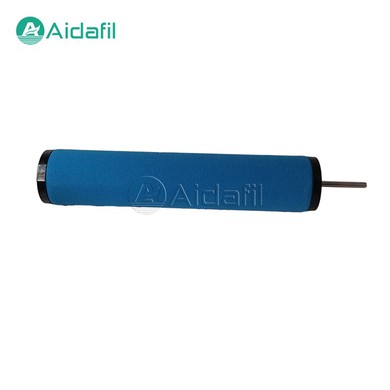

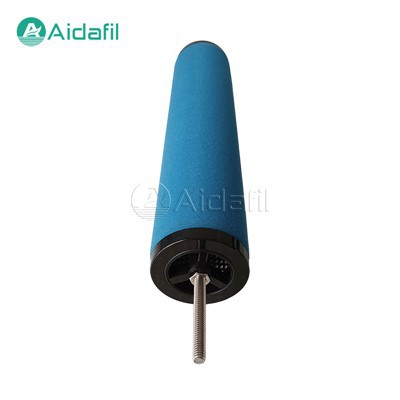

High Precision Inline Filter E3-32-IN

If you're looking for a high precision inline filter to enhance the efficiency of your manufacturing systems, then the E3-32-IN is just what you need!



High Precision Inline Filter E3-32-IN is engineered using the latest technology and top-quality materials and is designed to remove particles as small as 0.01 micron. This means that it can effectively capture even the tiniest contaminants, ensuring pure and clean fluids for your application.



The E3-32-IN filter element is made to offer long service life. Its robust construction ensures durability, while its easily replaceable filter element makes maintenance hassle-free. This means that you can enjoy uninterrupted filtration performance for an extended period. Additionally, the E3-32-IN can significantly improve the performance of your equipment. By blocking out impurities that can damage your machinery, the E3-32-IN ensures that your production lines run smoothly and efficiently



The high precision inline filter E3-32-IN has a wide range of applications. It is suitable for different industries such as automotive manufacturing, medical processes, food, and beverage processing, among others. The high precision inline filter E3-32-IN can also be installed in compressed air systems ranging from small to large applications.



For anyone in need of a high-efficiency in-line filter, high precision inline filter E3-32-IN is the perfect solution. With its advanced design, compact size, and wide range of applications, the filter offers an excellent performance-to-cost ratio, making it a top contender in the industry. Give it a try, and you will definitely appreciate its superior performance levels.



Advantage & Feature

· Heat temperature resistance

· Corrosion resistance

· Low airflow resistance

· High mechanical strength

· Better technology and best materials.

· Strong technical support and good command of manufacturing process

· Each piece is tested in accordance with high international standard.

· Easy to put up and replace

· Lead time is shorter.



Parameter

· Part Number: E3-32-IN

· Filter Type: Compressed inline filter

· Filtration Material: Glass fiber, filtration paper, activated carbon

· Filtration Efficiency: 99.9999%

· Change Interval: 12 months

· Working temperature: -10 ~ 80°C

· Flow rate (m³/min/0.7mpa): 7.2

· Filter diameter (mm): 68

· Filter height (mm): 335

· Filtration accuracy: 0.01μm

· Maximum remaining oil content: 0.001ppm w/w



Application

· Industrial manufacturing machine

· Food and beverage

· Automotive

· Electronics

· Pharmaceuticals

· Medical and dental usage

· Petroleum

· Metallurgy



FAQ

Q: Are you factory or trading company?

A: We’re factory with many years designing and manufacturing experiences.



Q: Will you provide samples?

A: Yes, but you need to pay for freight cost.



Q: Can i make the payment online?

A: Yes. You can direct make an order and pay it through Alibaba.



Q: Do you have warranty?

A: The filter’s warranty is one year. When it starts work, the lifetime depends on the working

environment (like pressure, temperature, and particle /dust content etc)



Q: May you do OEM Service?

A: Yes.
