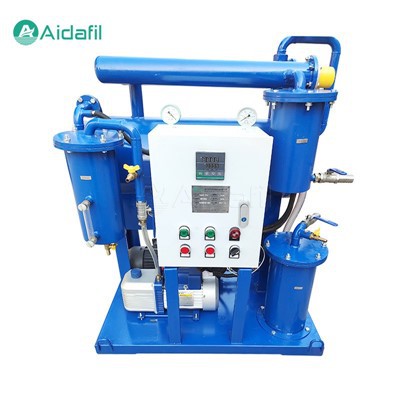

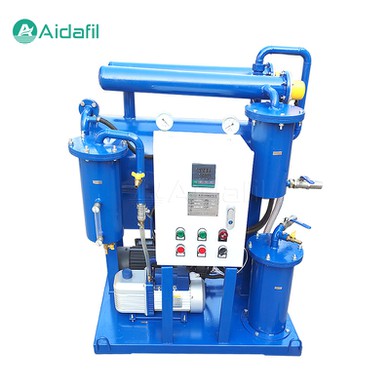

High Efficiency Compressor Oil Vacuum Oil Purifier

Compressor oils are subjected to severe conditions while operating, including high temperatures, shear stress, and exposure to various gases and particles. These factors can cause the oil to degrade, leading to a decrease in its viscosity and increased tackiness. As a result, the compressor's performance may be compromised, and its lifespan reduced. Additionally, the contaminants present in the oil can cause abrasive wear on the compressor's internal components, leading to increased maintenance costs and potential machine failure.



Therefore, it is essential to regularly purify the compressor oil to maintain its quality and extend the compressor's lifespan. High efficiency compressor oil vacuum oil purifiers are designed to achieve this by effectively removing water, sludge, gases, and other impurities from the oil.



The high efficiency compressor oil vacuum oil purifier uses a high vacuum technology to remove water and gases from the compressor oil, ensuring a dry and clean product. The oil purifier is equipped with high-quality filters that can remove particles and impurities from the oil, reducing its viscosity and improving its overall quality. It has an intelligent control system that allows for automatic operation, monitoring, and adjustment of the purification process, making it easy to use and maintain. The purifier is designed to minimize waste and reduce the need for frequent oil changes, contributing to a more sustainable industrial environment.



Product Parameters

Flow rate	L/H	600	1200	1800	3000	6000	9000	12000	18000
Work vacuum	MPa	-0.06 ~ -0.096
Work pressure	MPa	≤0.5
Temperature control range	°C	20 - 80
Power source	V	380V/50HZ or 220V
Working noise	dB(A)	≤78
Gross power	kw	18	23	34	44	66	99	131	160
Demulsification value	min	≤30
Water content	ppm	≤100
Gas content	%	≤0.01
Filtration accuracy	μm	5 microns
Cleanliness	NAS	Level 6-9



Key Features

1. High-performance filtration system

The high efficiency compressor oil vacuum oil purifier incorporates multi-stage filtration elements, including fine-mesh filters, coalescing filters, and adsorbent media, which collectively provide exceptional contaminant removal efficiency. These filters capture solid particles, water droplets, and dissolved impurities, ensuring the oil remains clean and free from particulate matter, varnish, and sludge.

2. Vacuum dehydration technology

The core of this purifier lies in its vacuum dehydration system, which utilizes a powerful vacuum pump to lower the oil's boiling point, facilitating the efficient evaporation and subsequent separation of entrained and dissolved moisture. This process ensures that the oil's water content is significantly reduced, preventing corrosion, oxidation, and potential damage to the compressor's internal components.

3. Gas discharge mechanism

Equipped with advanced gas discharge valves and a dedicated gas separator, the purifier effectively removes non-condensable gases (e.g., air, nitrogen, and hydrocarbons) that can compromise the oil's insulating properties and contribute to cavitation or foam formation within the compressor.

4. Integrated heating system

The unit incorporates an electric heating element or a heat exchanger to preheat the oil, enhancing the separation of contaminants and moisture under vacuum conditions. This feature also helps maintain a consistent oil viscosity, ensuring smooth operation and reducing energy consumption during the purification process.

5. Automatic operation and monitoring

The high efficiency compressor oil vacuum oil purifier typically features an intelligent control system with intuitive touch-screen interfaces, enabling automatic operation, real-time monitoring of oil condition parameters (e.g., temperature, pressure, moisture content), and programmable alarms for maintenance reminders or abnormal conditions. Some models may also include remote monitoring capabilities via ethernet or other communication protocols.



Applications

The high efficiency compressor oil vacuum oil purifier finds applications in various industries, including:

Manufacturing

Chemical processing

Oil and gas production

Power generation

Food and beverage processing

Pharmaceutical production

Automotive manufacturing



Maintenance and Usage Tips

To ensure optimal performance and longevity of the high efficiency compressor oil vacuum oil purifier, users should follow these maintenance and usage tips:

1. Regularly inspect and clean the filters to prevent clogging and maintain efficient operation.

2. Monitor the oil level and replenish as needed, ensuring that the purifier is always filled with sufficient oil.

3. Perform regular maintenance checks, adhering to the manufacturer's recommendations.

4. Train personnel on the proper operation and maintenance of the oil purifier to minimize the risk of accidents and misuse.



FAQ

1. What is an oil purifier, and how does it work?

An oil purifier is a device designed to remove impurities and contaminants from used oil, making it suitable for reuse or safe disposal. It works by passing the oil through various filtering elements, which trap the particles and impurities while allowing clean oil to pass through.

2. What types of oils can be filtered using an oil purifier?

Oil purifiers can be used to filter various types of oils, including the transformer oil, turbine oil, lubricating oil, hydraulic oil.

3. Can I dispose of the filtered oil safely?

Yes, once the oil has been filtered, it can be disposed of safely, provided that it meets the local regulations and guidelines for waste oil disposal. Be sure to check with your local authorities or waste management companies to determine the proper procedures for disposing of filtered oil in your area.

4. Is it cost-effective to invest in an oil purifier?

Investing in an oil purifier can be cost-effective in the long run, as it allows you to reuse filtered oil, reducing the need for frequent oil changes and the associated costs. Moreover, maintaining clean oil helps extend the life of equipment and reduces the likelihood of costly repairs due to premature wear and tear.
