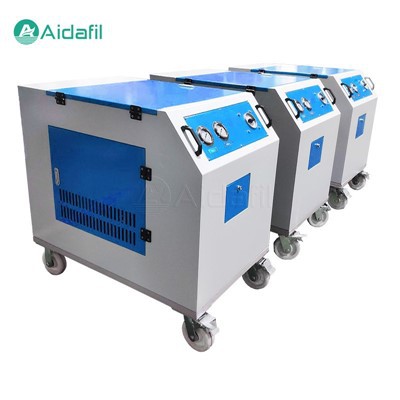

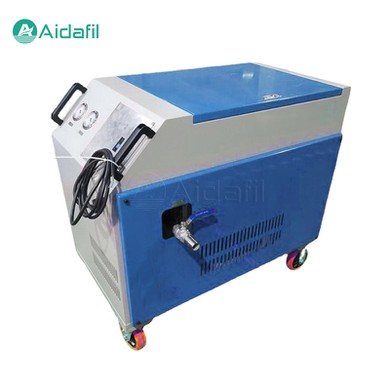

Good-Efficiency Movable Box-Type Oil Filter Machine

The good-efficiency movable box-type oil filter machine seeks to remove impurities and contaminants from oils used in various industries including the automobile, aviation, marine, and manufacturing industries. This efficient filtration system is highly versatile and can filter a wide range of oils including hydraulic oil, transformer oil, turbine oil, lubricating oil, and many more.



The oil filter machine features a compact, box-like structure made from high-quality materials. Its modular design allows for easy disassembly, maintenance, and cleaning, while its compact footprint makes it suitable for use in confined spaces or where workspace optimization is crucial.



One of the most notable features of the good-efficiency movable box-type oil filter machine is its portability. It is designed to be easily moved from one location to another, making it suitable for use in different industries and locations. This feature allows users to conveniently bring the filtration system to their work location, thus saving time and resources that would have been spent transporting the oil to the filtration system.



Technical Parameters

Flow rate : 32--100 L/MIN

Rated pressure : 0.6 Mpa

Pressure loss : 0.01 Mpa

Coarse filtration : 100 um

Grade 1 filtration : 10--40 um

Grade 2 filtration : 3--10 um

Operating temperature : 5--80 °C

Oil viscosity : 10-160 cSt

Voltage : AC380V 50HZ

Motor power : 0.75--2.2 Kw



Design and Components

The good-efficiency movable box-type oil filter machine is designed with user-friendliness and efficiency in mind. It is equipped with a sturdy frame and wheels, allowing for easy movement across different workspaces. The machine consists of several key components, including:

- Filter Housing. This is where the oil is stored and filtered. It is designed to accommodate a specific type of filter element, which is responsible for trapping impurities and contaminants present in the oil.

- Filter Element. The filter element is the heart of the machine, as it is responsible for the actual filtration process. It is made of a fine mesh material that captures particles such as metal shavings, dust, and other debris that can cause damage to machinery.

- Pump. The pump is used to circulate the oil through the filter housing. It ensures a consistent flow of oil, allowing for efficient filtration.

- Control Panel. The control panel is equipped with buttons and switches that allow the operator to control the machine's functions. It may also include indicators for monitoring the filtration process, such as pressure gauges and alarms for low oil levels.

- Collection Container. This is where the filtered oil is collected after the filtration process. It is usually removable for easy emptying and disposal of the waste material.



Filtration Process

The filtration process of the good-efficiency movable box-type oil filter machine is relatively straightforward and involves the following steps:

1. Oil Collection. The machine is positioned near the machinery or equipment from which the oil needs to be filtered. The oil is then drained into the collection container of the machine.

2. Pumping. Once the oil is collected, the pump circulates it through the filter housing. The oil is pressurized to force it through the filter element, trapping impurities as it passes through.

3. Filtration. As the oil passes through the filter element, the fine mesh captures contaminants, ensuring that only clean oil is returned to the machinery or equipment.

4. Collection. The filtered oil is collected in the collection container, ready for reuse or disposal according to industry standards and regulations.

5. Cleaning and Maintenance. After the filtration process is complete, the filter element may need to be cleaned or replaced, depending on the level of contamination. This ensures that the machine remains efficient and effective in future filtration cycles.



Application

The Good-Efficiency Movable Box-Type Oil Filter Machine finds extensive use across various industries, including:

1. Manufacturing and Industrial Plants. For maintaining hydraulic systems, gearboxes, compressors, and other oil-lubricated machinery, ensuring optimal equipment performance and minimizing costly downtime due to oil-related issues.

2. Commercial Facilities. In HVAC systems, elevators, and generators, where regular oil filtration and maintenance are crucial for energy efficiency and longevity.

3. Automotive Workshops. For filtering engine oils, transmission fluids, and hydraulic oils in vehicles, reducing wear on critical components and improving overall vehicle performance.

4. Power Generation and Marine Industries. For maintaining turbine oils, transformer oils, and marine propulsion systems, ensuring reliability and compliance with stringent environmental regulations.



FAQ

1. What is an oil purifier, and how does it work?

An oil purifier is a device designed to remove impurities and contaminants from used oil, making it suitable for reuse or safe disposal. It works by passing the oil through various filtering elements, which trap the particles and impurities while allowing clean oil to pass through.

2. What types of oils can be filtered using an oil purifier?

Oil purifiers can be used to filter various types of oils, including the transformer oil, turbine oil, lubricating oil, hydraulic oil.

3. Can I dispose of the filtered oil safely?

Yes, once the oil has been filtered, it can be disposed of safely, provided that it meets the local regulations and guidelines for waste oil disposal. Be sure to check with your local authorities or waste management companies to determine the proper procedures for disposing of filtered oil in your area.

4. Is it cost-effective to invest in an oil purifier?

Investing in an oil purifier can be cost-effective in the long run, as it allows you to reuse filtered oil, reducing the need for frequent oil changes and the associated costs. Moreover, maintaining clean oil helps extend the life of equipment and reduces the likelihood of costly repairs due to premature wear and tear.
