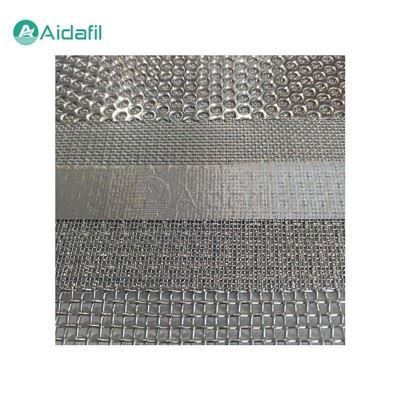

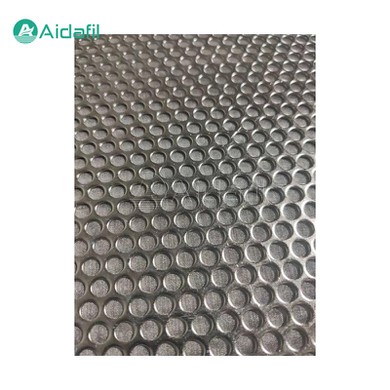

Stable Structure Perforated Plate Composite Sintered Mesh

The stable structure perforated plate composite sintered mesh is a filter material that combines perforated plate and sintered mesh technology. It combines the advantages of both and overcomes the shortcomings of some single materials. Perforated plate has high strength and rigidity, good impact resistance and corrosion resistance, while sintered mesh has high porosity and filtration efficiency.



Perforated plate composite sintered mesh combines perforated plate and sintered mesh through a special composite process to give it better performance and scope of use. This product is widely used in chemical, petroleum, environmental protection, food, medicine and other industries, and can be used for filtration and separation of liquids, gases and powders.



Characteristics of perforated plate

Perforated plate is a metal plate. The holes on the plate are punched out by a punching machine to form holes of a certain size and shape. Perforated plate has the following characteristics:

1. High strength and high rigidity. During the manufacturing process of the perforated plate, the plate is hardened to give it high strength and rigidity. This enables the perforated plate to withstand large loads and impacts.

2. Impact resistance and corrosion resistance. The surface of the perforated plate can be galvanized, sprayed, etc. to improve its impact resistance and corrosion resistance. This enables the perforated plate to adapt to harsh working environments.

3. Customizability. The hole size, shape and distribution of the perforated plate can be customized according to customer needs to meet the application needs of different occasions.



Characteristics of sintered mesh

Sintered mesh has the following characteristics:

1. High porosity. Sintered mesh has high filtration efficiency during filtration.

2. Uniform pore distribution. The pore distribution of the sintered mesh is uniform, which helps to improve the filtration effect and reduce the leakage of particulate matter.

3. Good permeability. The pore structure of the sintered mesh makes it have good permeability, which is conducive to the passage of fluid.

4. Wear resistance. The material of the sintered mesh has high hardness and wear resistance, which makes it have a longer service life during the filtration process.



Manufacturing process of perforated plate composite sintered mesh

The manufacturing process of the stable structure perforated plate composite sintered mesh is to combine perforated plate and sintered mesh through a special composite process. The specific process flow is as follows:

1. Select suitable perforated plate and sintered mesh materials, and determine the size, shape and distribution of holes according to customer needs.

2. Fit the sintered mesh to the surface of the perforated plate, and make the sintered mesh and the perforated plate tightly combined through high temperature heating and pressure.

3. After cooling and post-processing, remove excess materials to form a perforated plate composite sintered mesh.



Parameters

Nominal precision (μm)	Absolute precision (μm)	Gases permeability (L/min · dm2 · kPa)	Bubbling pressure (pa)
1	6-7	180	5300-6000
2	8-9	240	4300-5000
5	11-13	260	3000-3700
10	16-18	310	2700-3300
15	24-26	350	2000-2600
20	28-32	450	1800-2300
25	34-36	620	1400-1900
30	40-45	690	1200-1700
40	50-55	720	1000-1500
50	71-80	850	900-1200
70	89-95	900	700-1100
100	110-120	1080	650-1000
150	180-200	2600	550-800
200	260-280	2800	450-600



Application fields

The stable structure perforated plate composite sintered mesh is widely used in many industrial fields, especially in the filtration and separation industry. The following are some of the main application areas:

1. Chemical industry: used for filtration and separation of fluids, purification of chemical products, recovery of particulate matter, etc.

2. Petroleum industry: used for filtration and separation of oil products to improve oil quality and cleanliness.

3. Environmental protection industry: used for filtration and separation of particulate matter in waste gas and wastewater to reduce environmental pollution.

4. Food industry: used for filtration and separation of food to ensure food safety and hygiene.

5. Pharmaceutical industry: used for filtration and separation of drugs to ensure the purity of drugs.



Advantages

1. Efficient filtration. The stable structure perforated plate composite sintered mesh has a high filtration efficiency and can effectively filter tiny particles and suspended matter.

2. High strength and good rigidity. The high strength and high rigidity of the perforated plate enable the composite sintered mesh to withstand large loads and impacts.

3. Impact resistance and corrosion resistance. The impact resistance and corrosion resistance of the composite sintered mesh enable it to adapt to harsh working environments.

4. A wide range of applications. The perforated plate composite sintered mesh can be used for the filtration and separation of liquids, gases and powders, and is suitable for chemical, petroleum, environmental protection, food, medicine and other industries.

5. Customizability. The hole size, shape and distribution of the perforated plate composite sintered mesh can be customized according to customer needs.
