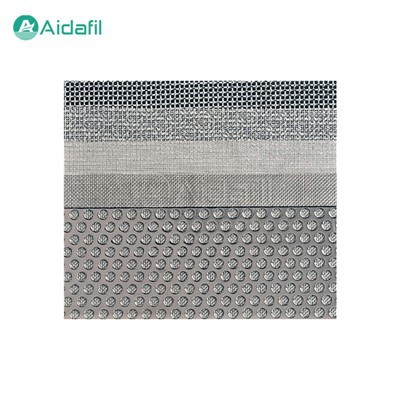

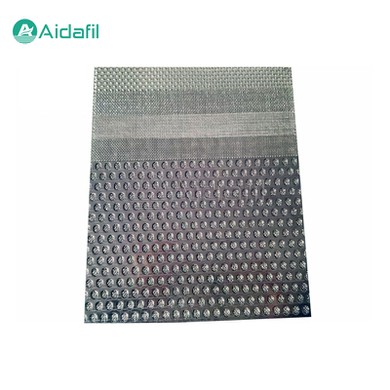

Round Hole Perforated Sheet Sintered Mesh

The round hole perforated sheet sintered mesh is an innovative filter material, which combines the mechanical strength of perforated sheet and the fine filtration characteristics of sintered mesh, and shows unique performance advantages.



Composition and structure

1. Perforated sheet

The perforated sheet is usually made of a metal sheet through a punching process, and it is covered with regularly arranged round holes. These holes provide a channel for the passage of fluid, and also provide a certain support and stability for the entire composite structure.

2. Sintered mesh

The sintered mesh is made of multi-layer metal wire mesh sintered at high temperature. It has extremely small mesh holes for high-precision filtration.

The combination of the two forms a solid and highly filtered whole.



Main features

1. High-precision filtration

Due to the fine structure of the sintered mesh, it can effectively intercept tiny particles and impurities, ensuring that the filtration effect meets a high standard.

2. High strength

The perforated sheet endows the composite sintered mesh with good mechanical strength, enabling it to withstand greater pressure and impact and maintain stability in harsh working environments.

3. Good stability

After a special sintering process, its structure is stable, the mesh is not easily deformed, and it can still maintain reliable filtration performance after long-term use.

4. Strong corrosion resistance

It can be made of a variety of corrosion-resistant metal materials to meet the filtration requirements of various corrosive media.

5. Easy to clean

Its surface is relatively smooth, impurities are not easy to adhere, and it is also more convenient when it needs to be cleaned. It can be reused to reduce costs.



Manufacturing process

1. Material selection

Carefully selecting suitable perforated sheets and sintered mesh materials to ensure quality and performance.

2. Composite process

The perforated sheet and the sintered mesh are tightly combined through a specific process to ensure the firmness of the bonding.

3. Sintering treatment

Perform a rigorous sintering operation to fuse the two together to form a stable structure.



Parameters

Nominal precision (μm)	Absolute precision (μm)	Gases permeability (L/min · dm2 · kPa)	Bubbling pressure (pa)
1	6-7	180	5300-6000
2	8-9	240	4300-5000
5	11-13	260	3000-3700
10	16-18	310	2700-3300
15	24-26	350	2000-2600
20	28-32	450	1800-2300
25	34-36	620	1400-1900
30	40-45	690	1200-1700
40	50-55	720	1000-1500
50	71-80	850	900-1200
70	89-95	900	700-1100
100	110-120	1080	650-1000
150	180-200	2600	550-800
200	260-280	2800	450-600



Application field

1. Petrochemical industry

The round hole perforated sheet sintered mesh is used for oil filtration and purification to ensure the smooth progress of the production process.

2. Pharmaceutical industry

To ensure the purity of the liquid medicine and meet strict pharmaceutical production standards.

3. Food and beverage industry

Filter out impurities and contaminants to ensure the safety and quality of food and beverages.

4. Environmental protection

Play an important role in wastewater treatment and waste gas treatment.

5. Machinery manufacturing industry

Provide a clean working medium for various equipment.



Advantages

1. Strong comprehensive performance

The round hole perforated sheet sintered mesh has the dual advantages of high-strength and high-precision filtration.

2. Wide adaptability

It is capable of adapting to the filtration requirements of different industries and media.

3.Economic and practical

Long service life, easy cleaning and other characteristics make it cost-effective.

4. Outstanding innovation

It represents the innovative development direction in the field of filter materials.



Ways to ensure filtration stability

1. Correct selection

According to the specific application requirements, choose the appropriate aperture, material, and specification of the perforated sheet sintered mesh to ensure that it can adapt to the characteristics of the treated fluid and impurities.

2. Check regularly

Regularly check the surface condition of the sintered mesh to see if there is any blockage, damage, etc., and detect and deal with problems in a timely manner.

3. Cleaning and maintenance

Clean according to the correct method and cycle to remove accumulated impurities, keep the mesh unobstructed, and avoid damage to the sintered mesh.

4. Control fluid conditions

Ensure that the flow rate, temperature, pressure, etc. of the fluid are within a reasonable range to avoid excessive impact on the sintered mesh or affecting its performance.

5. Installation specifications

Ensure the correct installation method, so that the perforated sheet composite sintered mesh is firmly installed and well sealed to prevent bypass or leakage from affecting the filtration effect.

6. Monitor metrics before and after filtering

Regularly check the relevant indicators of the fluid before and after filtration, such as particulate matter content, to evaluate whether the filtration effect is stable.

7. Environmental management

Control the cleanliness and impurity content of the surrounding environment to reduce the interference of external factors on the filtration effect.
