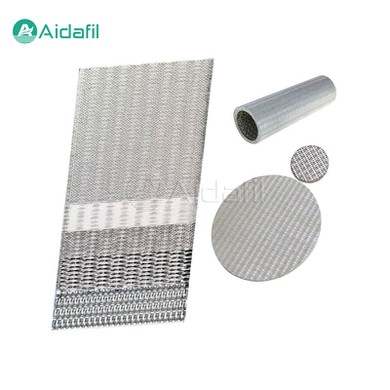

High Temperature And Corrosion Resistance Five-Layer Sintered Wire Mesh

The high temperature and corrosion resistance five-layer sintered wire mesh is made by stacking five layers of stainless steel wire mesh of different specifications in a specific order and going through a series of processes such as high-temperature sintering. Its structure is distinct, usually including a thicker support layer and a fine filter layer. The production process requires strict requirements to ensure that the layers are closely combined to form a strong and stable whole.



The high temperature and corrosion resistance five-layer sintered wire mesh consists of four parts: protective layer, filter layer, dispersion layer and skeleton layer. Among them, the protective layer and skeleton layer mainly play a supporting and protective role, the filter layer is the key part to realize the filtration function, and the dispersion layer helps to improve the filtration efficiency and uniformity.



The high temperature and corrosion resistance five-layer sintered wire mesh possesses reliable filtration performance from 1 micron to 200 microns. It is able to exert uniform surface filtration performance on filtration particle sizes of 1-200μm. Due to the support of the fourth and fifth layers, it is inherently high in pressure resistance and mechanical strength. Owing to the use of surface filter materials, it is easy to clean, especially suitable for backwashing.



Main Features

1. High filtration accuracy

It can effectively intercept tiny particles and achieve accurate filtration effects, meeting various scenarios with high filtration requirements.

2. Good stability

The close connection between the layers and the characteristics of the material itself enable it to maintain stable performance during use, and the filtration accuracy will not be easily changed.

3. High strength and pressure resistance

Due to its robust structural design, it can withstand high pressure and external forces, and can operate reliably in complex working environments.

4. Excellent corrosion resistance

Stainless steel material endows it with excellent corrosion resistance, capable of adapting to a variety of corrosive media environments and prolonging service life.

5. Easy to clean and renewable

The characteristics of surface filtration make it easy to clean, and its filtration performance can be restored through appropriate cleaning methods, achieving renewable utilization to a certain extent.

6. High temperature resistance

It can operate normally in a higher temperature environment and adapt to the requirements of some high-temperature operating conditions.



Parameters

Model number	Nominal precision (μm)	Absolute precision (μm)	Gases permeability (L/min · dm2 · kPa)	Bubbling pressure (pa)
ADBSW1	1	6-7	180	5300-6000
ADBSW2	2	8-9	240	4300-5000
ADBSW5	5	11-13	260	3000-3700
ADBSW10	10	16-18	310	2700-3300
ADBSW15	15	24-26	350	2000-2600
ADBSW20	20	28-32	450	1800-2300
ADBSW25	25	34-36	620	1400-1900
ADBSW30	30	40-45	690	1200-1700
ADBSW40	40	50-55	720	1000-1500
ADBSW50	50	71-80	850	900-1200
ADBSW70	70	89-95	900	700-1100
ADBSW100	100	110-120	1080	650-1000
ADBSW150	150	180-200	2600	550-800
ADBSW200	200	260-280	2800	450-600



Application Field

1. Chemical industry

It is used for filtration and separation of various chemical fluids to ensure the purity and safety of the production process.

2. Oil and gas

In the process of oil extraction, refining and transportation, it plays a key role in filtering impurities and protecting equipment.

3. Environmental protection

It plays an important role in wastewater treatment, waste gas treatment, and other aspects to help remove pollutants.

4. Food and beverages

It is used to ensure the quality and safety of food and beverages and prevent impurities from entering products.

5. Pharmaceutical industry

It is used to guarantee the purity requirements during the production of medicines to avoid contamination affecting the quality of medicines.

6. Machinery manufacturing

It is used for filtration of hydraulic systems, lubrication systems, etc., to protect the normal operation of key components.



Performance Advantage

1. Wide scope of application

No matter in the chemical, petroleum, metallurgical and other industrial fields, or in the food, medicine and other industries with high hygiene requirements, it can play an important role.

2. Long-term reliable operation

Its high quality and stable performance ensure that it does not require frequent replacement and maintenance during long-term use, reducing the cost of use and maintenance.

3. Environmentally friendly

It effectively filters out harmful substances, reducing environmental pollution, and at the same time, its recyclability is also in line with the concept of environmental protection.

4. Efficient filtration efficiency

It can quickly and effectively separate impurities and target substances, improving production efficiency and work quality.



Quality Control

In the production process, strict quality control is essential. From the selection of raw materials to the monitoring of various process links, it is necessary to ensure that high standards of quality are met. Stringent inspections and tests are carried out on finished products, including filtration accuracy tests, strength tests, corrosion resistance tests, etc., to ensure that the quality and performance of products meet the needs and expectations of customers.
