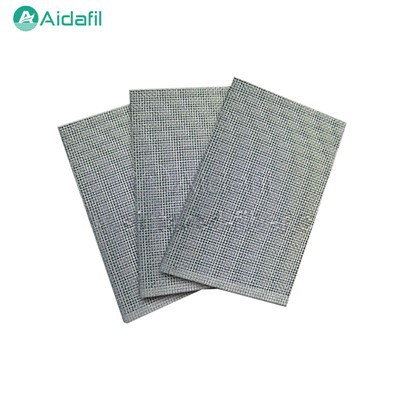

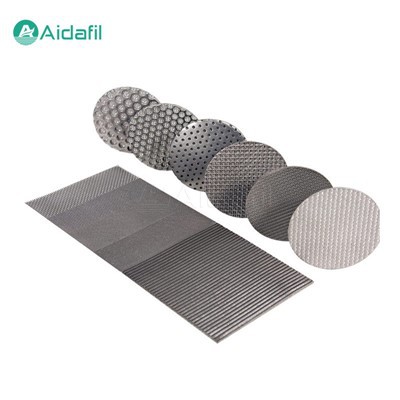

High Strength Multi-Layer Sintered Wire Mesh

The high strength multi-layer sintered wire mesh is a new type of filter material made of multi-layer metal woven wire mesh through special lamination pressing and vacuum sintering processes. It has high mechanical strength and overall rigid structure, and the mesh holes of each layer of wire mesh are staggered to form a uniform and ideal filter structure.



Structure

From a structural point of view, the mesh of each layer of wire mesh is staggered with each other, as if to build an intricate but orderly three-dimensional network. This structural design brings many benefits. First, it ensures the accuracy and uniformity of filtration. No matter where the fluid passes through, a consistent filtration effect can be obtained, and there will be no local filtration differences. Secondly, this staggered mesh structure increases the mechanical strength and rigidity of the entire material. It enables it to withstand external forces such as greater pressure, impact and stretching, and maintains stable performance in various harsh working environments.



Material

In terms of materials, high-quality metals such as stainless steel are usually selected. Stainless steel has excellent corrosion resistance and can adapt to the filtration requirements of a variety of corrosive media. Whether it is acidic, alkaline or other corrosive environments, the high strength multi-layer sintered wire mesh can work stably and reliably. At the same time, stainless steel also has good heat resistance and can work in high temperature environments for a long time without significant performance degradation. This makes the multi-layer sintered wire mesh suitable for applications with a wide temperature span, from low temperature environments to working conditions of several hundred degrees or even higher temperatures.



Filtration performance

The filtration performance of the high strength multi-layer sintered wire mesh is excellent. Its filtration accuracy can reach a very high level, which can effectively intercept tiny particles, impurities and even nanometer-level substances. Moreover, this filtration accuracy is evenly distributed over the entire filtration area, and there will be no situation where the filtration effect is good in some areas and poor in some areas. This is crucial for some applications with extremely high filtration requirements, such as the electronics industry, fine chemicals and other fields. In addition, it also has good air permeability, which can ensure the filtration effect while minimizing the resistance of fluid passage and improving the filtration efficiency.



Application

In the application field, the applicability of high strength multi-layer sintered wire mesh is extremely wide.

In the petrochemical industry, it is used for the filtration of various liquids and gases to ensure the purity of fluids in the production process and prevent impurities from causing damage to equipment and processes.

In the pharmaceutical industry, the filtration requirements in the production process of medicines are very strict. The multi-layer sintered wire mesh can provide reliable filtration guarantee to ensure the quality and safety of medicines.

In the food and beverage industry, it can be used to filter various liquids, such as beverages, alcohol, etc., to ensure the taste and quality of products.

In the field of environmental protection, it is used for the filtration treatment of sewage, waste gas, etc., and plays an important role in protecting the environment.

In the aerospace field, its high strength and high reliability make it an ideal choice for filtration devices in key components.

In the automotive industry, it can also play an important role in the filtration of engine oil and fuel.



Parameters

Nominal precision (μm)	Absolute precision (μm)	Gases permeability (L/min · dm2 · kPa)	Bubbling pressure (pa)
1	6-7	180	5300-6000
2	8-9	240	4300-5000
5	11-13	260	3000-3700
10	16-18	310	2700-3300
15	24-26	350	2000-2600
20	28-32	450	1800-2300
25	34-36	620	1400-1900
30	40-45	690	1200-1700
40	50-55	720	1000-1500
50	71-80	850	900-1200
70	89-95	900	700-1100
100	110-120	1080	650-1000
150	180-200	2600	550-800
200	260-280	2800	450-600
