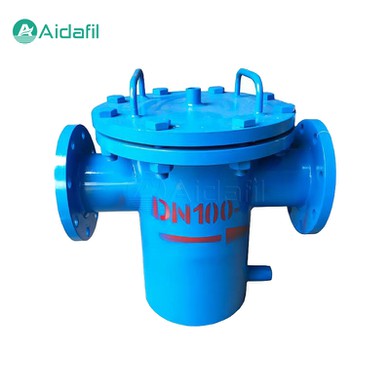

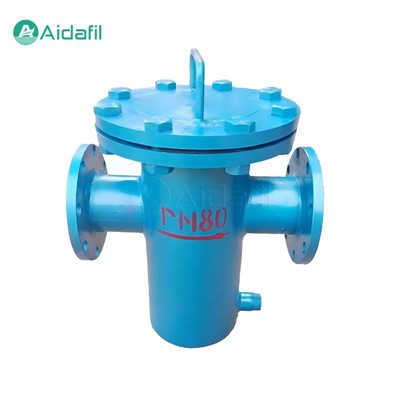

Low Cost Simple Basket Filter

The low cost simple basket filter is a commonly used mechanical filtration equipment used to remove suspended particles, impurities and contaminants from liquids. Its working principle is that when the liquid flows through the basket filter, the suspended particles and impurities are trapped by the mesh of the basket, while the clean liquid flows out through the mesh of the basket. The low cost simple basket filter is widely used in water treatment, petroleum processing, chemical production, food processing, pharmaceutical manufacturing and other industries.



Parameters

Material of housing	Cast iron, carbon steel	Stainless steel
Material of strainers	Stainless steel
Material of seal components	Oil-resistant asbestos, flexible graphite, PTFE
Working temperature	-30 ~ +380°C	-80 ~ +450°C
Filtration precision	10 ~ 300 meshes
Nominal pressure	0.6 ~ 6.4 Mpa (150Lb ~ 300Lb)
Connection	Flange, welding



Structural composition

The main components of a low cost simple basket filter include:

1. Basket. The basket is the core component of the basket filter and is usually made of metal material. The mesh size and shape of the basket can be designed and manufactured according to different filtration requirements. Common basket materials include stainless steel, carbon steel, aluminum alloy, etc.

2. Screen. The screen is the filter element of the basket filter, which is responsible for trapping suspended particles and impurities. The mesh size and shape of the screen can be designed and manufactured according to different filtration requirements. Common screen materials include stainless steel mesh, carbon steel mesh, nylon mesh, etc.

3. Bracket. The bracket is the support structure of the basket filter and is responsible for fixing the position of the basket and screen. The material of the bracket is usually metal.

4. Inlet port. The inlet port is the inlet of the basket filter, and the liquid flows into the basket filter through the inlet port.

5. Outlet port. The outlet port is the outlet of the basket filter, and the clean liquid flows out of the basket filter through the outlet.



Working principle

The working principle of the low cost simple basket filter is that when the liquid flows through the basket filter, suspended particles and impurities are trapped by the mesh of the basket, while the clean liquid flows out through the mesh of the basket. The specific working process is as follows:

The liquid flows into the inlet of the basket filter and flows into the inside of the basket filter through the mesh of the basket.

Suspended particles and impurities are trapped by the mesh of the basket and cannot flow out through the mesh of the basket.

The clean liquid flows out through the mesh of the basket and into the liquid outlet.

The clean liquid flows out of the basket filter from the liquid outlet to achieve the purpose of filtration.



Advantage

The advantages of the low cost simple basket filters include:

1. Simple structure. The structure of the basket filter is simple, compact, and easy to install and maintain.

2. Lower cost. The cost of basket filters is lower, making them suitable for small and medium-sized businesses and individuals.

3. Wide range of applications. Basket filters are suitable for water treatment, petroleum processing, chemical production, food processing, pharmaceutical manufacturing and other industries.

4. High filtration accuracy. Basket filters can achieve high-precision filtration, meeting the filtration requirements of different industries.

5. Easy to clean. The basket and screen of the basket filter can be easily cleaned and replaced, extending the service life of the equipment.



Application field

The low cost simple basket filter is widely used in the following fields:

1. Water treatment. Basket filters are used to remove suspended particles, impurities, and contaminants from water to produce clean water and drinking water.

2. Petroleum processing. Basket filters are used to remove suspended particles, impurities, and contaminants from petroleum to produce clean petroleum and petroleum products.

3. Chemical production. Basket filters are used to remove suspended particles, impurities, and contaminants from chemical raw materials to produce clean chemical products.

4. Food processing. Basket filters are used to remove suspended particles, impurities, and contaminants from food to produce clean food and beverages.

5. Pharmaceutical manufacturing. Basket filters are used to remove suspended particles, impurities, and contaminants from pharmaceutical raw materials to produce clean pharmaceutical products.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
