Long Service Life Titanium Rod Filter

As a kind of high-performance filtration equipment, titanium rod filter plays an important role in industrial production and scientific research. Its corrosion resistance, high temperature resistance, high mechanical strength and other characteristics enable it to adapt to a variety of harsh working environments, while its advantages of high filtration accuracy and reproducible use bring good economic benefits to users.

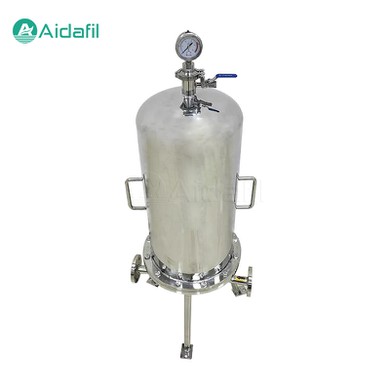

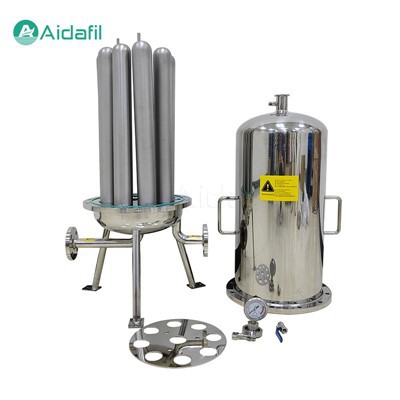

The long service life titanium rod filter is mainly composed of the filter cylinder, titanium rod filter elements and inlet and outlet pipeline. Among them, the titanium rod filter element is its core component, which is sintered from titanium powder and has a uniform microporous structure.



The fluid to be filtered enters the filter cylinder through the inlet, and when it passes through the titanium rod filter element, the impurities are trapped, and the pure fluid flows out through the micropores of the filter element and is discharged from the outlet. The filtration accuracy mainly depends on the pore size of the filter element, which can be selected according to actual needs.



Characteristics and advantages

1. Excellent corrosion resistance

Titanium itself has excellent corrosion resistance and can resist the erosion of a variety of corrosive media, such as acids, alkalis, salts, etc., which allows the titanium rod filter to operate stably in harsh working environments.

2. High temperature resistance

It can operate at higher temperatures and adapt to some high-temperature process conditions.

3. High mechanical strength

The filter element has high mechanical strength, is not easily damaged, and can withstand large pressure and flow fluctuations.

4. Reusable and easy to regenerate

Through appropriate cleaning methods, such as backwashing, pickling, alkali washing, etc., the filter element can be restored to good filtration performance, prolong service life, and reduce operating costs.

5. High filtration accuracy

It can effectively trap tiny impurity particles and ensure the filtration effect.



Application field

1. Pharmaceutical industry

In the pharmaceutical process, it is used for filtration and sterilization of pharmaceutical liquids to ensure the quality and safety of medicines.

2. Food industry

It can be used for the clarification and filtration of food and beverages to remove impurities and microorganisms.

3. Chemical industry

Filter chemical raw materials and products to ensure the smooth progress of the production process and product quality.

4. Electronics industry

It is used for filtration of high-purity liquids to meet the high-purity requirements of the electronics industry.

5. Environmental protection industry

Play a role in wastewater treatment, waste gas treatment, etc. to remove pollutants.



Parameters

Main materials	Stainless Steel 304, 316L
Filtering flow	3 - 100 t/h
Working pressure	0.1 - 0.6Mpa
Filter element specification	5'', 10'', 20'', 30'', 40''
Use temperature	-10 - 200°C
Filtering accuracy	0.45 - 100μm
Filter element connection	M20, M30, 222, 226
Titanium rod size	Φ60×300, Φ60×510, Φ60×750, Φ60×1000



Precautions for the use of titanium rod filters

1. Installation and operation specifications

Install the filter correctly to ensure that the pipeline is tightly connected and avoid leakage. Strictly follow the operating procedures during operation, and control the pressure, flow and other parameters.

2. Maintenance and replacement of filter elements

Regularly check the status of the filter element and clean or replace it in time. According to the actual use situation, reasonably determine the replacement cycle of the filter element.

3. Prevent blockage and damage

Avoid large particles of impurities entering the filter to avoid clogging or damage to the filter element.

4. Selection of cleaning methods

Choose the appropriate cleaning method according to the contamination of the filter element, such as water recoil, pickling, alkali washing, etc., and pay attention to the concentration of the cleaning solution and the control of the cleaning time.

5. Safe operation

Pay attention to safety during operation to avoid accidents.



With the continuous improvement of product quality and process requirements in various industries, the demand for high-efficiency filtration equipment is also growing. Titanium rod filters have broad prospects in future development due to their excellent performance and wide applicability. On the one hand, the continuous progress of technology will further improve the performance and quality of titanium rod filters, making them play a better role in more complex working conditions; on the other hand, with the continuous expansion of the application field, titanium rod filters will be applied and developed in more new fields.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
