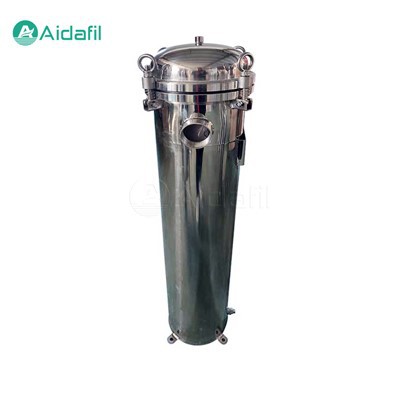

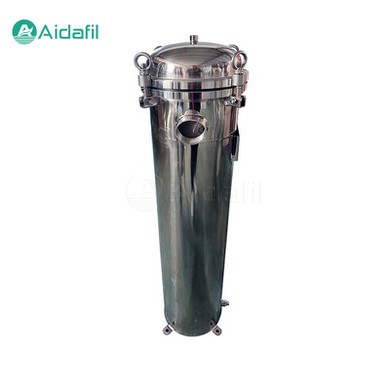

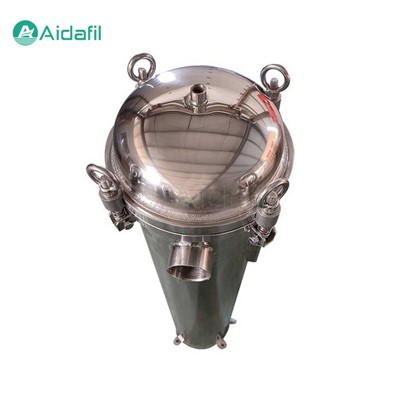

Liquid Filtration Use Side-Inlet Bag Filter

The liquid filtration use side-inlet bag filter is suitable for precision filtration of liquids. Its inlet and outlet are designed with side in and bottom out. The liquid to be filtered enters through the inlet of the filter, flows through the filter bag, and flows out from the outlet of the filter after being intercepted by the filter bag.



The liquid filtration use side-inlet bag filter is mainly composed of the following key components: filter housing, filter bag, inlet and outlet pipes, support baskets, etc. These components work together to ensure the smooth progress of the filtration process.



The filter bag is the core of the liquid filtration use side-inlet bag filter. It is usually made of porous and loose materials such as polypropylene, nylon, polyester or PTFE. The pore size of these materials directly determines the filtration accuracy. The filter bag is fixed in a support basket made of metal to form a stable filter unit. The design of the support basket ensures that the filter bag retains its shape when subjected to liquid pressure, preventing the filter bag from collapsing or breaking.



Specifications

Flange standard	HG, GB, SH, HGJ, J8, ANSI, JIS
Connections	Thread, Flange, Clamp
Drain outlet specification	1/4
Filtering precision	0.5 - 800 μm
Design pressure	0.6 - 1.0 Mpa
Design temperature	90°C for PP filter bag, 130°C for PE filter bag, 240°C for PTFE filter bag
Surface treatment	Sand blasting, polishing
Housing material	20#, 304, 316L, 2205/2507, titanium
Sealing gasket material	Silica gel, NBR, PTFE
Filter bag material	Polyester, polypropylene, nylon, PTFE, glass fiber



Working principle

When the liquid to be filtered enters the inside of the filter through the inlet of the filter, it will first pass through the pre-filter (if any) for preliminary filtration, and then enter the filter bag area. In the filter bag area, the liquid will flow through multiple side-by-side filter bags, which are made of special filter materials and have extremely high filtration accuracy. The filter bag is able to intercept suspended solids, particulate impurities, microorganisms, etc. in the liquid, allowing only clear liquids to pass through. After interception by the filter bag, the liquid will flow out from the outlet of the filter to complete the entire filtration process.



Features

1. High-efficiency filtration --- The bag filter uses a high-quality filter bag as the filter medium, which can achieve high-efficiency filtration effect, effectively remove various impurities in the liquid, and ensure the purity of the liquid.

2. Convenient maintenance --- The maintenance of the bag filter is very simple, just replace the filter bag regularly. The process of replacing the filter bag is fast and convenient, and does not require professional tools and technicians.

3. Flexible application --- The bag filter can choose the right filter bag according to different filtration needs, with strong adaptability. At the same time, the filter design is compact, with a small footprint, making it easy to install and move.

4. Long life --- Bag filters are made of high-quality materials, providing good durability and stability.

5. Environmental protection and energy saving --- The bag filter does not generate harmful substances and noise during operation, meeting environmental protection requirements. At the same time, due to its high-efficiency filtration performance, it can reduce energy consumption and water waste.



Application

1. Chemical industry --- It can be used for filtering and refining chemical raw materials and products, removing impurities and suspended solids, and improving product quality.

2. Pharmaceutical industry --- It can be used for raw material filtration, product refining, and wastewater treatment in the pharmaceutical production process to ensure drug safety and effectiveness.

3. Food and beverage industry --- It can be used for the filtration and purification of food raw materials and beverage water to ensure the hygiene and taste of food and beverages.

4. Water treatment industry --- It can be used for the treatment of tap water, industrial water, and wastewater to remove harmful substances such as suspended solids, bacteria, and viruses from water.

5. Other industries --- It can also be applied to liquid filtration and refining in petroleum, coatings, paints, inks, and other industries.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
