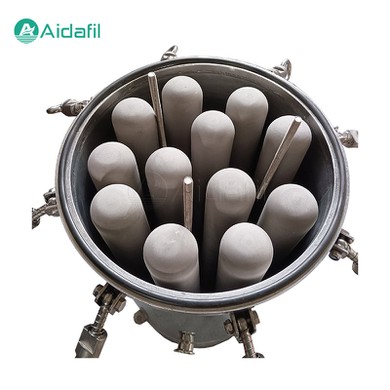

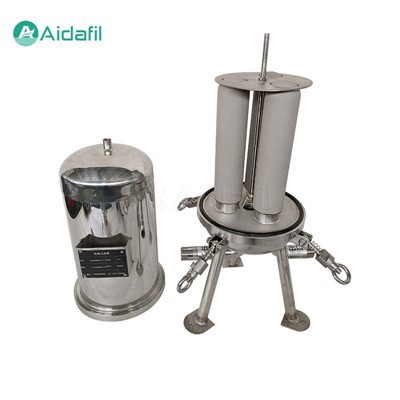

Excellent Design Titanium Rod Filter

The excellent design titanium rod filter is a filter using titanium powder sintered filter element, which is usually used for coarse filtration or intermediate filtration. This filter has the advantages of high precision, high temperature resistance, corrosion resistance, high mechanical strength and long working life, and is widely used in food and beverage, water treatment, chemical industry, metallurgy, light industry, shipbuilding, medicine and other industries.



The working principle of a titanium rod filter is mainly to filter through a titanium powder sintered filter element. This filter element is made of titanium powder by sintering at high temperature, forming a microporous structure that can effectively intercept various solid particles and colloidal substances. When the liquid passes through this filter element, impurities are trapped on the surface or inside of the filter element, while the clean liquid flows out through the micropores.



Key Parameters

Filtration accuracy : 0.45 - 100μm

Filter flow : 3 - 100m³/h

Joint of filter elements : M20,M30,222,226

Working temperature : -10 - 200°C

Working pressure : 0.1 - 0.6Mpa



Features

The material of our excellent design titanium rod filter has a variety of significant characteristics, including the following:

1. High temperature resistance:

Titanium material can remain stable in high-temperature environments, which allows the titanium rod filter to be used under high-temperature conditions.

2. Corrosion resistance:

Both pure titanium and titanium alloys have good acid and alkali corrosion resistance, making them suitable for handling corrosive fluids, such as in chemical, marine and other fields.

3. Mechanical strength:

Titanium rod filters have high mechanical strength, can withstand filtration and filtration operations, and are not easily deformed or damaged.

4. Chemical stability:

Due to its stable chemical properties, titanium materials are not susceptible to chemical reactions with filter media, making them suitable for use in a wide range of pH environments.

5. Aperture distribution:

The titanium filter has a uniform and narrow pore size, which helps to improve the separation efficiency and effectively remove solid particles and impurities.

6. Anti-microbial ability:

Titanium materials do not easily interact with microorganisms and are suitable for applications in bioengineering and medicine.

7. No secondary pollution:

During the filtration process, no particles will be shed, ensuring that the stock solution does not generate secondary pollution due to the filtration process.

8. Renewable and easy to clean:

The titanium rod filter can be regenerated online, making it easy to clean and has a long service life.



Application

The application scenarios of our excellent design titanium rod filters are very extensive, mainly including the following areas:

1. Pharmaceutical industry. In the pharmaceutical process, titanium rod filters are used for the filtration of large infusions and the sterile filtration of small doses of drugs to ensure the purity and safety of drugs.

2. Water treatment industry. Titanium rod filters play a key role in the water treatment process, removing solid particles and impurities from water and improving water quality.

3. Food industry. In food processing, titanium rod filters can be used to filter and purify liquids to ensure the hygiene and quality of food.

4. Bioengineering. In the field of biotechnology, titanium rod filters are used for the filtration of cell culture media and biological products to maintain the high activity and purity of the product.

5. Chemical and petrochemical industries. In these industries, titanium rod filters are used to handle high-temperature or highly corrosive fluids, such as chemical feedstocks and petroleum products.

6. Metallurgical industry. In the process of metal smelting, titanium rod filters are used to purify gases, remove harmful components, and protect the environment.

7. Gas purification field. Titanium rod filters can also be used to purify air or other gases to remove particulates and pollutants.

The following points need to be noted during the operation of the titanium rod filter:

1. Prevent the filter from running under overpressure to avoid damage to the filter element and housing.

2. Regularly clean the filter element to maintain the filtration effect.

3. Pay attention to the maintenance of the sealing device to ensure that the filter leakage rate is low.

4. During the shutdown of the titanium rod filter, the feed valve should be closed first, and then the discharge valve should be closed to prevent the medium from flowing back.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
