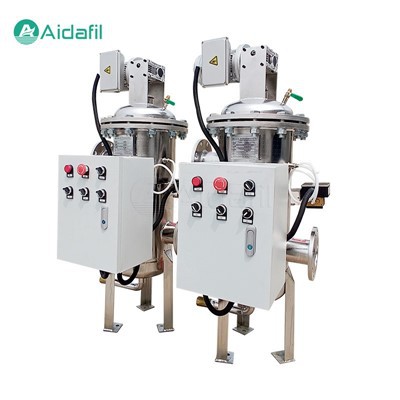

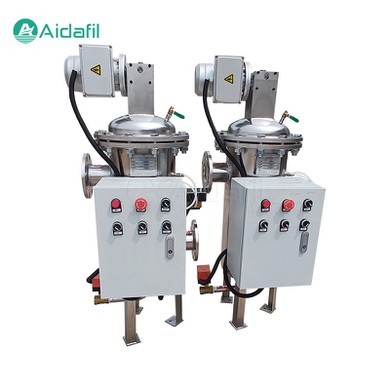

Continuous-Operation Automatic Self-Cleaning Filter

The Continuous-Operation Automatic Self-Cleaning Filter serves as an efficient and intelligent water treatment equipment. It is mainly used to remove impurities such as suspended solids, particles and microorganisms in water to purify water quality and protect other equipment in the system from working normally. It has functions such as automatic identification, automatic cleaning, and automatic sewage discharge, which realizes the fully automated operation of the filter and greatly reduces the complexity and labor intensity of manual operation.



The working principle of the automatic self-cleaning filter is mainly to use the filter screen to directly intercept the impurities in the water, so as to achieve the purpose of purifying the water quality. When the water flows through the filter screen, the impurities are intercepted on the surface of the filter screen, and the impurities such as particles and suspended solids in the water gradually increase, resulting in a decrease in the filtration effect of the filter. At this time, the intelligence system of the automatic self-cleaning filter will automatically identify the degree of impurity deposition, send a signal to the sewage valve, and start the automatic cleaning and sewage process.



The main components of an automatic self-cleaning filter include: filter screen, housing, drive device, sewage discharge device, control system, etc. The filter screen is the core component of the filter, which is used to intercept impurities in the water. The housing is used to accommodate the filter screen and other components and play a protective role. The drive device is used to drive the filter screen cleaning to remove impurities on the surface of the filter screen. The sewage discharge device is used to discharge the cleaned impurities from the filter. The control system is responsible for the automatic operation of the entire filter, including automatic identification, automatic cleaning, automatic sewage discharge and other functions.



Parameters

Maximum flow	20-3000m3/h
Minimum working pressure	0.2MPa(g)
Maximum working pressure	1.6MPa(g)
Inlet & outlet diameter	DN50-DN700
Maximum operating temperature	80°C
Filtration accuracy	10-3000μm
Filter mesh	304, 316L stainless steel
Filter housing	Carbon steel / 304, 316L stainless steel
Motor power	0.37-1.1KW
Voltage	380V 50Hz three-phase
Cleaning flow	<1% of total flow
Cleaning time	15 sec (adjustable)
Cleaning differential pressure	0.5kg/cm2 (adjustable)



Structural features

The Continuous-Operation Automatic Self-Cleaning Filter has the following structural features:

1. Integrated design. The automatic self-cleaning filter integrates filtration, cleaning, sewage and other functions into one, with a compact structure and a small footprint.

2. Automatic control. The automatic self-cleaning filter adopts an intelligent control system, which can realize the automatic operation of filtration, cleaning, sewage discharge and other functions, reducing the intensity of manual operation.

3. Efficient cleaning. The automatic self-cleaning filter is cleaned with a high-pressure water pump, which has good cleaning effect and fast cleaning speed, ensuring that the filter can resume normal operation in a short time.

4. Energy saving and environmental protection. The automatic self-cleaning filter adopts a water circulation system, which can recycle cleaning water resources and reduce water consumption.

5. Strong adaptability. The automatic self-cleaning filter is suitable for various liquid filtration occasions and can adapt to different viscosity, temperature, pressure and other conditions.



Application

The Continuous-Operation Automatic Self-Cleaning Filter is widely used in the following fields:

1. Water treatment. In the fields of urban water supply, wastewater treatment, and industrial water use, the automatic self-cleaning filter can effectively remove suspended solids, sediment, microorganisms, and other impurities from water to ensure water quality safety.

2. Chemical industry. In the chemical production process, the automatic self-cleaning filter can remove solid particles from liquids, prevent equipment clogging, and improve production efficiency.

3. Food. In the food processing industry, the automated self-cleaning filter can effectively remove impurities from liquids, ensuring the hygiene and safety of food.

4. Medicine. In the pharmaceutical production process, the automatic self-cleaning filter can remove solid particles from liquids to ensure the quality of medicines.

5. Environmental protection. With the help of the automatic self-cleaning filter, industrial wastewater, waste liquids, etc. can be effectively treated to achieve environmental protection goals.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
