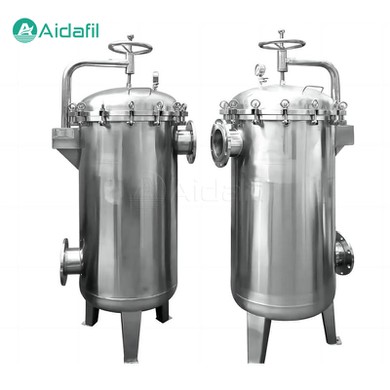

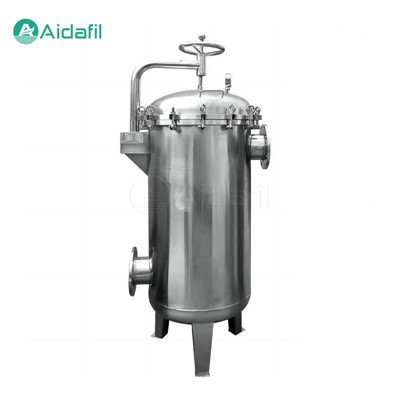

Beautiful Appearance High Flow Bag Filter

The beautiful appearance high flow bag filter is an efficient and well-designed filtration equipment, which is widely used in various industrial fields for processing large-volume fluids and providing efficient filtration performance. Its unique design and structure make it not only powerful, but also beautiful in appearance, meeting the dual requirements of modern industry for equipment performance and appearance.

Parameters

Flange standard	HG, GB, SH, HGJ, J8, ANSI, JIS
Connections	Thread, Flange, Clamp
Drain outlet specification	1/4
Filtering precision	0.5 - 800 μm
Design pressure	0.6 - 1.0 Mpa
Design temperature	90°C for PP filter bag, 130°C for PE filter bag, 240°C for PTFE filter bag
Surface treatment	Sand blasting, polishing
Housing material	20#, 304, 316L, 2205/2507, titanium
Sealing gasket material	Silica gel, NBR, PTFE
Filter bag material	Polyester, polypropylene, nylon, PTFE, glass fiber

Design Features

1. Structural rationality and operational flexibility

The design of the beautiful appearance high flow bag filter pays attention to the rationality of the structure and the flexibility of operation. Its compact structure design not only saves space, but also ensures the stability of the filter under various working conditions. At the same time, the operation of the filter is very simple, and users can easily replace and maintain the filter bag, which greatly reduces the difficulty of operation and maintenance costs.

2. Energy-saving and efficient

The beautiful appearance high flow bag filter adopts advanced energy-saving technology, which can ensure the filtration effect while minimizing energy consumption. Its high-efficiency filtration performance ensures that a large amount of fluid can be processed in a short time, improving production efficiency.

3. Multi-purpose and adaptability

The versatile design of the beautiful appearance high flow bag filter allows it to adapt to a variety of different filtration needs. Whether it is water, oil, chemicals or other industrial liquids, this filter is able to provide an effective filtration solution. In addition, its strong adaptability allows it to operate stably in a variety of harsh working environments.

Structural advantages

1. Top-entry and side-entry structures

The beautiful appearance high flow bag filter provides two structural forms of top-in and side-in to meet the needs of different installation spaces and operating habits. Both structural forms have been carefully designed to ensure the efficiency and reliability of the filter.

2. Smooth treatment of inner and outer walls

In order to facilitate cleaning and reduce filtration residue, the inner and outer walls of the beautiful appearance high flow bag filter have been specially polished. This treatment not only makes the appearance of the filter more beautiful, but also helps to improve the filtration efficiency and prolong the service life of the filter bag.

Material selection --- High-quality stainless steel material

The sleeves of beautiful appearance high flow bag filters are made of high-quality SUS304 or SUS316L stainless steel materials. These materials have good corrosion resistance and high temperature resistance, ensuring long-term stable operation of the filter in harsh environments.

Convenience of operation --- Quick replacement of filter bag

The design of the beautiful appearance high flow bag filter fully considers the user's convenience of operation. The process of changing the filter bag is very simple, and the user can complete the replacement of the filter bag in a short time without complicated tools or professional skills. This design of quick replacement filter bags not only improves work efficiency, but also reduces equipment downtime.

Application Scope --- Wide range of applicability

Due to its high efficiency, energy saving, versatility and adaptability, beautiful appearance high flow bag filters are widely used in various industrial fields. Whether it is water treatment, petrochemical, food and beverage, or pharmaceutical manufacturing, the filter can provide reliable filtration solutions.

FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
